Specifications

• Door
  • T1SF Door Tint Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models : T4F Door Tint Neutral door tint in light smoke finish for moderate energy savings
  • T3F Door Tint Reflective door tint in light blue finish for medium energy savings : T2F Door Tint Tinted door in reflective deep blue finish with high energy savings
• Exterior
  • KEY Extra keys available for purchase : LHD Door reversal to left hand swing
• Overview
  • Width: 23.63" (60 cm)
  • Depth: 26.63" (68 cm)
  • Depth with Handle: 27.75" (70 cm)
  • Depth with door at 90°: 48.75" (124 cm)
  • Capacity: 15.9 cu.ft. (450 L)
  • Bottles: 160 bottles
  • Defrost Type: Automatic
  • Door: Glass
  • Cabinet: Black
  • Amps: 1.7
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 187.0 lbs. (85 kg)
  • Shipping Weight: 220.0 lbs. (100 kg)
  • Compressor Warranty: 5 Years
  • Height of Cabinet: 69.75" (177 cm)
  • Parts & Labor Warranty: 1 Year
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
• Wine Cellar
  • Number of Zones: 2
  • Interior Light: Yes
  • Refrigerant Type: R600a
  • Low Side PSI: 105.0
  • Interior Width 1: 19.75" (50 cm)
  • Shelf Type: Wood
  • Shelf Qty: 14
  • Fan Type: Interior and Exterior
  • Interior Height 1: 29.5" (75 cm)
  • Interior Depth 1: 21.0" (53 cm)
  • Compressor Step Height: 3.75" (10 cm)
  • Interior Width 2: 19.75" (50 cm)
  • Interior Depth 2: 21.0" (53 cm)
  • Refrigerant Amount: 1.91 oz.
  • High Side PSI: 270.0
  • Compressor Step Width: 19.75" (50 cm)
  • Temperature Range: 41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
  • Interior Height 2: 31.0" (79 cm)
  • Door Swing: RHD
  • Reversible: Yes
  • Thermostat Type: Digital
  • Compressor Step Depth: 5.5" (14 cm)

Description

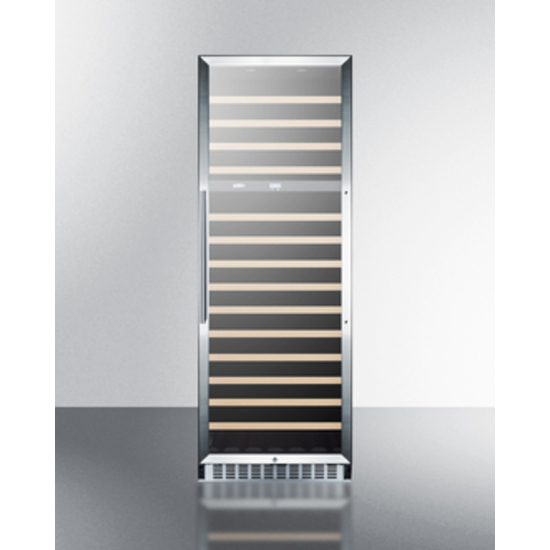

24-inch built-in wine cellar with a 15.9 Cu.Ft/160 bottle capacity, providing ample storage for a large wine collection.

Equipped with 14 wooden slide-out shelves for easy access and organization of wine bottles.

Dual temperature zones, ideal for storing both red and white wines at their optimal temperatures.

Digital thermostat for precise temperature control, ensuring your wine is stored at the ideal conditions.

High-temperature alarm alerts you if the internal temperature exceeds safe storage levels.

Open door alarm notifies you if the door is left open, helping to maintain the desired temperature.

Temperature memory function retains your settings in the event of a power outage, ensuring consistency.

Factory-installed lock for added security and peace of mind.

Automatic defrost function helps to prevent frost buildup, keeping the unit running efficiently.

Sleek black cabinet with a right hinge, adding a stylish and modern touch to your home or wine room.

Features

• Large capacity: Interior can hold up to 160 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 118. For champagne, the interior can hold 22 bottles (plus an additional 132 of the standard Bordeaux style)
• Double pane tempered glass door: Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
• Two temperature zones: Lower zone is ideal for storing red wine (temperature range: 55ºF to 72ºF) while the upper zone accommodates white and sparkling wine stored between 41ºF and 55ºF
• Digital thermostats: Set and adjust two temperature zones separately with easy-to-use digital controls with an LED display in Celsius or Fahrenheit
• LED lighting: Recessed lighting offers an elegant, efficient view of your collection
• Slide-out wooden shelves: 14 wooden shelves offer proper storage
• Factory installed lock: Keyed lock for trusted security
• Reversible door: User-reversible door swing allows for more flexibility in placing the unit
• Fully finished black cabinet: Allows the unit to be used freestanding
• Professional handle: Stainless steel handle completes the professional look
• Automatic defrost: Reduced user maintenance with auto defrost operation
• Modified built-in use: Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation
• High temperature alarm: Audible alarm sounds if the storage temperature rises out of recommended range
• Open door alarm: Alarm sounds if the door is left open for more than 60 seconds
• Temperature Memory Function: Unit will retain its last settings when power is restored in the event of power loss
• Sabbath Mode: Optional setting lets you disable the lighting and alarm for up to 96 hours
• Stainless steel kickplate: Sleek look with added protection
• 100% CFC free: Environmentally safe operation with no ozone-damaging chemicals
