Specifications

• APPEARANCE
  • Exterior Design : Contoured Doors
  • Textured Steel Case : Case Only - Dark Gray
  • Door Swing : Hinges on Left & Right
  • Color Appearance : Fingerprint Resistant Black Stainless
  • Handle Design : Designer Style
  • Hidden Door Hinge(s) : Yes
  • Handle Color : Black Stainless
  • Dispenser Color : Stainless Steel
  • Case Color : Black
  • Counter-Depth Design : Yes
  • Door Stops : Yes
• CAPACITY
  • Fresh Food Capacity : 14.92 cu ft
  • Freezer Capacity : 7.16 cu ft
  • Total Capacity (cubic feet) : 22.1 cu ft
• FEATURES
  • Temperature Management System : TwinChill™ Evaporators
  • Temperature Management Features : Turbo Cool setting
  • Dispenser Features : Child Lock, Door Alarm, Hands-Free AutoFill, LED Dispenser Light, Water Filter Indicator Light
  • Control Type : External Electronic Digital Temperature Display
  • Number of Doors : 3

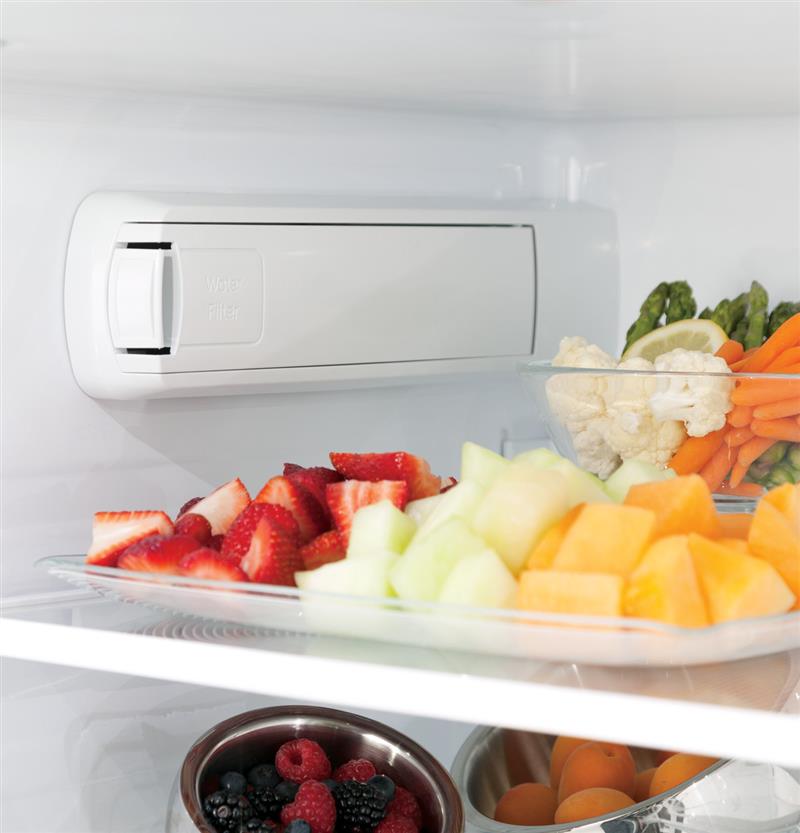

  • Filter Location : Left wall
  • Fresh Food Door Features : Dairy Compartment, Drop Down Tray
  • Leveling System : 2 Front Leveling Legs
  • Fresh Food Door Bins : 2 Adjustable, 3 with Gallon Storage, 6 Total
  • Freezer Features : Interior Lighting - LED (2), Turbo Freeze
  • Configuration : French Door
  • Refrigerant Type : R600a
  • Fresh Food Cabinet Drawers : 1 Full-Width, Adjustable Temperature Drawer, 2 Adjustable Humidity, 3 Total, Electronic Temperature Control w/ LED Lighting
  • OU Certified : OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
  • Icemaker : Optional 2nd Icemaker (IM5D) in Freezer, Space Saving Ice
  • Performance Features : Easily Removable Door Gaskets
  • Freezer Door Bins : 1 Total
  • Fresh Food Cabinet Shelves : 1 Quick Space Shelf, 3 Spill Proof, 4 Split Adjustable; 1 Full-Width, 5 Total - Glass with Silver Trim
  • WiFi Connect : Optional (Requires part no. PBX23W00Y1)
  • Sabbath Mode : Optional
  • Exterior Style : Counter-Depth
  • Door Alarm : Yes

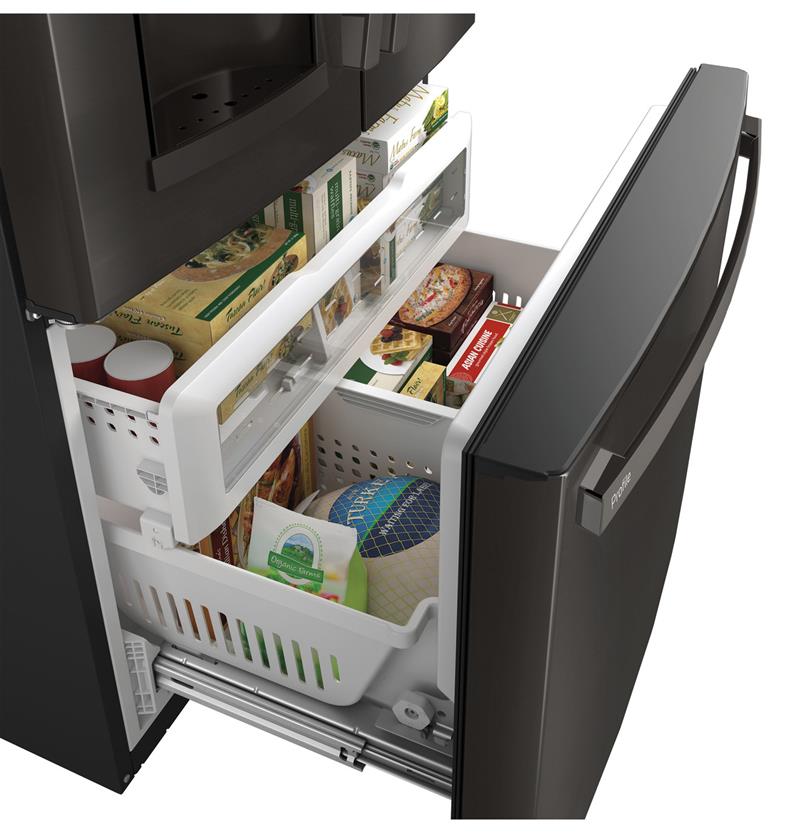

  • Freezer Storage Baskets : 2 Full-Width
  • Defrost Type : Frost Guard
  • Product Type : Bottom Freezer Refrigerator, Counter Depth Refrigerator, French-Door Refrigerator
  • Water Filtration : Advanced Filtration System, Find your filter here: https://www.geapplianceparts.com/store/parts/filter-finder, Removes Pharmaceuticals, Water Filter Indicator Light
  • Temperature Display : External Digital
  • Fresh Food Features : Showcase LED Lighting 7
  • Dispenser : Cubed Ice and Water, Large Color-Matched
• FILTER
  • App Filter - Autofill : Yes
  • App Filter - Icemaker : Yes
  • App Filter - Product Type : Refer French Door
  • App Filter - WiFi Connect : Optional
  • App Filter - Capacity : Refer Large (20-24 cu. ft.)
  • App Filter - Dispenser : Yes
  • App Filter - Hot Water : No
• POWER / RATINGS
  • Energy Consumption (kWh/year) : 665
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
• WARRANTY
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
  • Labor Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
• WEIGHTS & DIMENSIONS
  • Net Weight : 333 lb
  • Width w/Door Open 90 Degrees Incl. Handle : 44.625 in
  • Case Depth Without Door : 24.375 in
  • Top Air Clearances : 1 in
  • Side Air Clearances : 0.125 in
  • Depth Without Handle : 29.75 in
  • Height to Top of Case : 69 in
  • Overall Depth : 31.25 in
  • Height to Top of Hinge : 69.875 in
  • Back Air Clearances : 2 in
  • Approximate Shipping Weight : 363 lb
  • Overall Width : 35.75 in
  • Depth with Door Open 90° : 43.375 in
  • Overall Height : 69.875 in

Description

22.1 Cu. Ft. capacity offers ample storage for fresh and frozen foods

Counter-depth design integrates seamlessly with kitchen cabinetry for a sleek, built-in look

French-door configuration provides easy access to both the refrigerator and freezer sections

Hands-Free AutoFill feature automatically fills containers with filtered water for added convenience

Adjustable shelves and drawers allow for flexible storage options

Energy-efficient cooling technology helps maintain freshness while minimizing energy consumption

Modern design complements a variety of kitchen styles

Ideal for households seeking advanced features and space-saving solutions

Features

• Counter-depth design : Offers a built-in look by fitting nearly flush with surrounding cabinetry

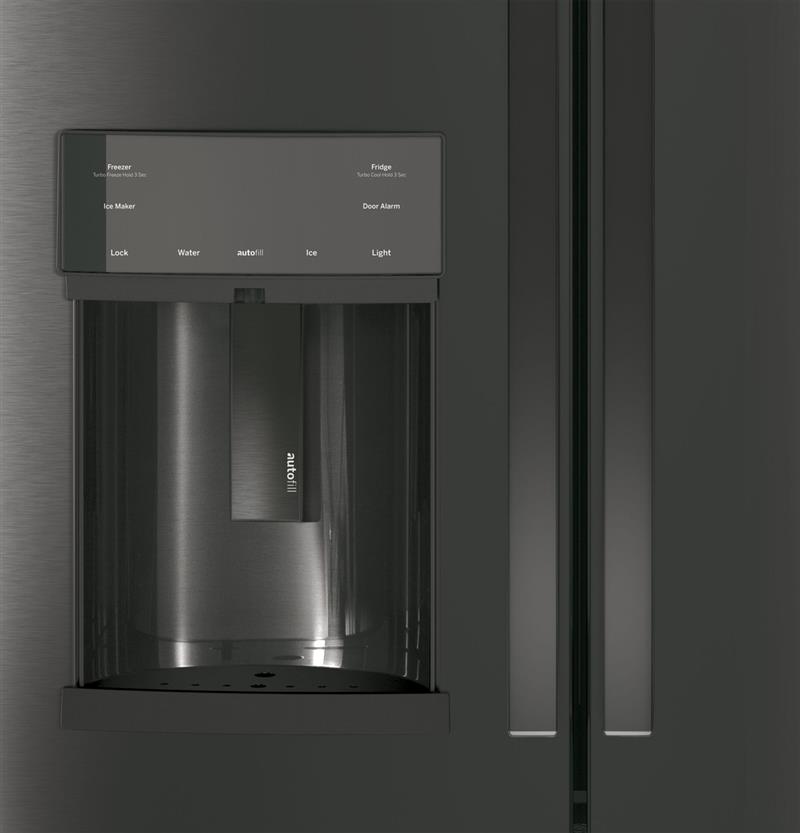

• Hands-free Autofill : Lets you walk away while the dispenser automatically fills any container with filtered water
• Full-width electronic temperature-controlled drawer with LED lights : 3 accurate settings deliver the optimal temperature for your favorite foods
• Second icemaker option : Always have extra ice on hand with an optional second icemaker in the freezer (IM5D kit sold separately)
• TwinChill™ evaporators : Separate climates in the fresh food and freezer sections help keep foods fresh
• Showcase LED lighting : Positioned throughout the interior and under fresh food doors to spotlight foods inside the refrigerator and in the freezer
• Quick Space shelf : Quickly slides out of the way to make room for tall items
• Drop-down tray : Allows for extra door storage when you need it and tucks away when you don’t
• Turbo Cool setting : Drops interior temperature to maintain freshness after frequent openings
• Enhanced Shabbos Mode : The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
