Specifications

• APPEARANCE
  • Adjustable Rollers : 2
  • Dispenser Color : Stainless Steel
  • Exterior Design : Contoured Doors
  • Handle Color : Black Stainless
  • Color Appearance : Fingerprint Resistant Black Stainless
  • Hidden Door Hinge(s) : Yes
  • Handle Design : Designer Style
  • Case Color : Black
  • Door Stops : Yes
  • Textured Steel Case : Case Only - Dark Gray
  • Door Swing : Hinges on Left & Right
• CAPACITY
  • Fresh Food Capacity : 18.5 cu ft
  • Total Capacity (cubic feet) : 27.7 cu ft
  • Freezer Capacity : 9.17 cu ft
• FEATURES
  • Temperature Management Features : Turbo Cool setting
  • Dispenser Features : Door Alarm, Hands-Free AutoFill, LED Dispenser Light, Water Filter Indicator Light
  • Control Type : External Electronic Digital Temperature Display

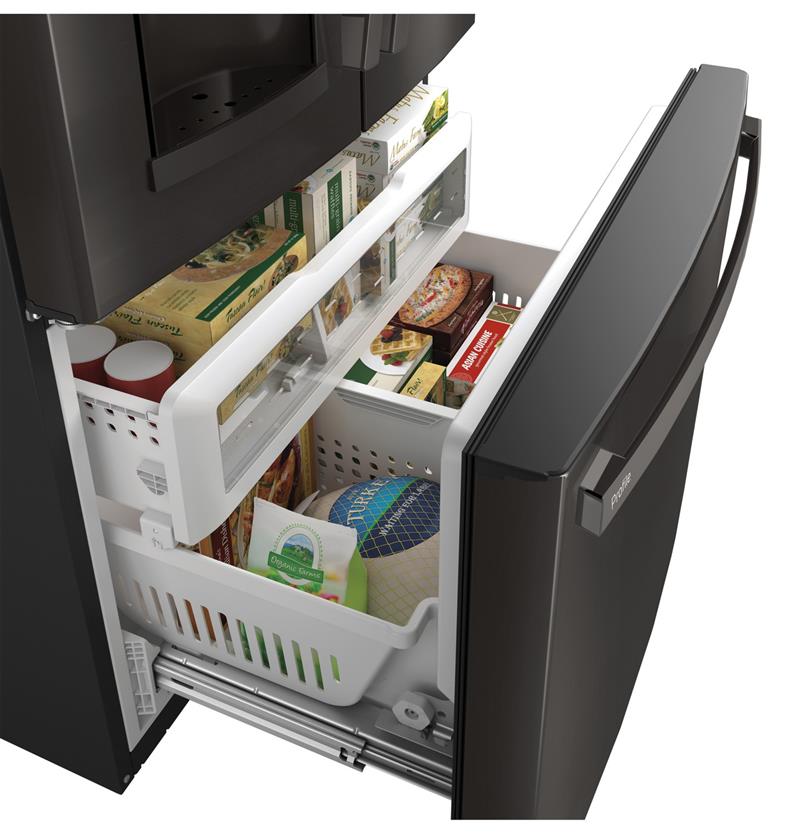

  • Freezer Storage Baskets : 2 Full-Width
  • Temperature Management System : TwinChill™ Evaporators
  • Freezer Door Bins : 1 Total
  • Defrost Type : Frost Guard
  • Fresh Food Cabinet Shelves : 1 Quick Space Shelf, 3 Spill Proof, 4 Split Adjustable; 1 Full-Width, 5 Total - Glass with Silver Trim
  • Freezer Features : Interior Lighting - LED (2)
  • Exterior Style : Free-Standing, Standard Depth
  • Temperature Display : External Digital
  • Fresh Food Features : Showcase LED Lighting 7
  • Configuration : French Door
  • Number of Doors : 3
  • Performance Features : Easily Removable Door Gaskets
  • Sabbath Mode : Optional
  • Filter Location : Left wall
  • Water Filtration : Advanced Filtration System, Find your filter here: https://www.geapplianceparts.com/store/parts/filter-finder, Removes Pharmaceuticals
  • Product Type : Bottom Freezer Refrigerator, French-Door Refrigerator
  • OU Certified : OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
  • Fresh Food Door Features : Dairy Compartment, Drop Down Tray
  • Fresh Food Door Bins : 2 Adjustable, 3 with Gallon Storage, 6 Total
  • Icemaker : Optional 2nd Icemaker (IM5D) in Freezer, Space Saving Ice
  • WiFi Connect : Optional (Requires part no. PBX23W00Y1)
  • Dispenser : Cubes, Crushed Ice and Water, Large Color-Matched
  • Fresh Food Cabinet Drawers : 1 Full-Width, Adjustable Temperature Drawer, 2 Adjustable Humidity, 3 Total, Electronic Temperature Control w/ LED Lighting
  • Door Alarm : Yes
  • Leveling System : 2 Front Leveling Legs
  • Refrigerant Type : R600a
• FILTER
  • App Filter - Autofill : Yes
  • App Filter - Product Type : Refer French Door
  • App Filter - Dispenser : Yes
  • App Filter - Hot Water : No
  • App Filter - Capacity : Refer Extra Large (25 cu. ft. and above)
  • App Filter - Icemaker : Yes
  • App Filter - WiFi Connect : Optional
• POWER / RATINGS
  • Energy Consumption (kWh/year) : 725
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
• WEIGHTS & DIMENSIONS
  • Overall Width : 35.75 in
  • Back Air Clearances : 2 in
  • Approximate Shipping Weight : 390 lb
  • Width w/Door Open 90 Degrees Incl. Handle : 44.625 in
  • Top Air Clearances : 1 in
  • Side Air Clearances : 0.125 in
  • Height to Top of Case : 69 in
  • Height to Top of Hinge : 69.875 in
  • Net Weight : 370 lb
  • Depth with Door Open 90° : 48.375 in
  • Depth Without Handle : 34.75 in
  • Overall Height : 69.875 in
  • Overall Depth : 36.25 in
  • Case Depth Without Door : 29.375 in

Description

27.7 Cu. Ft. capacity provides ample storage for both fresh and frozen foods

French-door design offers easy access to the refrigerator section and bottom freezer

Hands-Free AutoFill automatically fills containers with filtered water for added convenience

Adjustable shelves and drawers provide flexible and customizable storage options

Energy-efficient cooling technology maintains freshness while minimizing energy use

Sleek, modern design complements a variety of kitchen styles

Ideal for households seeking spacious storage, convenient water dispensing, and advanced features

Features

• Hands-free Autofill : Lets you walk away while the dispenser automatically fills any container with filtered water
• Full-width electronic temperature-controlled drawer with LED lights : 3 accurate settings deliver the optimal temperature for your favorite foods
• Second icemaker option : Always have extra ice on hand with an optional second icemaker in the freezer (IM5D kit sold separately)
• TwinChill™ evaporators : Separate climates in the fresh food and freezer sections help keep foods fresh
• Advanced Water Filtration : Reduces trace pharmaceuticals from water and ice* (* Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users’ water)
• Showcase LED lighting : Positioned throughout the interior and under fresh food doors to spotlight foods inside the refrigerator and in the freezer
• Quick Space shelf : Functions as a normal full-sized shelf when needed and easily slides down for instant storage flexibility
• Drop-down tray : Allows for extra door storage when you need it and tucks away when you don’t
• Turbo Cool setting : Drops interior temperature to maintain freshness after frequent openings
• Enhanced Shabbos Mode : The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
