Specifications

• Accessories
  • Optional Trim Kit Part Number : WOMC3TRIMSS, WOMC3TRIMDSS
  • Optional Air Fry Tray Part Number : FRIGPEREAFT
• Controls
  • Sabbath Mode : Yes
  • Control Lock : Yes
• Cooking Controls
  • Broil : Yes
  • Clock : Yes
  • Delay Start : Yes
  • My Favorite : Yes
  • Oven Light : Yes
  • Perfect Turkey : Yes
  • Quick Preheat : Yes
  • Self Clean : Yes
  • Temperature Display : Yes
  • Timed Bake : Yes
  • Timer On / Off : Yes
  • Air Sous Vide : Yes
  • Kitchen Timer : Yes
  • Light : Yes
  • Preheat : Yes
  • Probe : Yes
  • Set Clock : Yes
  • Slow Cook : Yes
  • Steam Bake : Yes
  • Cancel : Yes
  • Child Lock : Yes
  • Convection Bake : Yes
  • Fast Preheat : Yes
  • Clear Off : Yes
  • Convection Roast : Yes
  • Cook Time : Yes
  • Dehydrate : Yes
  • Keep Warm : Yes
  • Off : Yes
  • Start : Yes
  • Start Time : Yes
  • Steam Roast : Yes
  • Stop : Yes
  • Air Fry : Yes
  • Bake : Yes
  • Bake Time : Yes
  • Bread Proof : Yes
  • Delay Clean : Yes
  • User Preferences : Yes
  • No Preheat : Yes
  • Steam Clean : Yes
• Cooking Controls Function
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Delayed Bake : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes
  • Timed Cooking : Yes
• Dimensions and Volume
  • Lower Oven Interior Height : 18 1/8"
  • Lower Oven Interior Width : 25 1/5"
  • Lower Oven Interior Depth : 19 7/8"
  • Upper Oven Interior Height : 18 1/8"
  • Upper Oven Interior Width : 25 1/5"
  • Depth With Door 90° Open : 48 3/16"
  • Depth With Handle : 27 3/5"
  • Upper Oven Interior Depth : 19 7/8"
  • Minimum Cutout Height : 48 7/8"
  • Minimum Cutout Width : 28 1/2"
  • Maximum Cutout Width : 29"
  • Total Capacity : 10.6 Cu. Ft.
  • Maximum Cutout Height : 50 1/4"
  • Oven Lower Capacity : 5.3 Cu. Ft.
  • Oven Upper Capacity : 5.3 Cu. Ft.
• Display
  • Display Interface Color : White
  • Display Light Color : White
  • Display Type : Capacitive Touch
• Electrical Specifications
  • Amps @ 240 Volts : 40 Amps
  • Connected Load @ 240V : 9 kW
  • Minimum Circuit Required : 40 Amps
  • Voltage Rating : 240 V
• Exterior
  • Handle Color : Stainless Steel
  • Exterior Finish : Smudge-Proof® Black Stainless Steel
• General Specifications
  • Frigidaire Fit Promise : Yes
  • Product Weight : 260 lbs
  • AB-1200 : Information available at frigidaire.com/en/ab1200
  • Prop 65 Label : Yes
  • Warranty - Parts : 1 Year
  • Warranty - Labor : 1 Year
• Installation
  • Power Supply Connection Location : Top Left
• Oven
  • Bake Element Pass : 8
  • Bake Element Type : Hidden
  • Broil Element : 4000 Watts
  • Convection Element : 3800 Watts
  • Convection Type : Total
  • Number of Convection Fans : 1
  • Oven Light Watts : 40 Watts
  • Rack Type 1 Quantity : 5
  • Bake Element : 2500 Watts
  • Rack Position Type : Embossed
  • Rack Type 1 : Flat
  • Broil Element Pass : 6
  • Broil System : Yes
  • Cleaning System : Yes
  • Convection : Yes
  • Number of Rack Positions : 6
  • Oven Interior Color : Midnight Black
  • Oven Light Type : Halogen
  • Rack Type 2 : Glide
  • Rack Type 2 Quantity : 1
  • Oven Light Quantity : 2
• Safety Certifications and Approvals
  • UL Listed : Yes
  • CSA Listed : Yes
  • RoHS : Yes

Description

• 30-inch double electric wall oven with a spacious 10.6 cu. ft. total capacity, ideal for cooking large meals
• Air Fry function for healthier cooking with less oil, delivering crispy and delicious results
• Total Convection ensures even heat distribution for perfectly cooked dishes
• Self-cleaning function for effortless oven maintenance
• Touch screen control panel provides an intuitive and modern cooking experience
• No preheat function for faster cooking times, saving you time in the kitchen
• Steam bake option enhances baking by adding moisture for crispier, more flavorful results
• Temperature probe for precise cooking and accurate results
• Glide rack allows for easy access to dishes, even when the oven is full
• Air Sous Vide feature for precision cooking, delivering perfectly cooked meats and vegetables
• Control lock feature for added safety, especially in homes with children
• Sabbath mode for religious observances, ensuring compliance with cooking restrictions
• Star-K certified for guaranteed kosher cooking standards

Features

• Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
• Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
• Make healthier and delicious meals for your entire family - right in your oven.
• With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
• With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
• Monitors and alerts when the desired finished cooking temperature has been reached.
• We promise that your new 30" Frigidaire® Gallery double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
• Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
• Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

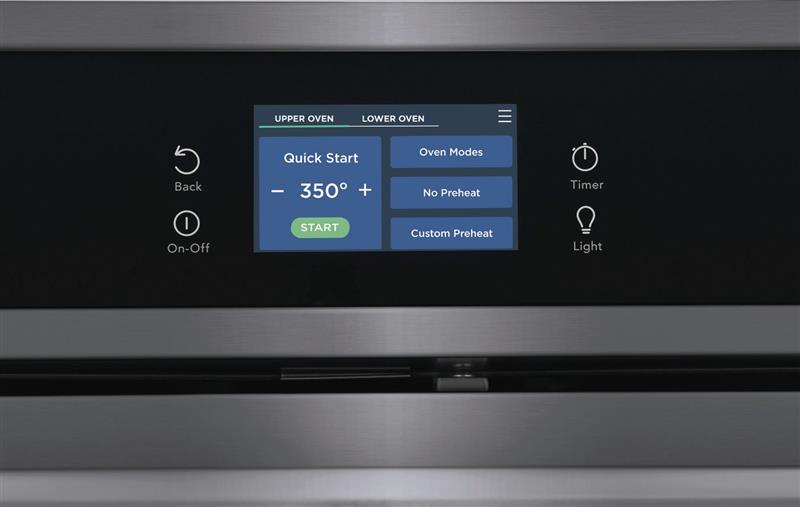

• Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
• Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
• Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
• Cook more at once with a combined 10.6 cu.ft. of oven capacity.
• Resists fingerprints and cleans easily.
• Optional ReadyCook™ Air Fry Tray allows you to achieve perfectly crispy and delicious results.
