Specifications

• Certifications and Approvals
  • UL Listed : Yes
  • Star-K Certification : Yes
• Controls
  • Sabbath Mode : Yes
  • Control Lock : Yes
• Cooking Controls
  • Broil : Yes
  • Clock : Yes
  • Convection Bake : Yes
  • Air Fry : Yes
  • Air Sous Vide : Yes
  • Convection Roast : Yes
  • Off : Yes
  • Oven Light : Yes
  • Self Clean : Yes
  • Set Clock : Yes
  • Start : Yes
  • Steam Bake : Yes
  • Steam Clean : Yes
  • Steam Roast : Yes
  • Bake : Yes
  • Bake Time : Yes
  • Delay Clean : Yes
  • Delay Start : Yes
  • Warm Zone : Yes
  • Door Lock : Yes
  • Keep Warm : Yes
  • Kitchen Timer : Yes
  • Light : Yes
  • Lockout : Yes
  • No Preheat : Yes
  • Numerical Keypad : Yes
  • Temperature Display : Yes
  • Cook Time : Yes
  • Probe : Yes
  • Slow Cook : Yes
  • Timer On / Off : Yes
  • User Preferences : Yes
• Cooking Controls Function
  • Delayed Bake : Yes
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes

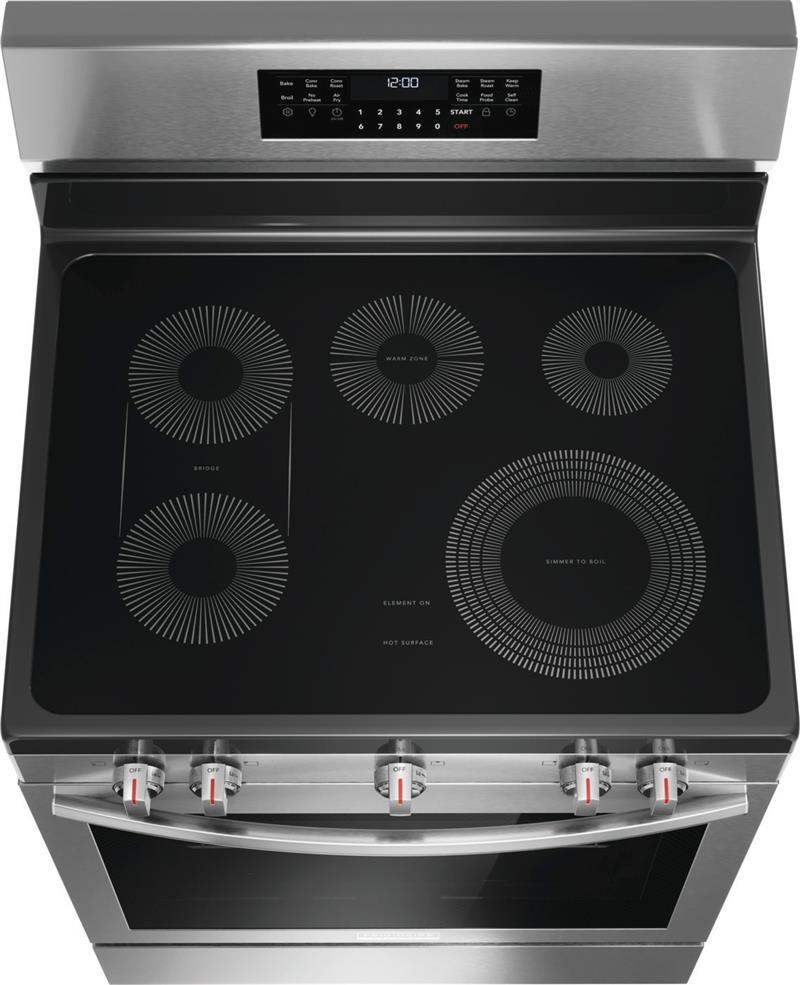

• Cooktop
  • Bridge Element : Yes
  • Bridge Element Location : Left
  • Cooking Surface Type : Smooth
  • Element On Indicator Light : Yes
  • Hot-Surface Indicator Light : Yes
• Cooktop Performance
  • Right Front Element Burner Size : 9"
  • Right Rear Element Burner Size : 6"
  • Right Front Element Burner : 3200 Watts
  • Right Rear Element Burner : 1200 Watts
  • Left Rear Element Burner : 1800 Watts
  • Center Rear Element Burner : 100 Watts
  • Keep Warm Burner Location : Center Rear
  • Left Front Element Burner : 1800 Watts
  • Left Front Element Burner Size : 7"
  • Left Rear Element Burner Size : 7"

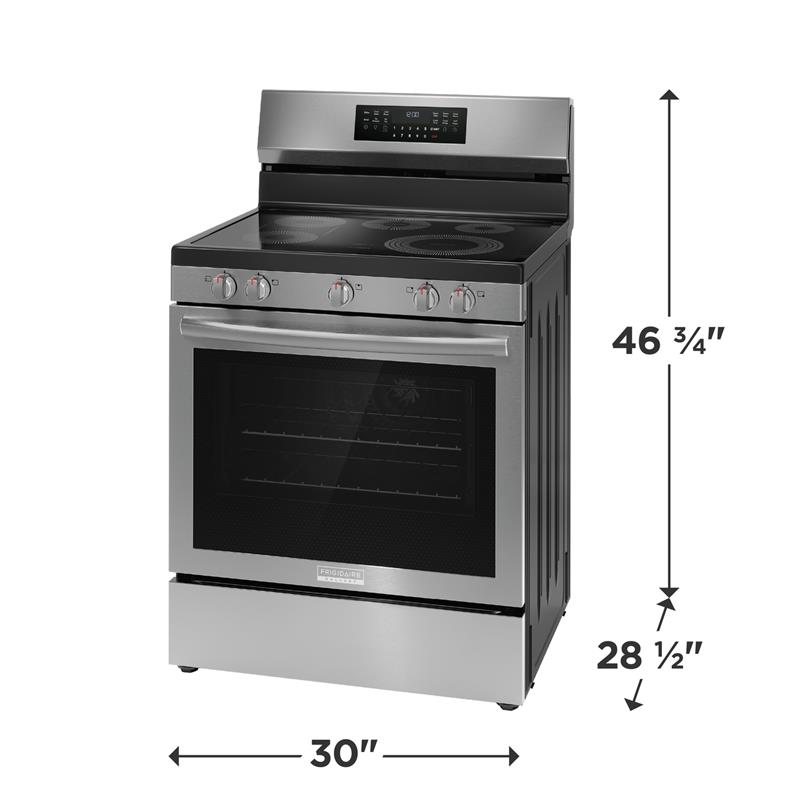

• Dimensions and Volume
  • Oven Capacity : 5.3 Cu. Ft.
  • Depth With Door 90° Open : 47 5/16"
  • Depth With Handle : 28 1/2"
  • Oven Interior Height : 18 1/8"
  • Oven Interior Width : 25 3/16"
  • Minimum Height : 46 3/4"
  • Oven Interior Depth : 19 7/8"
• Display
  • Control Location : Rear
  • Display Interface Color : White
• Drawer
  • Drawer Handle Style : Integrated
  • Drawer Type : Storage
• Electrical Specifications
  • Amps @ 240 Volts : 40 Amps
  • Connected Load @ 240V : 13 kW
  • Voltage Rating : 240 V
• Exterior
  • Exterior Finish : Smudge-Proof® Stainless Steel
• General Specifications
  • Prop 65 Label : Yes
  • Warranty - Labor : 1 Year
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at frigidaire.com/en/ab1200
  • Product Weight : 170 lbs
• Installation
  • Adjustable Leveling Legs : Yes
• Oven
  • Bake Element Pass : 8
  • Broil Element : 4000 Watts
  • Broil Element Pass : 6
  • Cleaning System : Yes
  • Convection : Yes
  • Convection Element : 3800 Watts
  • Convection Type : Total
  • Number of Convection Fans : 1
  • Oven Interior Color : Midnight Black
  • Rack Type 1 Quantity : 2
  • Number of Rack Positions : 6
  • Oven Light Quantity : 1
  • Oven Light Type : Halogen
  • Oven Light Watts : 40 Watts
  • Rack Position Type : Embossed
  • Rack Type 1 : Flat
  • Bake Element Type : Hidden
  • Bake Element : 2500 Watts

Description

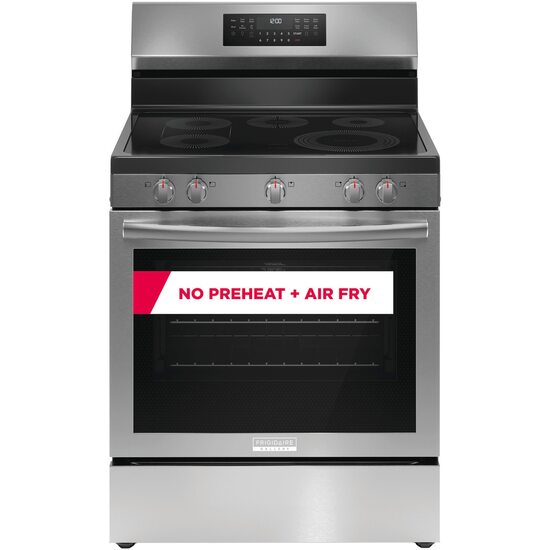

The Frigidaire Gallery 30" Rear Control Electric Range features our most powerful and advanced convection system, Total Convection, enabling so many cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake and more! The flexible five element cooktop includes a powerful 3,200 Watt EvenTemp® element and a convenient bridge element - designed to handle all of your cooking needs. Also includes our fingerprint resistant, Smudge-Proof® Stainless Steel finish.

Features

• Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide and more!
• Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
• Make healthier and delicious meals for your entire family - right in your oven.
• Designed to handle all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element and convenient Bridge Element.
• Your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
• Monitors and alerts when the desired finished cooking temperature has been reached.
• With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
• Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
• Connects two elements to create a larger cooking surface, perfect for a griddle or large pan.
• Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
• Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
• Cook more at once with our large, 5.3 cu.ft. capacity oven.
• Resists fingerprints and cleans easily.
