Specifications

• Certifications and Approvals
  • UL Listed : Yes
  • Star-K Certification : Yes
• Controls
  • Control Lock : Yes
  • Sabbath Mode : Yes
• Cooking Controls
  • Air Fry : Yes
  • Bake : Yes
  • Clock : Yes
  • Convection Bake : Yes
  • Convection Roast : Yes
  • Delay Clean : Yes
  • Keep Warm : Yes
  • Light : Yes
  • Lockout : Yes
  • Numerical Keypad : Yes
  • Off : Yes
  • Oven Light : Yes
  • Start : Yes
  • Steam Bake : Yes
  • Steam Clean : Yes
  • Steam Roast : Yes
  • Air Sous Vide : Yes
  • Temperature Display : Yes
  • Warm Zone : Yes
  • Bake Time : Yes
  • Broil : Yes
  • Cook Time : Yes
  • Delay Start : Yes
  • Door Lock : Yes
  • Kitchen Timer : Yes
  • Probe : Yes
  • Self Clean : Yes
  • Set Clock : Yes
  • Slow Cook : Yes
  • User Preferences : Yes
  • No Preheat : Yes
  • Timer On / Off : Yes
• Cooking Controls Function
  • Delayed Bake : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
• Cooktop
  • Element On Indicator Light : Yes
  • Hot-Surface Indicator Light : Yes
  • Bridge Element : Yes
  • Cooking Surface Type : Smooth
  • Bridge Element Location : Left
• Cooktop Performance
  • Right Rear Element Burner Size : 6"
  • Right Front Element Burner Size : 9"
  • Left Front Element Burner Size : 7"
  • Left Rear Element Burner Size : 7"
  • Right Front Element Burner : 3200 Watts
  • Right Rear Element Burner : 1200 Watts
  • Left Front Element Burner : 1800 Watts
  • Left Rear Element Burner : 1800 Watts
  • Keep Warm Burner Location : Center Rear
  • Center Rear Element Burner : 100 Watts
• Dimensions and Volume
  • Oven Interior Height : 18 1/8"
  • Oven Interior Depth : 19 7/8"
  • Minimum Height : 46 3/4"
  • Depth With Door 90° Open : 47 5/16"
  • Oven Interior Width : 25 3/16"
  • Depth With Handle : 28 1/2"
  • Oven Capacity : 5.3 Cu. Ft.
• Display
  • Control Location : Rear
  • Display Interface Color : White
• Drawer
  • Drawer Type : Storage
  • Drawer Handle Style : Integrated
• Electrical Specifications
  • Amps @ 240 Volts : 40 Amps
  • Voltage Rating : 240 V
  • Connected Load @ 240V : 13 kW
• Exterior
  • Exterior Finish : Smudge-Proof® Black Stainless Steel
• General Specifications
  • Product Weight : 170 lbs
  • Prop 65 Label : Yes
  • Warranty - Labor : 1 Year
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at frigidaire.com/en/ab1200
• Installation
  • Adjustable Leveling Legs : Yes
• Oven
  • Bake Element : 2500 Watts
  • Bake Element Type : Hidden
  • Cleaning System : Yes
  • Convection : Yes
  • Convection Element : 3800 Watts
  • Number of Rack Positions : 6
  • Oven Interior Color : Midnight Black
  • Oven Light Watts : 40 Watts
  • Bake Element Pass : 8
  • Broil Element Pass : 6
  • Rack Position Type : Embossed
  • Rack Type 1 : Flat
  • Broil Element : 4000 Watts
  • Convection Type : Total
  • Number of Convection Fans : 1
  • Oven Light Quantity : 1
  • Oven Light Type : Halogen
  • Rack Type 1 Quantity : 2

Description

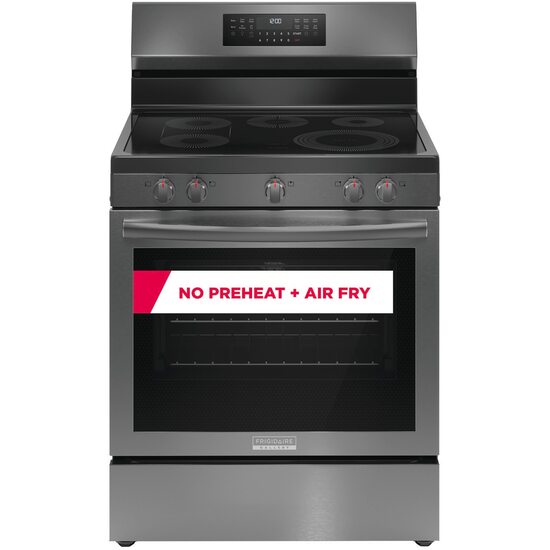

The Frigidaire Gallery 30'' Rear Control Electric Range features our most powerful and advanced convection system, Total Convection, enabling so many cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake and more! The flexible five element cooktop includes a powerful 3,200 Watt EvenTemp� element and a convenient bridge element - designed to handle all of your cooking needs. Also includes our fingerprint resistant, Smudge-Proof� Stainless Steel finish.

Features

• Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide and more!
• Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
• Make healthier and delicious meals for your entire family - right in your oven.
• Designed to handle all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element and convenient Bridge Element.
• Your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
• Monitors and alerts when the desired finished cooking temperature has been reached.
• With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
• Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
• Connects two elements to create a larger cooking surface, perfect for a griddle or large pan.
• Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
• Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
• Cook more at once with our large, 5.3 cu. ft. capacity oven.
• Resists fingerprints and cleans easily.
