Specifications

• ACCESSORIES
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Optional Kits : CXFCGHKPMBT Brushed Black, CXFCGHKPMBZ Brushed Bronze, CXFCGHKPMCG Brushed Brass, CXFCGHKPMCU Brushed Copper, CXFCGHKPMFB Flat Black, CXFCGHKPMSS Brushed Stainless
  • Trim Kit : JXFILLR1SS, Optional
  • LP Conversion Kit : Included
  • Grates : Included Center Grate
• APPEARANCE
  • Handle Design : Café
  • Cooktop Burner Grate Color : Matte Black
  • Handle Color : Brushed Bronze
  • Control Knobs : Brushed Bronze Appearance, Weighted
  • Color Appearance : Matte White
  • Handle : Consumer Removable, Customizable, Professional Style
  • Frameless Oven Door(s) : Stainless Steel
  • Oven Door Features : Big Clear View Oven Window, Matte White Frameless Oven Door
  • Installation : Flush Appearance, Free-standing cut-out, Power Cord Not Included
• CAPACITY
  • Total Capacity (cubic feet) : 7 cu ft
  • Capacity (Cu. Ft.) : 2.7 Upper / 4.3 Lower
• FEATURES
  • Cleaning Time : Variable with Delay Clean Option
  • Ignition System : Electronic w/Auto Reignition
  • Burner - Right Rear : 12,000 BTU
  • Lower Oven Features : Dual element bake
  • Oven Rack Features : 1 Self-Clean Flat Oven Rack (Upper), 2 Self-Clean Flat Oven Racks (Lower)
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Cleaning Type : Self-Clean with Steam Clean Option
  • Connected Capabilities : Amazon Alexa, DiGiorno, Fresco, IFTTT, Innit, Sonos, The Google Assistant
  • Cooktop Type : Standard Grates
  • Cooktop Burner Grate Material : Cast-Iron
  • Burner - Center : 9,500 BTU Front / 9,500 BTU Rear
  • Control Location : Front controls
  • Cooking System : True European Precise Air Reversing
  • Griddle : Included, Integrated Cast Iron
  • Control Type : Backlit, Glass Touch
  • Burner - Left Front : 21,000 BTU Tri-ring Burner
  • Configuration : Double Oven Range
  • OU Certified : No
  • Cooktop Burner Type : Sealed
  • Oven Rack Positions (Single or Upper/Lower) : 6
  • Self-Clean Oven Door Lock : Automatic
  • Grill : Integrated Cast Iron, JXCGRILL1, Optional
  • Burner - Right Front : 15,000 BTU
  • Cooktop Surface : Deep Recessed, Stainless Steel
  • Oven Interior : 2 Oven Interior Lights, Black, Hidden Bake
  • Style : Commercial
  • Dishwasher Safe Knobs : Yes
  • Leveling System : 4 Leveling Legs
  • Oven Features : 6-Pass Broil Element, 8-Pass Broil Element
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off, Auto Self Clean, Automatic Oven Timer (Time Bake), Certified Sabbath Mode, Chef Connect, Control Lock Capability, Delay Bake Option (Time Bake), Delay Clean Option, Digipad Numeric Entry, Electronic Clock and Timer, Front Controls, In-Oven Broiling, Self-Clean Cool Down Time Display, Temperature Probe
  • Product Type : Slide-In Double Oven
  • Fuel Type : 240V Electric and Natural Gas
  • Sabbath Mode : Yes
  • Cooking Technology : Traditional Upper; Convection Lower
  • Oven Cooking Modes : Baked Goods - Both Ovens, Convection Bake, Convection Roast, Frozen Pizza Multi Rack - Lower Oven, Frozen Pizza Single Rack - Lower Oven (No Preheat), Frozen Snacks Multi Rack - Lower Oven, Frozen Snacks Single Rack- Lower Oven (No Preheat), No Preheat Air Fry, Proof (Lower Oven), Warming (Both Ovens)
  • Valves (Degree of Turn) : 270
  • WiFi Connect : Built-In
  • Cooktop Burner Grate Features : Heavy-Cast Edge-to-Edge Grates
• FILTER
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Cooktop Type : Standard Grates
  • App Filter - Convection : Yes
  • App Filter - Cooking Technology : Convection, Traditional
  • App Filter - Cleaning Type : Self-Clean
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Fuel Type : Dual Fuel
  • App Filter - Tri-Ring Burner : Yes
  • App Filter - Product Type : Ranges Slide-In Double Oven
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
  • Amp Rating at 208V : 30
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0;
  • Bake Wattage : 2650W Upper / 2650W Lower
  • Volts/Hertz/Amps : 208/240V; 60Hz; 30A
  • Amp Rating at 240V : 30
  • Power Connection : Power Cord - Not Included
  • Broiler Wattage : 3000W Upper / 3600W Lower
  • Convection Wattage : 2500W
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Net Weight : 271 lb
  • Cabinet Width : 30 in
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Cabinet Opening : 30 in
  • Overall Depth : 29.5 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 10-1/8 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
  • Depth Without Handle : 26.875 in
  • Overall Height : 37.375 in
  • Height to Top of Rear Vent Trim : 37.375 in
  • Depth with Door Open : 43.875 in
  • Approximate Shipping Weight : 291 lb
  • Overall Width : 29.875 in

Description

• Product Name: 30-Inch Slide-In Dual Fuel Smart Range
• Finish: Matte White
• Cooktop:
  • Six sealed burners, including a 21K tri-ring burner for powerful and versatile cooking.
• Oven Features:
  • Double oven with a total of 6.7 cu. ft. oven capacity, ideal for large meals and multi-rack baking.
• Convenience Features:
  • Continuous grates for smooth movement of cookware across the cooktop.
  • Self-clean and steam clean options for easy oven maintenance.
• Smart Features:
  • Sabbath Mode to accommodate specific observance needs.
• Certifications:
  • CSA and ADA compliant, ensuring safety, accessibility, and reliability.

This Matte White dual fuel range offers advanced cooking capabilities and modern design, making it a versatile and efficient addition to any kitchen.

Features

• Built-In WiFi, Powered by SmartHQ App : Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details
• Personalized Features + Upgrades : Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire
• No-Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)
• Expansive six-burner cooktop helps you entertain with ease : Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favorites

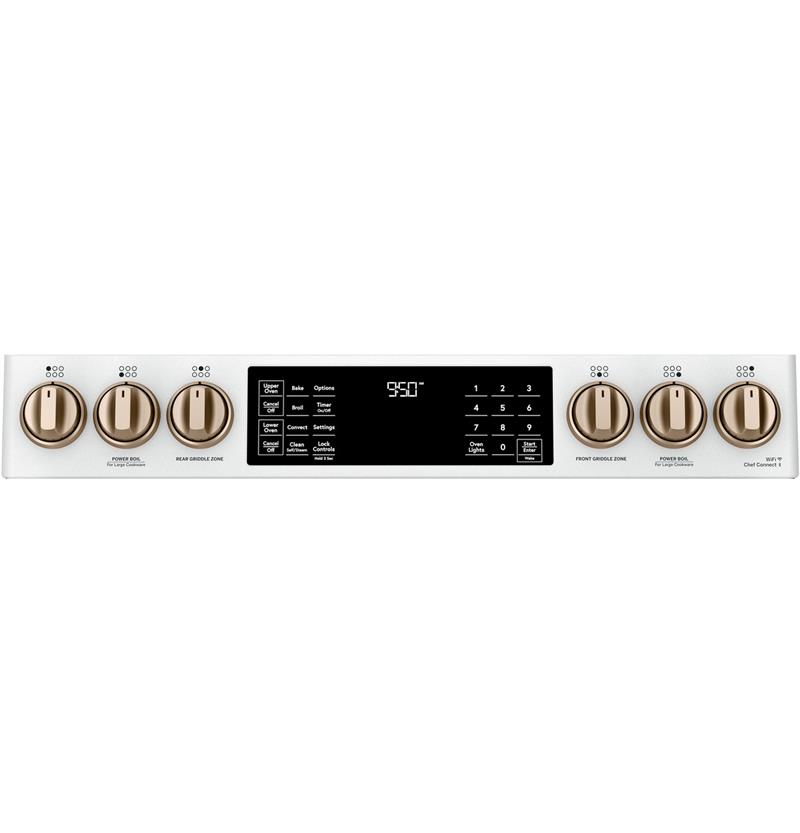

• An attractive appearance at all times : Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted
• Share favorite creations with your favorite people : Create an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pasta
• Everything you need for unforgettable results : Get the precision you need to pull off a multi-course dinner party with this 6.7 cu. ft. double oven dual fuel range, which boasts a gas-powered cooktop for precise heat control and electric True Convection with Precise Air in the oven for even baking results
• Tough racks simplify loading and unloading : Easily access everything from heavy roasts to delicate desserts with heavy duty roller racks that glide smoothly on ball bearings and can stand up to the heat of self-clean
• Create a look that matches your personal style : Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
• Allow your appliances to interact with one another : Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocks
• Prepare foods to perfect doneness : Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door
• Worry about guests, not the cooking : Confidently cook over a steady flame with the electronic ignition’s automatic reignition feature that instantly revives any accidentally extinguished flames
• Choose the range you want with total confidence : When you’re updating your kitchen, attention to detail is a priority. That’s why Café 30” slide-in ranges are guaranteed for an exact fit or Café Appliances will pay up to $300 toward modifications.
