Specifications

• ACCESSORIES
  • Optional Kits : CXFCGHKPMBT Brushed Black, CXFCGHKPMBZ Brushed Bronze, CXFCGHKPMCG Brushed Brass, CXFCGHKPMCU Brushed Copper, CXFCGHKPMFB Flat Black, CXFCGHKPMSS Brushed Stainless
  • Grates : Included Center Grate
  • LP Conversion Kit : Included
  • Trim Kit : JXFILLR1SS, Optional
  • Air Fry Basket : Optional- JXAFTRAY1VSS
• APPEARANCE
  • Oven Door Features : Big Clear View Oven Window, Stainless Steel Frameless Oven Door
  • Frameless Oven Door(s) : Stainless Steel
  • Installation : Flush Appearance, Free-standing cut-out, Power Cord Not Included
  • Control Knobs : Stainless Steel Appearance, Weighted
  • Color Appearance : Stainless Steel
  • Cooktop Burner Grate Color : Matte Black
  • Handle : Consumer Removable, Customizable, Professional Style
  • Handle Design : Café
  • Handle Color : Brushed Stainless
• CAPACITY
  • Total Capacity (cubic feet) : 7 cu ft
  • Capacity (Cu. Ft.) : 2.7 Upper / 4.3 Lower
• FEATURES
  • Cooktop Burner Grate Material : Cast-Iron
  • Fuel Type : 240V Electric and Natural Gas
  • Burner - Center : 9,500 BTU Front / 9,500 BTU Rear
  • WiFi Connect : Built-In
  • Cooking System : True European Precise Air Reversing
  • Lower Oven Features : Dual element bake
  • Oven Interior : 2 Oven Interior Lights, Black, Hidden Bake
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off, Auto Self Clean, Automatic Oven Timer (Time Bake), Certified Sabbath Mode, Chef Connect, Control Lock Capability, Delay Bake Option (Time Bake), Delay Clean Option, Digipad Numeric Entry, Electronic Clock and Timer, Front Controls, In-Oven Broiling, Self-Clean Cool Down Time Display, Temperature Probe
  • Oven Rack Features : 1 Self-Clean Flat Oven Rack (Upper), 2 Self-Clean Flat Oven Racks (Lower)
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Cleaning Type : Self-Clean with Steam Clean Option
  • Griddle : Included, Integrated Cast Iron
  • Product Type : Slide-In Double Oven
  • Style : Commercial
  • Cooktop Burner Grate Features : Heavy-Cast Edge-to-Edge Grates
  • Control Type : Backlit, Glass Touch
  • Burner - Left Front : 21,000 BTU Tri-ring Burner
  • Oven Features : 6-Pass Broil Element, 8-Pass Broil Element
  • Oven Cooking Modes : Baked Goods - Both Ovens, Convection Bake, Convection Roast, Frozen Pizza Multi Rack - Lower Oven, Frozen Pizza Single Rack - Lower Oven (No Preheat), Frozen Snacks Multi Rack - Lower Oven, Frozen Snacks Single Rack- Lower Oven (No Preheat), No Preheat Air Fry, Proof (Lower Oven), Warming (Both Ovens)
  • Burner - Right Rear : 12,000 BTU
  • Control Location : Front controls
  • Sabbath Mode : Yes
  • Leveling System : 4 Leveling Legs
  • Cooking Technology : Traditional Upper; Convection Lower
  • OU Certified : No
  • Cooktop Burner Type : Sealed
  • Grill : Integrated Cast Iron, JXCGRILL1, Optional
  • Valves (Degree of Turn) : 270
  • Burner - Right Front : 15,000 BTU
  • Cooktop Surface : Deep Recessed, Stainless Steel
  • Oven Rack Positions (Single or Upper/Lower) : 6
  • Self-Clean Oven Door Lock : Automatic
  • Cleaning Time : Variable with Delay Clean Option
  • Ignition System : Electronic w/Auto Reignition
  • Connected Capabilities : Amazon Alexa, DiGiorno, Fresco, IFTTT, Innit, Sonos, The Google Assistant
  • Cooktop Type : Standard Grates
  • Dishwasher Safe Knobs : Yes
  • Configuration : Double Oven Range
• FILTER
  • App Filter - Product Type : Ranges Slide-In Double Oven
  • App Filter - Cooking Technology : Convection, Traditional
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Cleaning Type : Self-Clean
  • App Filter - Fuel Type : Dual Fuel
  • App Filter - Convection : Yes
  • App Filter - Cooktop Type : Standard Grates
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Tri-Ring Burner : Yes
• POWER / RATINGS
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0;
  • Amp Rating at 208V : 30
  • Broiler Wattage : 3000W Upper / 3600W Lower
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
  • Volts/Hertz/Amps : 208/240V; 60Hz; 30A
  • Bake Wattage : 2650W Upper / 2650W Lower
  • Power Connection : Power Cord - Not Included
  • Amp Rating at 240V : 30
  • Convection Wattage : 2500W
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Cabinet Width : 30 in
  • Depth Without Handle : 26.875 in
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Height to Top of Rear Vent Trim : 37.375 in
  • Overall Depth : 29.5 in
  • Depth with Door Open : 43.875 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 10-1/8 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
  • Approximate Shipping Weight : 291 lb
  • Cabinet Opening : 30 in
  • Overall Height : 37.375 in
  • Net Weight : 271 lb
  • Overall Width : 29.875 in

Description

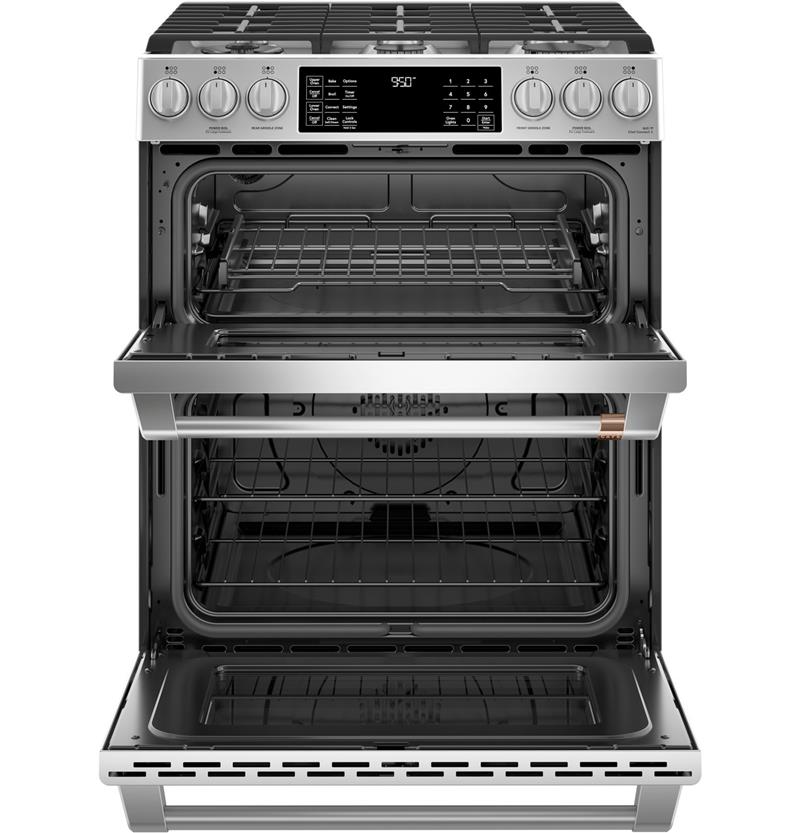

• Product Name: 30-Inch Slide-In Dual Fuel Smart Range
• Finish: Stainless Steel
• Cooktop:
  • Six sealed burners, including a 21K tri-ring burner for versatile cooking.
• Oven Features:
  • Double oven with a total of 7.0 cu. ft. oven capacity, perfect for large meals and multi-rack baking.
• Convenience Features:
  • Continuous grates for smooth movement of cookware.
  • Self-clean and steam clean options for easy maintenance.
• Smart Features:
  • Sabbath Mode to accommodate specific observance needs.
• Certifications:
  • CSA and ADA compliant, ensuring safety, accessibility, and reliability.

This Stainless Steel dual fuel range combines advanced cooking capabilities with modern design, making it a versatile and efficient addition to any kitchen.

Features

• Built-In WiFi, Powered by SmartHQ App : Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details
• Personalized Features + Upgrades : Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire
• No-Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)
• Expansive six-burner cooktop helps you entertain with ease : Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favorites
• An attractive appearance at all times : Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted
• Share favorite creations with your favorite people : Create an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pasta
• Everything you need for unforgettable results : Get the precision you need to pull off a multi-course dinner party with this 6.7 cu. ft. double oven dual fuel range, which boasts a gas-powered cooktop for precise heat control and electric True Convection with Precise Air in the oven for even baking results
• Never-scrub, smooth-glide racks : Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly and stay in the oven during the self-clean cycle, so you never have to handle cumbersome racks again
• Create a look that matches your personal style : Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
• Allow your appliances to interact with one another : Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocks
• Prepare foods to perfect doneness : Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door
• Worry about guests, not the cooking : Confidently cook over a steady flame with the electronic ignition’s automatic reignition feature that instantly revives any accidentally extinguished flames
• Choose the range you want with total confidence : When you’re updating your kitchen, attention to detail is a priority. That’s why Café 30” slide-in ranges are guaranteed for an exact fit or Café Appliances will pay up to $300 toward modifications.
