Specifications

• Hood Dimensions

  • Width: 30"
  • Depth: 19 45/64"
  • Height: 13 1/4"

• Chimney Dimensions

  • Width: 12 1/2"
  • Depth: 9 1/4"
  • Height: 23 1/2"

• Additional Specifications

  • Airflow (Q/L/M/H): 120/240/320/400 CFM
  • Noise Level: 20/29/34/41 (Decibels)
  • Mount Type: Wall Mount Range Hood
  • Motor: High Performance 400 CFM/4-Speed Motor
  • Speeds: 4 Speeds
  • Control Type: Speed/Timer Panel with LCD (3-Minute AutoTimer with Delayed Shutoff)
  • Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
  • Material: Solid Wood Exterior with Stainless Steel Insert, Painted Gray Finish
  • Warranty: 3 Year Parts Warranty
  • Lighting: 2 Directional LED Lights (3-Watt)

• Certifications

  • ETL Listed: Yes

Description

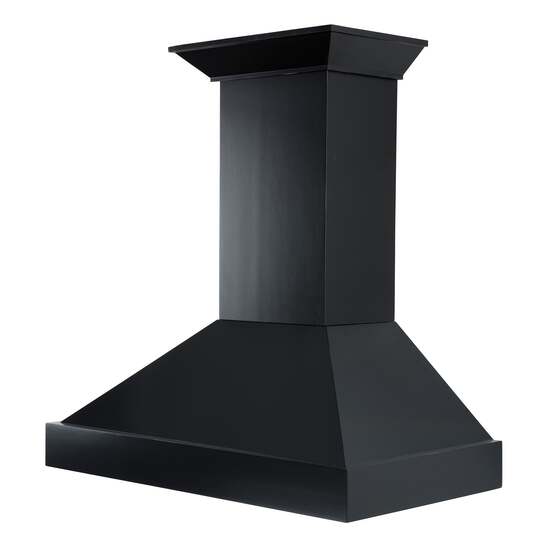

• Wooden Wall Mount Design with Crown Molding
  Adds a touch of elegance to your kitchen with a beautiful, seamless crown molding.

• 4 Speed 400 CFM Blower
  Provides efficient ventilation with adjustable speeds for optimal air flow in your kitchen.

• Directional LED Lighting
  Illuminates your cooking area with focused, energy-efficient LED lights.

• Stainless Steel Baffle Filters
  High-quality baffle filters that capture grease and are dishwasher-safe for easy cleaning.

• Delayed Shut Off
  Automatically shuts off the fan after a set time to help conserve energy and enhance safety.

• 30'' Width
  Perfectly sized for most kitchens, offering powerful ventilation without overwhelming the space.

Features

• • 30 Inch Wall Mount Range Hood
    Features a solid wood exterior and crown molding for an elegant and stylish design that complements your kitchen decor.

  • 4 Speed 400 CFM Blower
    Equipped with a high-powered motor that provides an adjustable range of 120 CFM to 400 CFM, ensuring efficient ventilation for all cooking needs.

  • Dishwasher Safe Stainless Steel Baffle Filters
    Baffle filters effectively trap grease and odors and are dishwasher-safe for easy cleaning, ensuring continued performance.

  • Delayed Shut Off
    Includes a 3-minute auto-timer with a delayed shut-off feature for added convenience and peace of mind, allowing the hood to continue working after cooking.

  • Directional LED Lighting
    Two 3-watt directional LEDs provide efficient lighting to illuminate your stove and adjacent counter-top areas.

  • Other Features
    Comes with a 3-year parts warranty for added reliability.
    ETL Listed for safety compliance.
    Noise levels range from 20 to 41 dB for quiet operation at all speed settings.
