Specifications

• Certifications
  • Prop65: Standard
  • Energy Star Qualified: No
• Controls
  • Control Location: Front
  • Control Type: Push Button
• Details
  • Damper Included: Yes
  • Hood Type: Wall-Mount Canopy
  • Lighting Control Type: Push Button
  • Hood And Vent Selections: Fan High; Fan Med; Fan On/Off; Lamp
  • Number Of Task Light Settings: 1
  • Number Of Vent Speeds: 3
  • Task Lighting: Yes
• Dimensions
  • Canopy Height: 10.813
  • Carton Width: 34 inches
  • Net Weight: 40 pounds
  • Carton Depth: 17.5 inches
  • Carton Height: 25.5 inches
  • Gross Weight: 51 pounds
• Electrical
  • Power Cord Included: No
• Ventilation Details
  • Auto Function: No
  • BTU Threshold: 65 K
  • Blower Type: Centrifugal
  • Duct Outlet Size: 6
  • Duct Length: 45.5
  • HVI (CFM HS Vertical): 340
  • Sones High Speed Vertical: 7
  • Sound Max Speed: 66
  • Sound Max Speed (Sones): 7
  • Sound Min Speed: 0.6
  • Sound Min Speed (Sones): 0.6
  • CFM Motor Class: 400
  • Duct Type: Round
  • Vent Material: Metal
  • Venting: Exterior or Recirculating
  • Minimum Motor CFM: 80
  • Duct Direction: Vertical
  • Exhaust Vent Location: Top
  • Filters: Aluminum Mesh Filter
  • Maximum Motor CFM: 340
  • Night Light: No
  • Blower Motor: N/A
  • Night Light Type: N/A
  • Task Light Type: LED

Description

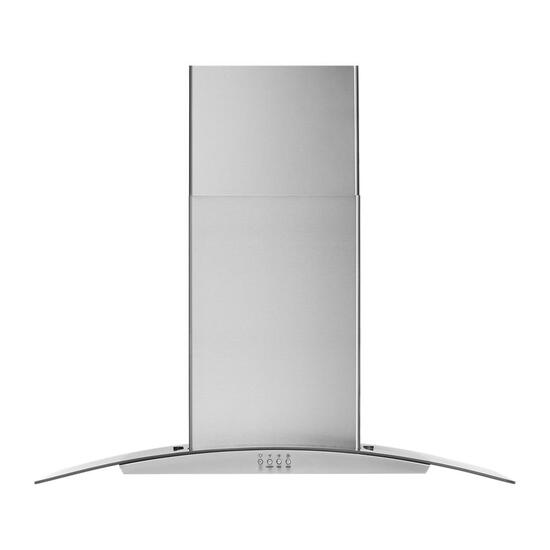

• 36 Inch Wall Mount Chimney Hood: Designed to provide efficient ventilation for medium to large kitchens with a sleek, modern look.
• 400 CFM Internal Blower: Powerful internal blower with 400 CFM airflow for effective removal of smoke, steam, and odors.
• Push-Button Controls: Simple and easy-to-use push-button controls for adjusting fan speeds and lighting.
• LED Lighting: Energy-efficient LED lighting illuminates the cooking area for improved visibility.
• Mesh Filter: Durable mesh filter effectively traps grease and other cooking residues, ensuring clean air and easy maintenance.
• Flexible Ventilation Options: Can be externally vented or used in recirculating mode with charcoal filters (sold separately) for odor control.
• ADA Compliant: Designed to meet accessibility standards for ease of use by everyone.

Features

• 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.): Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
• Grease Filter: Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
• LED Task Lighting: Bright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.
• 65K BTU Cooktop Threshold: Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
• 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.): Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
• Push Button Controls: Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
• ADA Compliant: When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
• Convertible Ventilation (Recirculating or Vented): A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
• Optional Recirculation Kit (non-vented/duct-free): This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.
• 6" Round Damper Included: Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
• Optional Chimney Extension Kit: Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.
