Specifications

• Certifications
  • CEE Tier Rating: Not Rated
  • Energy Rating: 340
  • Energy Star Qualified: ENERGY STAR® Qualified
  • IMEF: 3.04
  • UL: Yes
  • Prop65: Standard
  • ADA Compliant: No
  • IWF: 6.25
• Controls
  • Control Location: Backguard
  • Control Type: Push Button
  • Automatic Temperature Controls: Yes
  • Eco Monitor/Efficiency Monitor: No
  • Electronic Display Type: LED
  • Feedback-Status Indicators: Done; Rinse; Sensing; Spin; Wash
  • LCD Touch Screen: No
  • End Of Cycle Signal: No
• Cycles
  • Number Of Wash Cycles: 12
  • Washer Cycle Selections: Bulky Items; Clean Washer with affresh; Colors; Delicates; Drain & Spin; Heavy Duty; Quick Wash; Regular Heavy; Regular Light; Regular Normal; Sheets; Towels; Whites
• Details
  • Dryer Interior Light: No
  • Fabric Brush: No
  • Hoses Included: Drain Hose
  • Internal Heater: No
  • Maximum Spin Speed: 850
  • Water Faucet: No
  • Stackable: No
  • Recirculation(Visible): No
  • Sound Package: No
• Dimensions
  • Capacity IEC Canada: 6.1
  • Depth With Door Open 90 Degree: 28
  • Height With Lid Open: 57.25
  • Carton Depth: 29.25 inches
  • Carton Height: 46 inches
  • Carton Width: 29 inches
  • Gross Weight: 145 pounds
  • Net Weight: 140 pounds
  • Capacity (DOE) US: 5.3
• Electrical
  • Power Cord Included: Yes
• Exterior Details
  • Lid/Door Finish: Glass
  • Lid/Door Swing: N/A
  • Window: Yes
  • Adjustable Feet: Yes
  • Lid/Door Lock: Yes
  • Slow Close Lid: Yes
• Interior Details
  • Dispense System: Detergent, Fabric Softener & Bleach
  • Motor Drive Type: Direct Drive
  • Suspension System: Hung Spring Damper
  • Wash Action: Impeller
  • Washer Drum Material: Stainless Steel
  • Washer Drum Rear/Base Material: Plastic
  • Advanced Vibration Control: Yes
  • Automated Dispenser: N/A
  • Automatic Load Size Sensing Technology: Yes
  • Out Of Balance Sensing: Yes
• Modifiers
  • Number Of Wash/Rinse Temperatures: 5
  • Pre Soak: Yes
  • Delay Start: No
  • Number Of Rinse Options: 4
  • Number Of Washer Options: 12
  • Number Of Water Levels: 3
  • Rinse Temperature: 1 Rinse; 1 Rinse w/ Fab Soft; 2 Rinse; 2 Rinse w/ Fab Soft
  • Temperature Selections: Cold; Cool; Hot; Tap Cold; Warm
  • Washer Soil Selections: Regular - Heavy; Regular - Light; Regular - Normal
  • Water Levels: Auto; High; Medium
  • Number Of Soil Levels: 3
• Options
  • Washer Option Selections: 1 Extra Rinse; 1 Extra Rinse With Softener; 2 Extra Rinses; 2 Extra Rinses With Softener; Deep Water Wash; Fabric Softener; Presoak; Sales Demo Mode; Wash Temp
• Performance Details
  • Motor Horsepower: 9/10 HP
• Smart Compatibility
  • Connectivity: No
  • Works With: No

Description

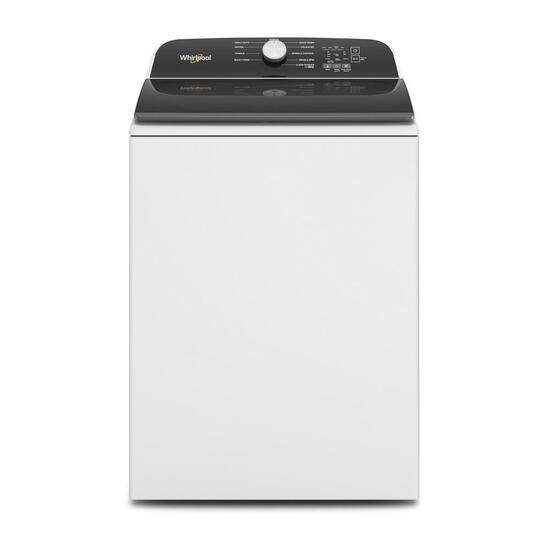

27 Inch Top Load Washer with 5.3 cu. ft. capacity for large loads

EasyViewâ„¢ Glass Lid for convenient monitoring during washes

Vibration Controlâ„¢ technology for quieter operation

Durable Stainless Steel Wash Basket for long-lasting performance

Extra Rinse option ensures thorough cleaning

Wrinkle Control to reduce creasing and keep clothes looking fresh

ENERGY STAR® certified for energy-efficient performance, helping save on utility costs

Features

• Deep Water Wash Option: Get more water to help break down loose soils. This option automatically adds more water to your load, so heavily soiled clothes get an optimal clean.*
• Smooth Spiral Stainless Steel Wash Basket: Help protect fabrics with this stainless steel wash basket that gently guides clothes during the wash.
• EasyView™ Full-Width Slow-Close Glass Lid: Enjoy a clean, streamlined look with the slow-close see-through lid that lets you easily check on your load while it’s washing.
• Lid Lock: Unlock the lid any time simply by pressing the Start/Pause button. The lid automatically locks when the load sensing phase begins, at which point the Lid Lock icon on the console is illuminated.
• ENERGY STAR® Certified: ENERGY STAR® Certified models exceed government standards to help conserve natural resources and save money on your utility bills.
• Smooth Impeller: Give clothes a thorough yet gentle clean. Designed so clothes have more room to move, the surface and vanes also help drive clothes from the outer rim to the center, where the deepest cleaning happens.
• 5.3 Cu. Ft. Capacity: "Wash more than 3 baskets of clothes in a single load* thanks to our washer with 5.3 Cu. Ft. Capacity. You’ll even have the space you need for bulky items like comforters.
• Quick Wash Cycle: Your small, lightly soiled loads will be clean in as little as 30 minutes with the Quick Wash Cycle.* (*Based on a 3-lb load)
• Extra Rinse Options: Two Extra Rinse options help ensure that messes and detergent are thoroughly rinsed away. Add it to heavily soiled clothes and loads with fabric softener to achieve an optimal clean.
• Single Load Dispenser: Add detergent and fabric softener to their designated compartments so each gets dispensed at just the right time during the cycle.
• Clean Washer with affresh® Cycle: Run the Clean Washer with affresh® Cycle every 30 washes with an affresh® washing machine cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer.
• An American Company for Over 100 Years: Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
