Specifications

• Certifications
  • CUL: Yes
  • Energy Rating: 359
  • Star K Certified: Star K Certified
  • Energy Rating (Kwh/Year): 359
  • UL: Yes
  • Prop65: Standard
  • ADA Compliant: No
• Controls
  • Control Type: Glass Touch Digital Display
  • Display Color: Full Color
  • Electronic Display Type: Full Color LCD
• Details
  • Delay Clean: No
  • Flush Installation Approved: Yes
  • Fuel Type: Electric
  • Light Control: Oven Light Touch Pad
  • Oven Automatic Shut-Off: Yes
  • Oven Selections: Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Keep Warm/Warm Hold; Language Conversion; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Temperature-Sensor Baking; Timer
  • Oven Type: Double
  • Power On Indicator Light: Yes
• Dimensions
  • Cutout Depth: 24
  • Cutout Height: 50.25
  • Cutout Width: 28.5
  • Depth Closed Excluding Handles: 24.438
  • Depth Closed Including Handles: 26.438
  • Depth With Door Open 90 Degree: 46.188
  • Lower Oven Interior Height: 18
  • Carton Depth: 31 inches
  • Carton Height: 53 inches
  • Carton Width: 35 inches
  • Gross Weight: 274 pounds
  • Net Weight: 221 pounds
  • Upper Oven Interior Width: 25
  • Upper Oven Interior Depth: 19
  • Lower Oven Interior Depth: 19
  • Upper Oven Interior Height: 18
  • Lower Oven Interior Width: 25
• Electrical
  • Power Cord Included: No
• Exterior Details
  • Handle Color: Stainless Steel
  • Oven Window Size: Extra Large
  • Door Type: Metal & Glass
  • Handle Material: Metal
• Microwave Details
  • Language Conversion: English/French/Spanish
• Oven Details
  • Bake Element Power: 2,800 W Both
  • Broiler Element Power: 3,600 W Both
  • Door Lock: Yes
  • Door Removable: Yes
  • Light Type: Halogen
  • Lower Oven Number Of Oven Lights: 2
  • Number Of Lower Oven Racks: 3
  • Oven Cleaning Type: Self-Cleaning
  • Oven Cooking System: Convection Both
  • Self-Cleaning Oven Racks: No
  • Upper Oven Number Of Oven Lights: 2
  • Broiler Location: Top of Oven
  • Number Of Bake Elements: 2
  • Interior Color: Grey
  • Convection Element Power: 2,500 Both
  • Convection Element Type: True Convection
  • Convection Functions: Bake, Broil, and Roast
  • Door Broil Position: Closed
  • Hidden Bake Element: Yes
  • Interior Coating: Porcelain
  • Number Of Lower Rack Guides: 6
  • Number Of Upper Oven Racks: 3
  • Number Of Upper Rack Guides: 6
  • Installable Under Cooktop: No
  • Number Of Broil Elements: 1
• Smart Compatibility
  • Connectivity: Amazon Alexa; Android; Google Assistant; iOS
  • Works With: App; Bluetooth; Remote Access; Voice Controlled; WiFi

Description

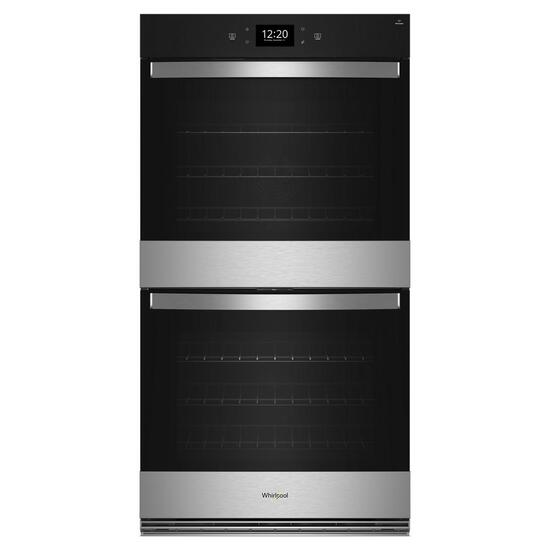

• 30 Inch Double Electric Smart Wall Oven with 10.0 cu. ft. total capacity
• True Convection Oven for even cooking and baking
• Steam Clean function for easy cleaning with no harsh chemicals
• Air Fry feature for healthier cooking with less oil
• Frozen Bakeâ„¢ for cooking frozen foods without preheating
• Rapid Preheat function reduces cooking time
• WiFi connectivity for remote control and monitoring
• Star K certified with Sabbath mode for religious observances

Features

• Smart Wall Oven: When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.*
• 8-in-1 Wall Oven with Air Fry: Cook however you want with 8 cooking modes in one wall oven: Air Fry, Frozen Bake™, Keep Warm, Broil, Convect Broil, Bake, Convect Bake and Convect Roast. For even more cycles and enhanced performance over time, connect your appliance to receive Automatic Feature Updates.*
• 10.0 Cu. Ft. Total Capacity: Make large family meals by cooking your main course, side dishes and dessert in this 10.0 Cu. Ft. Total Capacity double wall oven.
• Automatic Feature Updates When Connected* : Select Whirlpool® Smart Appliances get smarter over time with new cycles and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
• Dishwasher-Safe Air Fry Basket: For easy cleaning, put the included Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.
• Air Fry Mode: Skip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
• True Convection with Third Heating Element: Bake multiple dishes using a third heating element and a fan to more evenly distribute hot air around the oven.*
• Steam Clean Option: Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
• Adjustable Self-Clean Cycle: Clean without harsh chemicals using the high-temperature self-clean cycle. Adjust the cycle for light, medium or heavy soil levels to help keep your oven looking clean.
• Frozen Bake™ Technology: Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
• Keep Warm Setting: Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
• Broil: When you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
• Convect Broil: When cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
• Bake: Cook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.
• Convect Bake: Convect Bake uses the bake, broil, and ring heating elements along with a fan to distribute hot air more evenly when cooking on multiple racks.*
• Convect Roast: Cook foods such as chicken and turkey with the Convect Roast setting that uses high heat from the bake, broil, and ring elements with the fan to circulate air around the oven cavity.
• Rapid Preheat: Save time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
• Connects to Yummly® Smart Thermometer: The Yummly® Smart Thermometer helps eliminate guesswork in the kitchen by helping you cook meat exactly how you like it. Paired with your Whirlpool® Smart Oven, it allows you to set the oven temperature and monitor progress from your phone. When the meat is finished cooking, you’ll get a notification and your oven will automatically turn off.* Yummly® Smart Thermometer sold separately.
• Yummly® Guided Cooking*: Yummly® Guided Cooking* makes meal prep easier by helping you answer the question “what’s for dinner?” before it’s even asked. Recipes with the Connected Fork icon in the Yummly® App include step-by-step video tutorials that provide the extra assistance you need on busy days. Prompts in the app even send cooking instructions straight to your Whirlpool® Smart Wall Oven at the right times, so dinner’s ready when your family’s hungry.**
• Voice control with a compatible voice-enabled device (US only): Control your kitchen no matter what you’ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.
• Touchscreen: Get instant access to the settings you use most with a touchscreen that learns, adapts and suggests customized presets based on your family's routines.
• Favorites: Make your favorite cooking settings easy to access by creating and saving them right on your appliance with Favorites.
• Assisted Cooking: Precisely selects an optimal power level to bring water to a boil, simmer delicate sauces or melt chocolate.
• Assisted Cooking: Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.
• Scan-to-Connect Technology*: You don’t need to be a tech expert to connect your new appliance. Simply open the Whirlpool® App, add your appliance and follow the guided experience to get up and running.
• Remote Start: When set to remote enable, use your smartphone or tablet to remotely turn your oven on so it’s heated up and ready to cook meals when you are.*
• Multi-Step Cooking: Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven or microwave all at once.* The temperature automatically adjusts based on the recipe you enter for great results.
• Hidden Bake Element: The hidden bake element is sealed under the oven floor to protect it from spills and drips.
• Hidden Bake Element: A Hidden Bake Element under the floor of the oven creates a smooth surface inside the oven that’s easy to clean.
• Delay Start: Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
• Control Lock Mode: Disable the control panel to avoid unintended use and easily clean controls.
• Convection Conversion: Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
• Extra-Large Oven Window: See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
• Extra-Large Oven Window: Keep an eye on your meal through the Extra-Large Oven Window.
• Sabbath Mode: Use Sabbath Mode to keep the oven on the Bake setting at a set temperature which allows for cooking or warming food until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
• FIT System Limited Guarantee: The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.*
• An American Company for Over 100 Years: Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
