Specifications

• -
  • Energy Ratings (Kwh/Year): NA
  • Literature Language: English; French; Spanish
  • Console Language: English
• Certifications
  • ADA Compliant: No
  • CUL: Yes
  • Star K Certified: Yes
  • UL: Yes
  • Prop65: Standard
• Controls
  • Display Color: Blue
  • Electronic Display Type: LED
• Cooktop Details
  • Auto Re-Ignition: No
  • Cooktop Control Knob Type: Plastic
  • Cooktop Control Type: Knobs
  • Heating Element On Indicator Light: Yes
  • Hot Surface Indicator Light: No
  • Ignition Type: Direct Spark Ignition
  • Total Gas Btus - Cooktop: 44,500
  • Cooktop Control Location: Front
  • Cooktop Surface Material: Stainless/Porcelain Coated Steel
  • Griddle Included: Optional Accessory
  • Cooktop Control Knob Color: Black
  • Cooktop Surface Color: Black
• Details
  • Installation Configuration: Freestanding
  • Oven Light Switch Location: Oven Control
  • Oven Selections: Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm Setting; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Oven Light; Sabbath Mode; Start Time; Stop Time; Timer
  • Power On Indicator Light: Yes
  • Power Outage Compatible: Yes
  • Range Type: Freestanding
  • Oven Automatic Shut-Off: No
  • Oven Configuration: Single Oven
  • LP Convertible: Yes - Kit Included
  • Cooktop Configuration: All Burners
  • Fuel Type: Gas
  • Range Configuration: Freestanding
  • Range Drawer Type: Storage Drawer
  • Automatic Convection Conversion Temperature Adjust: No
• Dimensions
  • Depth Closed Including Handles: 28
  • Oven Interior Depth: 18.5
  • Oven Interior Height: 18.875
  • Oven Interior Width: 24.5
  • Carton Depth: 29 inches
  • Gross Weight: 173 pounds
  • Cutout Depth: 24
  • Cutout Height: 36
  • Cutout Width: 30
  • Depth Closed Excluding Handles: 25.313
  • Carton Height: 49 inches
  • Depth With Door Open 90 Degree: 46.688
  • Carton Width: 32 inches
  • Net Weight: 157 pounds
• Electrical
  • Power Cord Included: Yes
• Element/Burner Details
  • Left Front Element-Burner Size: 4in.
  • Left Front Element-Burner Type: Standard
  • Left Rear Element-Burner Power: 9,500 BTU
  • Left Rear Element-Burner Size: 4in.
  • Right Front Element-Burner Type: Standard
  • Right Rear Element-Burner Power: 5,000 BTU
  • Right Rear Element-Burner Size: 4in.
  • Right Front Element-Burner Size: 4in.
  • Cooktop Element Style: Sealed Burners
  • Left Front Element-Burner Power: 15,000 BTU
  • Left Rear Element-Burner Type: Standard
  • Number Of Cooking Element-Burners: 4
  • Right Front Element-Burner Power: 15,000 BTU
  • Right Rear Element-Burner Type: Simmer
• Exterior Details
  • Oven Control Location: Backguard
  • Oven Control Type: Electronic Touch
  • Oven Window Size: Extra Large
  • Handle Type: Reach Through Handle
  • Knob Color: Black
  • Knob Type: Plastic
  • Oven Control Knob Type: Plastic
  • Handle Color: Black
  • Handle Material: Metal
  • Door Type: Glass Window
• Grate Details
  • Number Of Grates: 2
  • Grate Details: Continuous; Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
• Oven Details
  • Broiler Element Power: 1,300 W Electric Broil
  • Broiler Location: Top Center
  • Hidden Bake Element: Yes
  • Number Of Oven Racks: 2
  • Oven Cleaning Type: Self-Cleaning
  • Oven Cooking System: Thermal
  • Oven Light Type: Incandescent
  • Oven Rack Front Material: Metal
  • Oven Rack Type: Standard (Both)
  • Temperature Probe: No
  • Temperature Sensor: No
  • Natural Gas Convertible: Yes
  • Number Of Oven Lights: 1
  • Total Gas Btus - Ovens: 26,500
  • Convection Element Type: None
  • Interior Color: Grey
  • Door Removable: Yes
  • Number Of Rack Guides: 5
  • Oven Rack Guide Type: Molded
• Smart Compatibility
  • Smart Appliance: No

Description

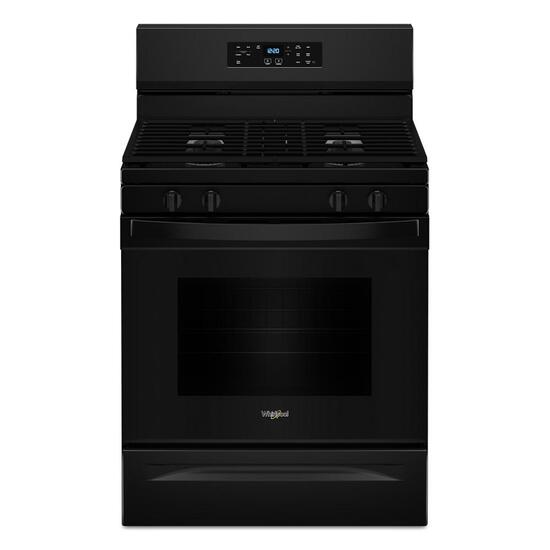

Make the most of your time in the kitchen with the Whirlpool 30 inch gas range, a self cleaning oven featuring high heat burners and No Preheat Mode. This 5.0 cu ft gas oven with Broil helps you add a toasty twist or melty magic to family classics, and features a built-in temperature sensor to help the oven Bake evenly. Plus, boil 20% faster* with two SpeedHeat high btu burners. *Compared to 9.5K burner on the same model.

Features

• No Preheat Mode: Take Preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
• Bake: Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.
• Broil: Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
• Edge-to-Edge Cast-Iron Grates: Enjoy plenty of space to saute´, boil and simmer with Edge-to-Edge Cast-Iron Grates, and the flexibility of a cooktop with a range of burner sizes and power levels.
• SpeedHeat™ Burner: Use the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.
• Keep Warm: Use the Keep Warm Setting in the oven to help your dishes stay warm until your family is ready to dig in.
• Self-Clean Cycle: Easily clean your oven with the adjustable Self-Clean Cycle that can be customized based on the amount of spills and splatters.
• 5.0 CuFt Capacity: Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious 5.0 Cu. Ft. Capacity.
• Storage Drawer: Easily store kitchen items from baking sheets to cooking pans in the Storage Drawer.
• Sabbath Mode: Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
