Specifications

• -
  • Combination Match With Oven: WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
• Certifications
  • ADA Compliant: ADA Height and Operation Compliant
  • Prop65: Standard
• Controls
  • Control Location: Front
  • Control Type: Knobs
  • Infinite Heat Controls: Yes
• Cooktop Details
  • Heating Element On Indicator Light: Yes
  • Number Of Open Bays: N/A
  • Digital Display: No
  • Cooktop Surface Material: Glass
  • Griddle Included: N/A
  • Hot Surface Indicator Light: Yes
  • Cooktop Surface Color: Black
• Details
  • Automatic Pan Detection: No
  • Installs Over Built-In Oven: Yes
  • Cooktop Configuration: All Burners
  • Fuel Type: Electric
  • LP Convertible: No
  • Power Outage Compatible: No
  • Combinations With Oven: WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
• Dimensions
  • Cutout Depth Max: 20.563
  • Cutout Width: 34.563
  • Cutout Depth Min: 20.375
  • Cutout Width Max: 35.563
  • Cutout Width Min: 34.563
  • Carton Depth: 25 inches
  • Cutout Depth: 20.375
  • Carton Height: 9.25 inches
  • Gross Weight: 50 pounds
  • Net Weight: 44 pounds
  • Carton Width: 40.75 inches
• Electrical
  • Power Cord Included: No
  • 208V Compatible: Yes
• Element/Burner Details
  • Center Rear Element-Burner Power: 100W
  • Center Rear Element-Burner Type: Warming
  • Cooktop Element Style: Radiant
  • Cooktop Type: Standard
  • Left Rear Element-Burner Power: 2,500W
  • Right Front Element-Burner Power: 1200W
  • Right Front Element-Burner Size: 6in.
  • Center Rear Element-Burner Size: 6in.
  • Number Of Cooking Element-Burners: 5
  • Left Rear Element-Burner Size: 10in.
  • Left Rear Element-Burner Type: Standard
  • Right Rear Element-Burner Size: 10in./6in.
  • Left Front Element-Burner Power: 1,200W
  • Left Front Element-Burner Size: 6in.
  • Left Front Element-Burner Type: Standard
  • Right Front Element-Burner Type: Dual
  • Right Rear Element-Burner Power: 3000/1900W
  • Right Rear Element-Burner Type: Standard
• Exterior Details
  • Knob Color: Black
  • Knob Type: Dishwasher-Safe Plastic
• Oven Details
  • Natural Gas Convertible: No
• Ventilation Details
  • Downdraft Vent: No

Description

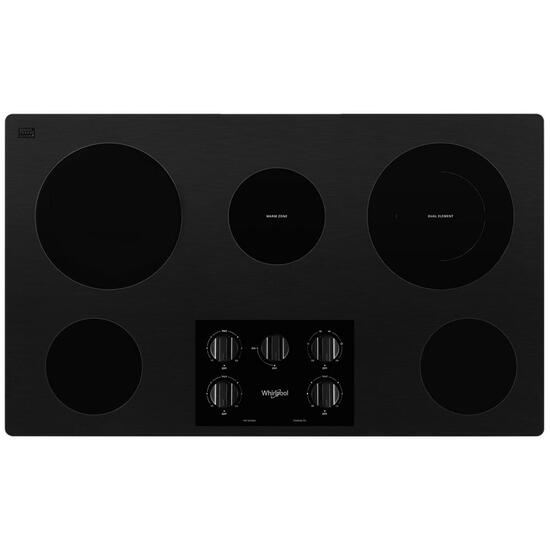

Size: 36 inches

Heating Elements: 5 element burners for versatile cooking

Surface: Durable ceramic glass surface that’s easy to clean

FlexHeatâ„¢ Element: Dual radiant element for flexible cooking options

Warm Zone: Special element to keep food warm until ready to serve

Knobs: Dishwasher-safe knobs for easy maintenance

Safety Features: Hot surface indicator light to alert when the cooktop is still hot

ADA Compliant: Designed for accessibility, meeting ADA standards for ease of use

Design: Sleek, modern design that fits seamlessly into any kitchen

Features

• FlexHeat™ Dual Radiant Element: Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
• Easy-Wipe Ceramic Glass Cooktop: Wiping up spills is simple with the easy-to-clean cooktop.
• Warm Zone Element: Keep food warm while you're finishing the rest of the meal using this low-powered element.
• 5 Element Cooktop: Cook more of your family's favorites and enjoy added versatility with a fifth element.
• 5-Element Cooktop: Provides five independent cooking surface areas.
• 30 & 40 Amp Installation: Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
• Hot Surface Indicator Light: See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
• Wall Oven Compatible: Install this cooktop to work with a wall oven or on its own for more flexibility.
• 6" Extra Element: Cook small dishes like sides and sauces on the 6" Extra Element.
• ADA compliant: This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
