Specifications

• General
  • Product name / series name: Freezer
  • Type of control: Electronic
  • Watts (W): 350
  • Current (A): 10
  • Refrigerator Gross capacity : 0.0
  • Volts (V): 110-120
  • Number of compressors: 1
  • Depth with open door 90 degree (mm): 1287
  • Door hinge: Right
  • Adjustable feet: Yes - all
  • Power Cord Length: 118"
  • Country versions available / similar product: US, CA
  • Total unit gross capacity (l) - AHAM: 317
  • Tilt-Out Door Bins - Freezer: No
  • Minimum ambient temperature: 10
  • Product group: Freezer
  • Brand: Thermador
  • Multi-Flow Air Tower: Yes
  • SKU: T24ID905RP
  • Power cord length (cm): 300.0
  • Color / Material housing: White
  • Depth for installation (mm): 610
  • Product packaging dimensions (HxWxD) : 89.37 x 27.55 x 29.13
  • Eco Mode: Yes
  • Fast freezing function: No
  • Cover door installation system: Fixed-mounted
  • Internal article number: T24ID905RP
  • Construction type: Built-in
  • Installation type: Full-integrated
  • Type of control: Economy setting / Holiday mode;Super setting for freezer;Warning function freezer sect.;Warning signal door open;Warning signal for malfunction
  • Door decor panel: Possible but accessory
  • Plug type: 120V-3 prong
  • Total unit gross capacity (cu. ft.) - AHAM: 11.2
  • Total unit net capacity (l): 317
  • Number of independent cooling systems: 1
  • Maximum adjustability feet (mm): 79
  • Height of the packed product (mm): 2270
  • Depth of the packed product (mm): 740
  • Minimum height for installation (mm): 2134
  • Adjustable Door Bins - Freezer: No
  • EAN code: 825225960416
  • Freezer Gross capacity : 11.2
  • Frequency (Hz): 60
  • Width of the packed product (mm): 700
  • Maximum width for installation (mm): 610
  • Gross weight (kg): 163.9
  • Dimensions of the packed product : 227 x 70 x 74
  • Number of Door Bins - Freezer: 0
  • Freezer Net capacity - NEW (2010/30/EC): 0
  • Reversible Door Hinge: No
  • Freezing capacity - NEW (2010/30/EC): 0
  • Maximum ambient temperature: 43
  • Climate class: SN-T
  • Silence level (dBA): 42
  • Total annual energy consumption: 454.0
  • Energy Star® qualified: Yes
  • Number of Evaporators: 1
  • Warning signal / Malfunction: Both visual and audible
  • Highlights: A cool range, Crushed ice, ecoMode, Ice cube dispenser, noFrost, touchControl, varioZone, Water purifier
  • Freezer section with thaw water drainage system: No
  • Maximum height for installation (mm): 2134
  • Depth : 61
  • Minimum width for installation (mm): 610
  • Depth : 24
  • Net weight (kg): 149.1
  • Star Rating: 4
  • Light Wattage - Freezer: LED
  • Number of drawers/baskets (Stck): 2
  • Number of freezing flaps (Stck): 0
  • Lockable door: No
  • Thermometer freezer section: Digital
  • Included accessories: 1 x cartridge for water filtering system, 1 x connection set
  • Optional accessories: FRAMEKIT10, HEATRKIT20, MS36HNDL20, PR36HNDL20, REPLFLTR55, TFL24ID800, TFL24ID905
  • Required cutout size (HxWxD) : 84" x 24" x 25"
  • Adjustable Shelves - Freezer: Yes
  • Defrost process: Automatic
  • Height : 83 3/4 "
  • Temperature adjustable: Yes
  • Shelf Material - Freezer: Safety glass
  • Number of Shelves - Freezer: 2
  • Gross weight : 361.000
  • Net weight : 329.000
  • Width : 60
  • Height : 212
  • Type of shelves - Freezer: none
  • UPC code: 825225960416
  • Appliance Width : 23 3/4

Description

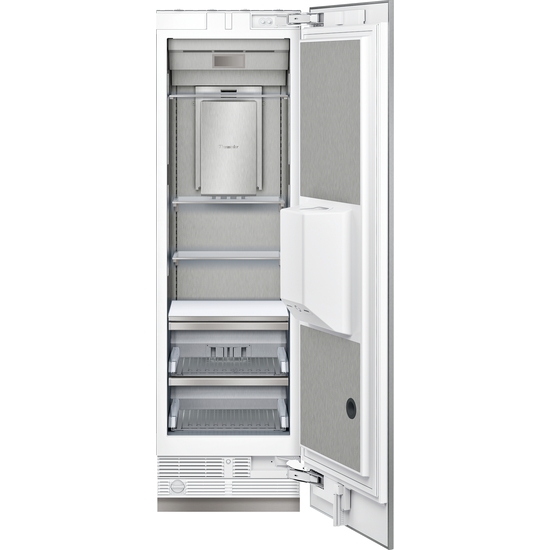

24-Inch Panel-Ready Smart Freezer Column: Designed for a sleek, custom built-in look that seamlessly integrates with your kitchen cabinetry.

11.2 cu. ft. Capacity: Provides generous storage space for frozen foods, perfect for moderate freezing needs in a compact design.

Water Dispenser: Offers convenient access to chilled water directly from the freezer without needing to open the door.

Diamond Ice Maker: Produces high-quality, clear diamond-shaped ice cubes, ideal for beverages and food presentations.

Freedom® Water Filter: Ensures clean, fresh water for both the ice maker and water dispenser, improving taste and quality.

Right Hinged: Features a right-hinged door for flexible installation, allowing you to customize the freezer’s fit based on your kitchen layout.

Features

• In-Door Dispenser: features intuitive touch controls, capacitive touch, and stunning lighting which makes getting water and ice easier than ever.
• Free Flow® Cold Air System: evenly distributes cold air throughout Thermador Refrigerators & Freezers.
• Touch-Screen TFT Display: easily control lighting, and settings, such as an individual temperature control.
• SoftClose® Drawers: offer an ultra-smooth glide when you open or close the drawers.
• SuperFreeze®: brings food to its ideal preservation temperature after placing it in the freezer when you need items to get cooler, faster.
