Specifications

• General
  • Product group: Freezer
  • Adjustable Door Bins - Freezer: Yes
  • EAN code: 825225960430
  • Freezer Gross capacity : 8.6
  • Construction type: Built-in
  • Type of control: Electronic
  • Installation type: Full-integrated
  • Type of control: Economy setting / Holiday mode;Super setting for freezer;Warning function freezer sect.;Warning signal door open;Warning signal for malfunction
  • Refrigerator Gross capacity : 0.0
  • Volts (V): 110-120
  • Frequency (Hz): 60
  • Door decor panel: Possible but accessory
  • Current (A): 10
  • Power cord length (cm): 300.0
  • Color / Material housing: White
  • Total unit gross capacity (cu. ft.) - AHAM: 8.6
  • Total unit net capacity (l): 0
  • Depth with open door 90 degree (mm): 1135
  • Door hinge: Left reversible
  • Power Cord Length: 118"
  • Maximum adjustability feet (mm): 79
  • Height of the packed product (mm): 2270
  • Country versions available / similar product: US, CA
  • Depth of the packed product (mm): 741
  • Brand: Thermador
  • Multi-Flow Air Tower: Yes
  • Product name / series name: Freezer
  • SKU: T18IF905SP
  • Internal article number: T18IF905SP
  • Watts (W): 350
  • Number of compressors: 1
  • Number of independent cooling systems: 1
  • Adjustable feet: Yes - all
  • Width of the packed product (mm): 540
  • Maximum width for installation (mm): 457
  • Depth for installation (mm): 610
  • Depth : 24
  • Net weight (kg): 124.4
  • Gross weight (kg): 137.5
  • Dimensions of the packed product : 227 x 54 x 74
  • Product packaging dimensions (HxWxD) : 89.37 x 21.25 x 29.17
  • Freezing capacity - NEW (2010/30/EC): 0
  • Eco Mode: Yes
  • Minimum ambient temperature: 10
  • Maximum ambient temperature: 43
  • Climate class: SN-T
  • Total annual energy consumption: 404.0
  • Fast freezing function: No
  • Freezer section with thaw water drainage system: No
  • Light Wattage - Freezer: LED
  • Optional accessories: FRAMEKIT10, HEATRKIT20, ICEBUCKETL, MS36HNDL20, PR36HNDL20, REPLFLTR55, TFL18IR800, TFL18IR905
  • Height : 212
  • Height : 83 3/4 "
  • Width : 45
  • Plug type: 120V-3 prong
  • Minimum height for installation (mm): 2134
  • Depth : 61
  • Required cutout size (HxWxD) : 84" x 18" x 25"
  • Adjustable Shelves - Freezer: Yes
  • Shelf Material - Freezer: Safety glass
  • Number of Shelves - Freezer: 3
  • Type of shelves - Freezer: none
  • UPC code: 825225960430
  • Gross weight : 303.000
  • Maximum height for installation (mm): 2134
  • Defrost process: Automatic
  • Highlights: A cool range, ecoMode, noFrost, touchControl, varioZone
  • Cover door installation system: Fixed-mounted
  • Number of freezing flaps (Stck): 0
  • Lockable door: No
  • Net weight : 274.000
  • Minimum width for installation (mm): 457
  • Tilt-Out Door Bins - Freezer: No
  • Reversible Door Hinge: Yes
  • Energy Star® qualified: Yes
  • Temperature adjustable: Yes
  • Placement of Temperature Control: Interior
  • Appliance Width : 17 3/4
  • Total unit gross capacity (l) - AHAM: 243
  • Number of Door Bins - Freezer: 4
  • Freezer Net capacity - NEW (2010/30/EC): 0
  • Star Rating: 4
  • Silence level (dBA): 42
  • Number of Evaporators: 1
  • Warning signal / Malfunction: Both visual and audible
  • Number of drawers/baskets (Stck): 2
  • Included accessories: 1 x cartridge for water filtering system, 1 x connection set, 1 x Ice storage container, small

Description

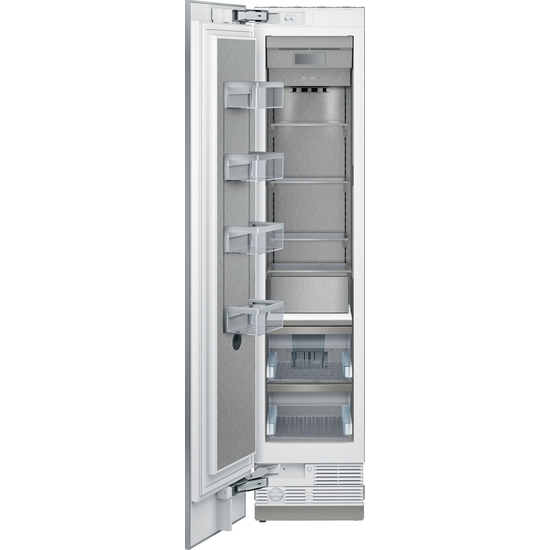

18-Inch Panel-Ready Built-In Smart Freezer Column: Offers a sleek, modern design that seamlessly integrates with surrounding cabinetry for a custom, built-in look.

8.6 cu. ft. Capacity: Provides ample space for frozen food storage, perfect for smaller kitchens or additional freezing needs.

Diamond Ice Maker: Produces clear, high-quality diamond-shaped ice, ideal for beverages and food presentation.

Freedom® Water Filter: Ensures clean, fresh water for ice production, improving water quality and taste.

Open Door Assist: Allows for easy door opening with minimal effort, enhancing convenience and usability.

SuperFreeze®: Rapidly lowers the temperature to quickly freeze fresh items, preserving food at its peak freshness.

Freedom® Hinge: Offers flexible installation options with a versatile hinge design, enabling a smooth, custom fit within your kitchen layout.

Features

• Free Flow® Cold Air System: evenly distributes cold air throughout Thermador Refrigerators & Freezers.
• Touch-Screen TFT Display: easily control lighting, and settings, such as an individual temperature control.
• SoftClose® Drawers: offer an ultra-smooth glide when you open or close the drawers.
• SuperFreeze®: brings food to its ideal preservation temperature after placing it in the freezer when you need items to get cooler, faster.
