Specifications

• General
  • Power on indicator: No
  • Ignition system: Yes
  • Product name / series name: Freestand combination cooker
  • Bake Element Wattages primary cavity : 2000
  • Material Color - door: Stainless Steel
  • Construction type: Freestanding
  • Product color: Stainless steel
  • Number of electric cooking zones: 0
  • Variable cooker height : 1''
  • Alternative gas type: Liquid gas 27,5 mbar (USA)
  • Current (A): 30
  • Internal article number: PRD304WHU
  • EAN code: 825225925231
  • Type of control: Electronic
  • Type of control: Front;Rotary knob;sword knobs
  • Number of gas burners: 4
  • Number of electric elements: 0
  • Number of radiant elements: 0
  • Door Material - primary cavity: Stainless steel
  • Height of the packed product (mm): 1250
  • Width of the packed product (mm): 1110
  • Depth of the packed product (mm): 1026
  • Adjustable feet: Yes - all
  • Maximum adjustability feet (mm): 25
  • Power of the heating element: 5.27
  • Optional accessories - primary cavity: PA12CHPBLK, PA30WLBH, PAALTKITH, PAGRIDDLE, PAKNOBLUWH, PALPKITHW, PARKB30HY, PWOKRINGHC
  • SKU: PRD304WHU
  • Total number of cooktop burners: 4
  • Which kind of hobs can be controlled?: Mixed
  • Convection Element Wattages primary cavity : 2750
  • Volts (V): 240/208
  • Overall appliance dimensions (HxWxD) : 35 7/8'' x 29 15/16'' x 24 3/4''
  • Location of the heating element: front left
  • Location of 2nd heating element: center left
  • Location of 4th heating element: middle back
  • Location of 5th heating element: back right
  • Type of 5th heating element: Gas
  • Location of 6th heating element: center right
  • Included accessories: 1 x Broiler pan
  • Type of heating element: Gas
  • Number of Double grates: 3
  • Power of 1st burner : 18000
  • Power of 3rd burner : 15000
  • Type of lid: Without
  • Power of 5th burner : 15000
  • Product group: Cooker
  • Brand: Thermador
  • Number of halogen elements: 0
  • Number of induction elements: 0
  • Gas connection rating (W): 19300
  • Type of 3rd heating element: Gas
  • Power of 5th heating element (kW): 4.4
  • Safety device: Door Lock Mechanical
  • Timer: No
  • Control panel information: On control knob, On the controls, Printing on panel front, Printing on panel front
  • Settings backup: No
  • Automatic programmes: No
  • Included accessories: 1 x Broiler pan
  • Optional accessories: PA12CHPBLK, PA30WLBH, PAALTKITH, PAGRIDDLE, PALPKITHW, PARKB30HY, PWOKRINGHC
  • Interior light: Yes
  • Frequency (Hz): 60
  • Plug type: No Plug
  • Depth with open door 90 degree (mm): 1140
  • Product packaging dimensions (HxWxD) : 49 1/4 x 43 1/2 x 40 3/8
  • Net weight (kg): 133.7
  • Gross weight (kg): 170.0
  • Number of cavities (2010/30/EC): 1
  • Knob Material: Full metal
  • Power of 3rd heating element (kW): 4.4
  • Location of 3rd heating element: back left
  • Main on/off switch: No
  • Power of 6th burner : 18000
  • Sealed Burners: No
  • Probe: No
  • Number of interior lights: 2
  • Position of interior lights: left side, right side
  • Trays: 0
  • AHAM usable cavity size: 3
  • Type of safety device for gas: Electromagnetic for each burner
  • Gross weight : 375.000
  • Net weight : 295.000
  • Total BTU load: 66000
  • Required cutout size (HxWxD) : 30'' width slide-in
  • Motorized turn spit: No
  • Plate on indicator: 0
  • Residual heat indicator: Without
  • Grids: 0
  • Shelves type: Shelf support and telescopic rails
  • UPC code: 825225925231

Description

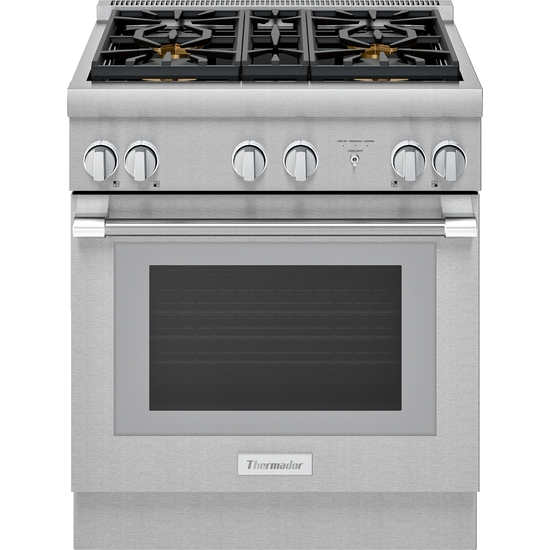

30-inch freestanding professional dual fuel range

4.4 cu. ft. oven capacity for ample cooking space

Continuous grates for easy movement of cookware

Self-clean mode for effortless oven maintenance

Sabbath Mode for compliance with kosher cooking practices

Equipped with 4 Star® Burners for optimal heat distribution and cooking performance

Features

• Our Pro Harmony Range, Truly Flush Mounted™ with Four Star® burners, two with ExtraLow®, in a convenient 30-inch footprint
• Two ExtraLow® Burners: These burners offer 5 precise settings that are perfect for simmering meals or melting chocolate without burning.
• One Full Access® Telescopic Rack: glides smoothly on ball bearings, allowing them to extend for safe, easy access while supporting the heaviest dishes.
• True Convection Oven: Convection oven with a third element, adds greater efficiency to your convection baking to cook multiple levels of sheet pans evenly.
• Truly Flush Mounted: designed to fit perfectly flush alongside standard 24" depth cabinets.
