Specifications

• General
  • Internal article number: HPIN42WS
  • EAN code: 825225933489
  • Typology: Island/Ceilling
  • Construction type: Built-in
  • Installation type: Island
  • Type of control: Illuminated Buttons;Touch Control
  • Motor location: Without motor
  • Watts (W): 1428
  • Power cord length (cm): 0.0
  • Plug type: Fixed Connection, No Plug
  • Height of product, without chimney (mm): 133
  • Product packaging dimensions (HxWxD) : 31 15/16" x 60 3/4" x 33 3/4"
  • Net weight (kg): 36.5
  • Height of the chimney : 24 3/4" - 36 3/4"

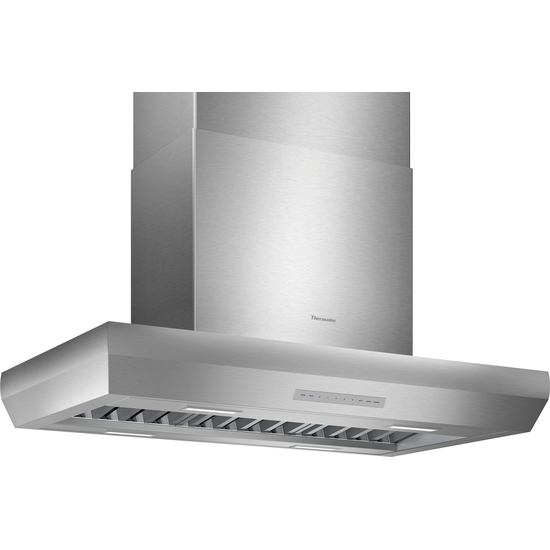

  • Design: Island chimney hood
  • Type of manual control devices: touch control
  • Number of motors: 0
  • Type of control: Electronic
  • Width of the packed product (mm): 857
  • Number of lights: 4
  • Total luminance (lux): 150
  • Grease filter material: Washable stainless steel
  • Odour filter: No
  • Optional accessories: REMCPW
  • Net weight : 80.000
  • Light Control Type: Continuous
  • Number of speed settings: 4-stage
  • Type of lamps used: Low consumption
  • Gross weight : 128.000
  • Overall appliance dimensions (HxWxD) : 30" - 42" x 41 15/16" x 26 11/16''
  • Total output power of the motors: 0
  • UPC code: 825225933489
  • Power Cord Length: 0"
  • Height of the packed product (mm): 811
  • Diameter of air duct top: 10
  • Minimum width for installation (mm): 549
  • Gross weight (kg): 58.0
  • Diameter of air duct (mm): 250
  • Product group: Hood
  • Brand: Thermador
  • SKU: HPIN42WS
  • Color body: Stainless Steel
  • Current (A): 15
  • Volts (V): 120
  • Frequency (Hz): 60
  • Maximum width for installation (mm): 549
  • Required distance above cooktop/ranges: 30''/30''
  • Air exhaust: Yes
  • Type of automatic control devices: Control via cooker/hotplate
  • No-return airflow flap: Yes
  • Depth of the packed product (mm): 1543
  • Depth for installation (mm): 337
  • Remote control: Yes

Description

4-Speed Setting: Provides adjustable ventilation power to suit your cooking needs

Blower Sold Separately: Allows flexibility in selecting the right blower performance for your kitchen

Touch Control: Easy-to-use touch control panel for effortless operation

LED Lighting: Energy-efficient LED lighting illuminates your cooking space with bright, clear light

Baffle Filter: Ensures effective grease and odor removal for a cleaner kitchen environment

Powerfully Quiet® System: Delivers powerful ventilation while maintaining a quiet and peaceful cooking space

Features

• Meticulously sculpted, floating stainless steel Professional Island Hoods make a dramatic statement in your kitchen
• Wi-Fi Enabled: allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
• Delay Shut Off & Automatic Mode: features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
• LED Lighting: highlights your meal from first course to last with multi-level vivid LED Lighting.
• Sleek Electronic Touch Control Panel: convenient control that is easy-to-use and easy-to-clean.
