Specifications

• General
  • Product group: Hood
  • Brand: Thermador
  • Internal article number: HMCB30WS
  • EAN code: 825225935704
  • Material chimney: Stainless steel
  • Typology: Wall-mounted
  • Type of control: Electronic
  • Construction type: Built-in
  • Installation type: Wall-mounted
  • Type of control: Illuminated Buttons;Touch Control
  • Motor location: Integrated motor in hood chimney
  • Current (A): 15
  • Volts (V): 120
  • Frequency (Hz): 60
  • Power cord length (cm): 0.0
  • Color body: Stainless Steel
  • Width of the packed product (mm): 447
  • Overall appliance dimensions (HxWxD) : 30" - 42" x 29 15/16" x 23 3/16"
  • Product packaging dimensions (HxWxD) : 29 1/8" x 33 7/8" x 17 1/2"
  • Net weight (kg): 21.2
  • Required distance above cooktop/ranges: 30"/30"
  • Watts (W): 455
  • Odour filter: No
  • Diameter of air duct top: 8
  • Gross weight (kg): 28.3
  • Total output power of the motors: 464
  • Optional accessories: CHFHMCD, CHXTHMCB, RECHMCB, REMCPW
  • Number of speed settings: 4-stage
  • Type of lamps used: Low consumption
  • SKU: HMCB30WS
  • Total luminance (lux): 150
  • Diameter of air duct (mm): 200
  • Plug type: Fixed Connection, No Plug
  • Power Cord Length: 0"
  • Height of product, without chimney (mm): 127
  • Height of the packed product (mm): 741
  • Depth of the packed product (mm): 859
  • Height of the chimney : 25" - 31 1/2"/25" - 37"
  • Air exhaust: Yes
  • Design: Wall chimney hood
  • Type of manual control devices: touch control
  • Type of automatic control devices: Control via cooker/hotplate
  • Remote control: Yes
  • Number of motors: 1
  • Light Control Type: Continuous
  • Number of lights: 2
  • No-return airflow flap: Yes
  • UPC code: 825225935704
  • Gross weight : 62.000
  • Net weight : 47.000

Description

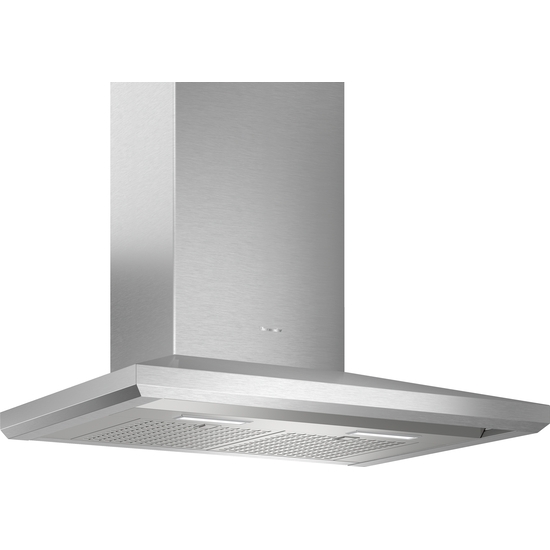

• 30 Inch Wall Mount Smart Range Hood: A sleek and modern addition to your kitchen, designed for efficient ventilation.
• 4-Speed/600 CFM Blower: Powerful suction to effectively remove smoke, odors, and grease from your cooking area.
• Touch Control: Easy and intuitive operation with a user-friendly touch panel for seamless control.
• LED Lighting: Bright, energy-efficient lighting to illuminate your cooktop for clear visibility.
• Hybrid Mesh Filter: Captures grease and airborne particles to keep the kitchen air clean and fresh.
• Noise Control Technologyâ„¢: Ensures quiet operation for a peaceful cooking environment without disruptive noise.

Features

• Masterpiece® Chimney Wall hoods are sleek, slim, and distinctive in design that add a sophisticated touch to contemporary kitchens
• Wi-Fi Enabled: allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
• Noise Control Technology™: utilizes insulation that reduces noise up to 35% compared to hoods without it - so you can focus on entertaining.
• Delay Shut Off & Automatic Mode: features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
• LED Lighting: highlights your meal from first course to last with multi-level vivid LED Lighting.
• Sleek Electronic Touch Control Panel: convenient control that is easy-to-use and easy-to-clean.
