Specifications

• General
  • Product group: Hood
  • Brand: Thermador
  • SKU: HDDB36WS
  • EAN code: 825225935834
  • Color body: Stainless Steel
  • Material chimney: Stainless steel
  • Typology: Wall-mounted
  • Type of control: Electronic
  • Construction type: Built-in
  • Installation type: Wall-mounted
  • Watts (W): 476
  • Volts (V): 120
  • Power cord length (cm): 0.0
  • Current (A): 15
  • Power Cord Length: 0"
  • Depth of the packed product (mm): 581
  • Diameter of air duct back: 6
  • Diameter of air duct top: 6
  • Overall appliance dimensions (HxWxD) : 30" - 42" x 35 15/16" x 18 3/16"
  • Product packaging dimensions (HxWxD) : 22" x 40 1/8" x 22 7/8"
  • Type of control: Illuminated Buttons;Touch Control
  • Discharge direction: vertical
  • Required distance above cooktop/ranges: 30"/30"
  • Air exhaust: Yes
  • Design: Wall chimney hood
  • Type of manual control devices: touch control
  • Remote control: Yes
  • Light Control Type: Continuous
  • Number of lights: 2
  • Total luminance (lux): 150
  • Diameter of air duct (mm): 150
  • No-return airflow flap: Yes
  • Odour filter: No
  • Internal article number: HDDB36WS
  • Height of the packed product (mm): 559
  • Width of the packed product (mm): 1019
  • Gross weight (kg): 46.0
  • Type of automatic control devices: Control via cooker/hotplate
  • Number of motors: 1
  • Optional accessories: CHFHMCD, CHXTHDDW, RECHDDB, REMCPW
  • UPC code: 825225935834
  • Height of the chimney : 26 3/4" - 33 1/4"/26 3/4" - 38 3/4"
  • Number of speed settings: 4-stage
  • Gross weight : 101.000
  • Motor location: Integrated motor in hood chimney
  • Frequency (Hz): 60
  • Plug type: Fixed Connection, No Plug
  • Height of product, without chimney (mm): 82
  • Net weight (kg): 40.8
  • Type of lamps used: Low consumption
  • Total output power of the motors: 476
  • Net weight : 90.000

Description

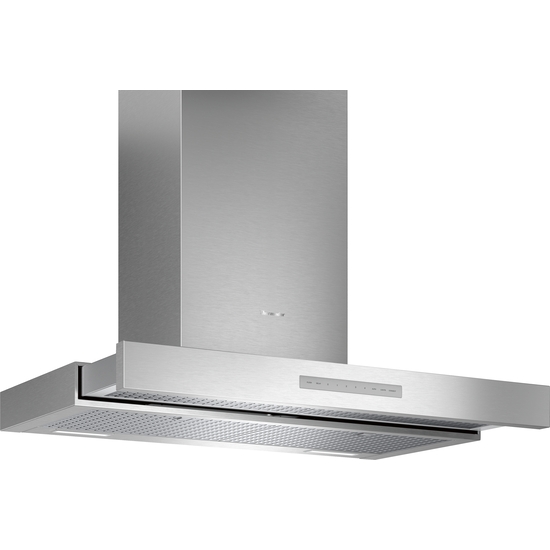

• Size: 36 Inch Wall Mount Range Hood
• Blower: 4-Speed/600 CFM for effective ventilation
• Control: Touch Control for easy operation
• Lighting: LED Lighting for clear and bright cooking area
• Filter: Hybrid Mesh Filter to capture grease and impurities
• Noise Reduction: Noise Control Deluxeâ„¢ for quieter operation
• Automatic Mode: Automatically adjusts fan speed based on cooking activity for optimal performance

Features

• Masterpiece® Chimney Drawer hoods blend luxury and performance, featuring a canopy that can be pulled forward or pushed back.
• Wi-Fi Enabled: allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
• Noise Control Deluxe™: notably reduce noise while hood is in use—so you can keep your focus on entertaining. Noise Control Deluxe™ utilizes perimeter filters and insulation to reduce noise.
• Delay Shut Off & Automatic Mode: features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
• LED Lighting: highlights your meal from first course to last with multi-level vivid LED Lighting.
• Sleek Electronic Touch Control Panel: convenient control that is easy-to-use and easy-to-clean.
