Specifications

• General

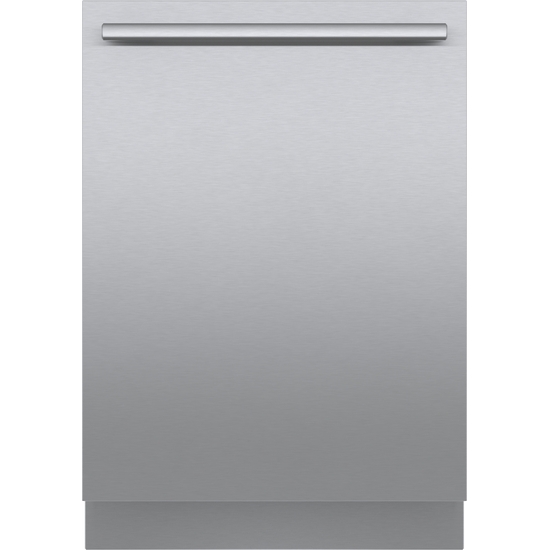

  • Product group: Dishwasher
  • Internal article number: DWHD770CFM
  • EAN code: 825225967118
  • Construction type: Built-in
  • Installation type: Built-under
  • Column installation: Yes
  • Type of control: Electronic
  • Type of control: Display;push-button;touch buttons
  • ChildLock: No
  • Removable work top: No
  • Door decor panel: Not possible
  • Tub material: Stainless steel
  • Current (A): 12
  • Volts (V): 120
  • Frequency (Hz): 60
  • Power cord length (cm): 170.0
  • Power Cord Length: 67''
  • Plug type: Nema5-15P
  • Length outlet hose (cm): 230
  • Height of the packed product (mm): 940
  • Width of the packed product (mm): 670
  • Maximum height for installation (mm): 890
  • Maximum width for installation (mm): 618
  • Third Rack: 3rd Rack 3.0
  • Brand: Thermador
  • SKU: DWHD770CFM
  • Hidden heating element: Yes
  • Watts (W): 1440
  • Adjustable plinth: No
  • Height of removable worktop (mm): 0
  • Maximum adjustability feet (mm): 30
  • Energy Efficiency Class: Tier 1
  • Depth of the packed product (mm): 710
  • Net weight (kg): 45.3
  • Five-level wash: Yes
  • Gross weight (kg): 49.5
  • Length outlet hose : 90 1/2''
  • Enter the minimum temperature for wash (°C): 45
  • Enter the maximum temperature for wash (°C): 71
  • Required cutout size (HxWxD) : 33 7/8'' x 24'' x 24''
  • Water softener: Yes
  • Number of wash cycles: 7
  • Maximum temperature for water intake (°C): 60
  • Drying system: Condensation Dry , Zeolite
  • Start delay options: Continuous
  • Depth with open door 90 degree (mm): 1231
  • Total annual energy consumption (kWh): 269
  • Minimum height for installation (mm): 860
  • Minimum width for installation (mm): 610
  • Maximum accepted water hardness: [50°DH]
  • Start delay time max (h): 24
  • Single basket washing: No possibility
  • Status indicator: End of program audible, Rem. time proj. white, Sanitized LED US, Water inlet
  • End of cycle sound: End of program audible
  • Salt light indicator: Yes
  • Rinse aid light indicator: Yes
  • List of programmes: 1 Hour, Auto, Hand Wash, Intensive, Normal, Pre-rinse, Quick Wash 45°C
  • Number of options: 7
  • Cycle Options: Half Load, HygienePlus, Intensive Zone, Remote Start, VarioSpeed, Zeo Dry
  • Automatic programmes: Yes
  • Safety device: Single Water Protection 24h
  • Adjustable upper rack: Rackmatic 3-stage
  • Basket with handle: Bottom basket, Top basket
  • Water Usage per Cycle: 3.5
  • Depth for installation (mm): 610
  • Energy Star® qualified: No
  • Reference programme: Eco
  • Home Connect Connectivity: Wi-Fi
  • Home Connect: Remote Monitoring and Control
  • Number of place settings: 16
  • Silence level (dBA): 42
  • Interior light: Yes
  • Net weight : 100.000
  • Digital countdown indicator: Yes
  • Stop delay or a start delay option: Start
  • Software update: No
  • UPC code: 825225967118
  • Available languages display: English
  • Total annual water consumption : 624
