Specifications

• General
  • Internal article number: CIT30YWBB
  • EAN code: 825225961338
  • Number of induction elements: 5
  • Automatic programmes: No
  • Main on/off switch: Yes
  • Sealed Burners: No
  • UPC code: 825225961338
  • Gross weight : 74.000
  • Product name / series name: Cooking zone ceramic
  • Type of control: Front;Touchscreen
  • Energy input: Electric
  • Total number of cooktop burners: 5
  • Number of gas burners: 0
  • Number of electric cooking zones: 1
  • Number of electric elements: 0
  • Number of radiant elements: 0
  • Number of electric warming zones: 0
  • Location of control panel: Front
  • Overall appliance dimensions (HxWxD) : 1/4''+4 1/8'' x 31'' x 21 1/4''
  • Type of frame: 4 Facettes
  • Current (A): 30
  • Volts (V): 208-240
  • Frequency (Hz): 60
  • Power cord length (cm): 96.0
  • Plug type: No Plug
  • Product packaging dimensions (HxWxD) : 6.77 x 26.77 x 36.45
  • dishwasher safe pan support: No
  • Height of the packed product (mm): 172
  • Maximum width for installation (mm): 731
  • Depth for installation (mm): 105
  • Net weight (kg): 28.0
  • Construction type: Built-in
  • Gross weight (kg): 33.5
  • Highlights: 17 power levels, freeInduction, Keep warm function, powerBoost
  • Location of the heating element: Flexible
  • Power of 1st heating element (kW in boost): [5.5]
  • Minimum distance from counter front : 2 1/4''
  • Number of halogen elements: 0
  • Power Cord Length: 37''
  • Dimension of the heating element: 673 ; 433
  • Power of the heating element: 3.5
  • Burners with booster: All
  • Product group: Hob
  • Power on indicator: No
  • Plate on indicator: 0
  • Ignition system: No
  • Safety device: Auto Safety Shutoff;Childproof Lock;Panel Lock;pan recognition;Pause Function;Power Management Function
  • Brand: Thermador
  • SKU: CIT30YWBB
  • Type of control: Electronic
  • Width of the packed product (mm): 680
  • Depth of the packed product (mm): 926
  • Minimum height for installation (mm): 505
  • Timer: Yes
  • Maximum height for installation (mm): 505
  • Minimum width for installation (mm): 731
  • Type of lid: Without
  • Minimum distance from rear wall : 2''
  • Required cutout size (HxWxD) : 4 1/8'' x 28 3/4'' x 19 7/8''
  • Type of regulation: Stepless energy regulated
  • Optional accessories: CHEFSPAN13, TCOOKSENSW, TEPPAN1013, TEPPAN1321, TGRILLPANX, TROASTERT
  • Net weight : 62.000

Description

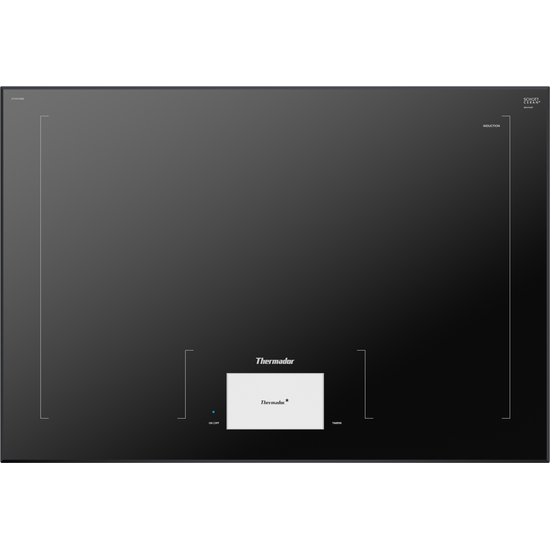

30 Inch Induction Smart Cooktop with 1 Element

Ceramic Glass Surface for a sleek, modern appearance

48 Inductor Elements for precise and efficient cooking

TeppanyakiPro® Function for grilling Teppanyaki-style dishes to perfection

Optional Cooking Sensor for enhanced control and convenience

High-performance cooking technology for fast and even heat distribution

Elegant design that complements contemporary kitchen aesthetics

Smart features offering intuitive operation and advanced cooking options

Features

• With Freedom® induction the entire surface of the cooktop can be used as one large cooking area. Up to 5 pots or pans can be heated simultaneously in any position and controlled using a full color touch screen. The Thermador Connected Experience by Home Connect®, provides added flexibility and personalization.
• Largest Usable Cooking Surface: with 30-inches of fully usable cooking surface, it's the largest on the market within its class.
• TeppanyakiPro® function: divides a teppanyaki grill plate into one heated and one non-heated area, so you can quickly move ingredients on and off of the heat.
• MoveMode®: easily move your pot across the cooktop, and the power level will automatically transfer.
• MyZone®: allows you to change the temperature to a preset power level simply by moving your cookware up, down or diagonal.
• Wi-Fi Enabled: allows for convenient remote monitoring with access to cooktop programs and settings via the Home Connect® app.
