Specifications

• Door
  • T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings : T3 Door Tint Reflective door tint in light blue finish for medium energy savings
  • T2 Door Tint Tinted door in reflective deep blue finish with high energy savings : T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
• Exterior
  • SSK Stainless steel kickplate factory installed : KEY Extra keys available for purchase
  • LHD Door reversal to left hand swing : Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
• Overview
  • Width: 17.75" (45 cm)
  • Depth: 23.5" (60 cm)
  • Depth with Handle: 25.25" (64 cm)
  • Capacity: 3.3 cu.ft. (93 L)
  • Bottles: 28 bottles
  • Canadian Electrical Safety: ETL-C
  • Amps: 1.25
  • Weight: 95.0 lbs. (43 kg)
  • Compressor Warranty: 5 Years
  • Depth with door at 90°: 39.75" (101 cm)
  • Defrost Type: Automatic
  • Voltage/Frequency: 115 V AC/60 Hz
  • Height of Cabinet: 31.63" (80 cm)
  • Door: Glass
  • Shipping Weight: 105.0 lbs. (48 kg)
  • Parts & Labor Warranty: 1 Year
  • Cabinet: Black
  • US Electrical Safety: ETL
• Wine Cellar
  • Door Swing: RHD
  • Reversible: Yes
  • Adjustable Shelves: Yes
  • Shelf Type: Wood
  • Shelf Qty: 4
  • Thermostat Type: Digital
  • Interior Light: Yes
  • Fan Type: Interior and Exterior
  • Refrigerant Type: R600a
  • Refrigerant Amount: 1.23 oz.
  • Low Side PSI: 50.0
  • Interior Height 1: 10.63" (27 cm)
  • Compressor Step Width: 14.25" (36 cm)
  • Level Legs: 4
  • Compressor Step Depth: 5.0" (13 cm)
  • Interior Depth 2: 18.0" (46 cm)
  • Number of Zones: 2
  • High Side PSI: 150.0
  • Interior Depth 1: 18.0" (46 cm)
  • Compressor Step Height: 5.25" (13 cm)
  • Temperature Range: 41º to 64ºF
  • Interior Height 2: 12.25" (31 cm)
  • Interior Width 2: 14.25" (36 cm)
  • Interior Width 1: 14.25" (36 cm)

Description

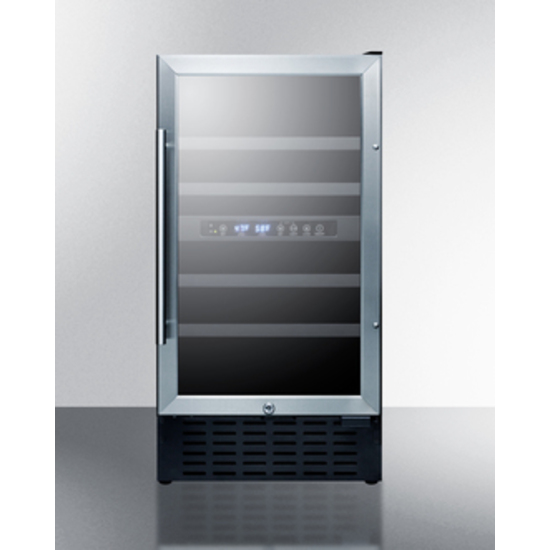

18-inch Undercounter Dual-Zone Wine Cellar

28-bottle capacity for optimal wine storage

Factory-installed lock for added security

Automatic defrost function to maintain efficient operation

Energy-efficient LED lighting to illuminate your wine collection

Digital thermostat and digital display for precise temperature control

CFC-free design for environmentally friendly operation

3.3 cu. ft. capacity to fit undercounter spaces

Black cabinet finish for a sleek and modern look

ADA compliant, ensuring accessibility for all users

Features

• Dual zone storage: Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
• ADA compliant: 32" height is designed to fit under lower ADA compliant counters
• Built-in capable: Make the best use of space by installing your appliance under the counter
• 28 bottle capacity: Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
• Glass door with stainless steel trim: Provides a full display of stored contents with a heat-safe double tempered design
• Factory installed lock: Keyed lock for a secure interior, with 2 keys included
• Digital thermostat: Electronic controls for precise temperature management.
• Digital display: Temperature readout can be shown in Celsius or Fahrenheit
• LED lighting: Gentle illumination for each temperature zone for an elegant presentation
• Automatic defrost: Reduced maintenance with the convenience of auto defrost
• Wooden shelves: 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
• Reversible door: Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
• Professional handle: Stainless steel handle completes the look
• Flush back: Space saving design
• Integrated door hinge: Hinge is flush with cabinet, adding no additional height to the unit
• Fully finished black cabinet: Allows the unit to be used freestanding
• 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
