Specifications

• Exterior
  • Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations : PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
  • HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix : DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
• Overview
  • Height of Cabinet: 34.0" (86 cm)
  • Door: Panel-Ready
  • Cabinet: Black
  • Canadian Electrical Safety: ETL-C
  • US Electrical Safety: ETL
  • Energy Usage/Year: 440.0kWh/year
  • Amps: 1.5
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 125.0 lbs. (57 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • Width: 29.5" (75 cm)
  • Depth: 24.13" (61 cm)
  • Capacity: 5.4 cu.ft. (153 L)
  • Defrost Type: Frost-Free
  • Shipping Weight: 135.0 lbs. (61 kg)
• Refrigerator-Freezer
  • Door Swing: French
  • Adjustable Shelves: Yes
  • Refrigerator - Capacity: 3.0 cu.ft
  • Refrigerator - Temperature Range: 36°F to 43°F
  • Freezer - Interior Depth: 16.5" (42 cm)
  • Freezer - Capacity: 2.4 cu.ft
  • Freezer - Shelf Type: Wire
  • Freezer - Shelf Qty: 3
  • Thermostat Type: Digital
  • Refrigerant Type: R600a
  • Refrigerator - Interior Height: 26.63" (68 cm)
  • Refrigerator - Interior Width: 12.0" (30 cm)
  • Refrigerator - Interior Depth: 17.63" (45 cm)
  • Refrigerator - Shelf Qty: 3
  • Freezer - Interior Height: 25.38" (64 cm)
  • Freezer - Interior Width: 10.38" (26 cm)
  • Refrigerant Amount: 1.45 oz.
  • High Side PSI: 270.0
  • Low Side PSI: 105.0
  • Level Legs: 2
  • Compressor Step Height: 5.5" (14 cm)
  • Freezer - Temperature Range: -4º to 4ºF
  • Compressor Step Width: 21.0" (53 cm)
  • Compressor Step Depth: 6.0" (15 cm)
  • Interior Light: Yes
  • Fan Type: Interior and Exterior
  • Refrigerator - Shelf Type: Glass

Description

The 30-inch Side-by-Side Refrigerator offers a 5.4 cu. ft. total capacity, providing ample storage space for food and beverages.

Features adjustable shelves and door shelves for customizable storage and easy organization.

Slotted floors promote efficient airflow, ensuring consistent cooling throughout the unit.

Equipped with a digital thermostat for precise temperature control, maintaining the ideal conditions for your food.

Includes door and temperature alarms to alert you if the door is left open or if the temperature goes out of range.

Sabbath Mode is included, ensuring compliance with specific religious practices.

CARB compliant, meeting air quality standards for a healthier environment.

Black cabinet finish adds a modern and sleek touch to your kitchen.

Features

• All-in-one design: Separate refrigerator and freezer sections with single compressor operation
• Built-in capable: Front-breathing system allows the unit to be used built-in

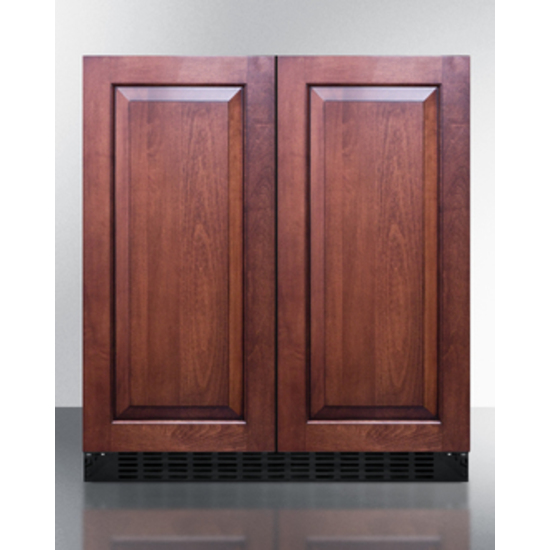

• Panel-ready doors: Integrated stainless steel door frame on each door accepts full overlay panels, allowing you to customize the door or blend it into your cabinetry design (panel dimensions: 30" H x 14 5/8" W at 3/4" thick; maximum weight: 10 lbs.)
• Frost-free operation: No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
• Digital thermostat: Refrigerator section includes a digital control panel to manage the fresh food compartment's temperature, with a clear readout in Celsius or Fahrenheit
• LED lighting: Interior LED lighting in both sections offers an attractive and energy efficient presentation
• Sabbath mode: Setting allows you to disable the digital displays, lights, and alarms for religious observance
• Adjustable shelves: Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation
• Open door alarm: Alarm will sound if either door is left open for over 60 seconds
• High temperature alarm: Audible alarm sounds if the interior temperature rises above the recommended range
• Slotted floors: Floor is specially designed with slots to allow you to store bottles safely on their sides
• Internal fans: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Sealed back: Space-saving design with no exposed coils in the rear offers easy cleanability
• Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Temperature memory function: In the event of power loss, the unit will retain its last temperature settings upon power recovery
• Fully finished black cabinet: Allows the unit to be used freestanding
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
