Specifications

• Exterior
  • Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. : LHD Door reversal to left hand swing
• Overview
  • Height of Cabinet: 34.5" (88 cm)
  • Depth: 23.38" (59 cm)
  • Width: 15.0" (38 cm)
  • Depth with door at 90°: 37.25" (95 cm)
  • Capacity: 3.2 cu.ft. (91 L)
  • Defrost Type: Automatic
  • Door: Glass
  • Cabinet: Black
  • US Electrical Safety: ETL
  • Depth with Handle: 25.0" (64 cm)
  • Bottles: 34 bottles
  • Amps: 1.5
  • Weight: 77.0 lbs. (35 kg)
  • Parts & Labor Warranty: 1 Year
  • Voltage/Frequency: 115 V AC/60 Hz
  • Compressor Warranty: 5 Years
  • Canadian Electrical Safety: ETL-C
  • Energy Usage/Year: 340.0kWh/year
  • Shipping Weight: 100.0 lbs. (45 kg)
• Wine Cellar
  • Thermostat Type: Digital
  • Interior Light: Yes
  • Fan Type: Interior and Exterior
  • Refrigerant Type: R600a
  • Refrigerant Amount: 1.06 oz.
  • High Side PSI: 277.0
  • Low Side PSI: 103.0
  • Interior Height 1: 26.0" (66 cm)
  • Interior Width 1: 12.0" (30 cm)
  • Interior Depth 1: 18.0" (46 cm)
  • Compressor Step Height: 4.5" (11 cm)
  • Compressor Step Width: 12.0" (30 cm)
  • Compressor Step Depth: 5.75" (15 cm)
  • Level Legs: 2
  • Temperature Range: 41°F to 64°F
  • Number of Zones: 1
  • Door Swing: RHD
  • Reversible: Yes
  • Shelf Qty: 5
  • Adjustable Shelves: Yes
  • Shelf Type: Glass and Wood

Description

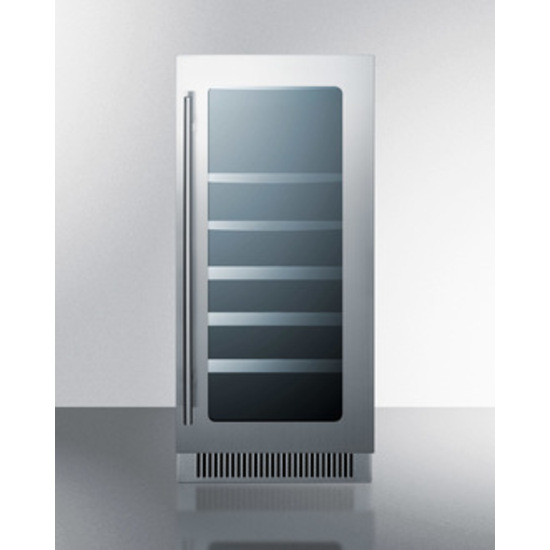

15 Inch Built-In Wine/Beverage Center with 34-bottle capacity and 3.2 cu. ft. of storage space

Low-E glass door provides insulation and UV protection for optimal storage conditions

Adjustable glass shelves for flexible storage options, accommodating both wine and beverages

Door and temperature alarms ensure your items remain at the ideal temperature and provide alerts when conditions are not ideal

Automatic defrost feature prevents frost buildup, maintaining efficient performance and a reliable cooling environment

Features

• Built-in capable: Make the best use of space by installing your appliance under the counter
• Fully finished black cabinet: Allows the unit to be used freestanding
• Low-e glass door: Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass
• Seamless stainless steel trim: Glass is framed by seamless 304 grade stainless steel
• Digital thermostat : Electronic controls for precise temperature management
• Digital display: Temperature readout can be shown in Celsius or Fahrenheit
• Stainless steel trimmed wooden shelves: Black wooden shelves feature stainless steel trim for an added touch of elegance
• Adjustable glass shelves: Spill-proof glass shelves make it easy to store and display craft beer bottles and cans
• White LED lighting: Unique white light offers elegant illumination for the jet black interior
• Professional handle: Vertically mounted handle in brushed stainless steel features a sleek 16mm diameter that suits many popular styles of cabinetry
• Reversible door: User-reversible door swing allows for more flexibility in placing the unit
• Stainless steel kickplate: Completes the professional look down to the toe kick
• Temperature alarm: Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
• Open door alarm: Audible alarm will sound if the door is left ajar
• Fan-forced cooling: Internal fan ensures the interior is evenly cooled from top to bottom
• Automatic defrost: Reduced maintenance and steady temperature performance
• Sealed back: Space saving design with easier cleanability
• Energy conservation mode: Lets you disable some of the electrical features to save on energy use
• Temperature Memory Function: Unit will retain its last settings when power is restored in the event of power loss
• 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
