Specifications

• Appliance networking
  • Automatic function Con@ctivity 2.0 :No
  • Miele@home :No
• Cleaning convenience
  • Easy to clean ceramic surface
• Construction type
  • Independent of oven
• Control Panel
  • Minute minder
  • AutoBoost
  • Keep-warm function
  • Individual setting options (e.g. acoustic signal tones)
  • Stop & Go function
  • Operation via touchpad sensors :Multiple direct dial
  • Pan/Pan-size sensors
  • Automatic switch-off for all rings
• Design
  • Elegant glass ceramic surface
  • Ceramic surface color :Black
  • Print design :LightPrint
  • Flush
• Fuel type
  • Fuel type :Induction
• General
  • Accessories : HBD 60-22,
  • Cleaning and Care Products : GP CA ST 0252 L,
  • Cleaning and Care Products : GP CL KM 0252 L
  • Accessories : GP GS KM 0011 M
• Indicators
  • Digital power level display
• PowerFlex rings
  • Number :2
  • Diameter in mm :150x230
  • TwinBooster in W :3850
• Ring details
  • No. of rings :4
• Ring-Left Centre
  • Type :Variable cooking zone
  • Diameter in mm :? 180-280
  • Booster in W :3100
  • Position :front left
  • Maximum number of pans with FlexTouch :2
  • Power rating in W :2500
• Ring-Rear centre right
  • Power rating in W :3550
  • Position :Rear centre right
  • Type :PowerFlex bridge
  • Booster in W :5000
  • Diameter in mm :230x390
  • TwinBooster in W :7700
• Ring-Right
  • Position :rear left
  • Type :Variable cooking zone
  • Diameter in mm :? 100-160
  • Power rating in W :1450
  • Booster in W :1900
• Safety
  • Lock function
  • Safety cut-out
  • Fault monitoring
  • Overheating protection
  • Residual heat indicator
  • System lock
• Standard accessories
  • Connection wire
• Technical Data
  • Weight in lbs. (kg) :46 (21)
  • Fuse rating in A :32
  • Number of phases :1
  • Built-in height with mains connection box in in.(mm) :4 7/8 (121)
  • Cutout dimensions (depth) in in.(mm) :20 1/2 (518)
  • Total connected load in kW :7.7
  • Wire length in ft (m) :3 (1.2)
  • Dimensions in in. (width) :30 5/8 (775)
  • Dimensions (depth) in in.(mm) :21 1/2 (544)
  • Cutout dimensions (width) in in.(mm) 28 5/8 (724)

Description

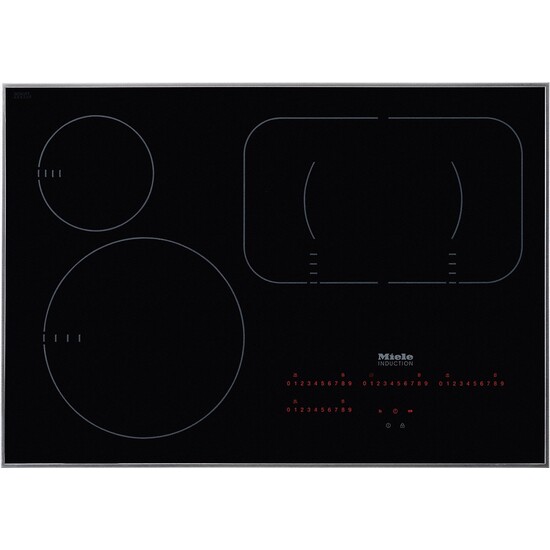

30-Inch Induction Cooktop with four cooking zones for versatile cooking options

Touch Controls for precise and easy operation

Sleek Black Ceramic Glass Surface offers a modern, stylish look and is easy to clean

Power Boost Function for rapid heating and quicker cooking times

Residual Heat Indicator provides safety by indicating when the surface is still hot

Child Lock for enhanced safety, preventing accidental adjustments

Energy-Efficient induction technology ensures rapid heating and precise temperature control

Timer Function allows you to set cooking times for added convenience

ADA Compliant for accessibility in the kitchen

Easy Installation and a perfect fit for standard kitchen designs

Features

• EasyClean ceramic glass:Food can no longer burn: Because the cooktop surface remains relatively cool, soiling can be removed easily.
• Turns off if no cookware is in place:Only on induction: If no pan is on a zone when the cooktop is switched on, the power supply is stopped immediately.
• Residual heat indicator:Practical: The residual heat indicator reminds you not to touch the cooking zones when they are still hot.
• Safety turn off:Clever: If a cooking zone operates at the same power level for an unusually long time, switch-off is automatic.
• Safety and system lock:Extremely useful: both functions prevent accidental or unauthorized switching on of the Cooktop.
• Overheating protection and fault monitoring:Protects the Cooktop: The cooktop automatically switches off in the case of extreme heat.
• Pan size recognition:Convincing: the size of the pan is recognized by the cooktop and energy supplied to this area only.
• Efficient and safe:A clear benefit: "no heat loss with induction, and the ceramic glass surface stays relatively cool."
• Stop & Go:So nothing will burn: With this function, all cooking zones can be reduced to power level one simultaneously.
• Keeping warm function:Food ready to serve: The keep warm function controls the temperature in the pan base and prevents food burning.
• Auto heat-up:Always at the right time: This function reduces the initial power boost to prevent burning.
• Versatile cooking zone configuration:For all sorts of cookware: Perfect for a wide variety of pans.
• Timer:It makes sense: This feature allows you to set a Minute minder.
