Specifications

• Certifications
  • ADA Compliant: ADA Compliant with feet fully extended
  • CEE Tier Rating: Tier I
  • Energy Star Qualified: ENERGY STAR® Qualified
  • UL: Yes
  • Prop65: Standard
• Controls
  • Control Location: Front
  • Control Type: Dials
  • Electronic Display Type: Cycle Indicator Lights
  • End Of Cycle Signal: Yes
  • Feedback-Status Indicators: Check Vent; Cool Down; Damp; Sensing; Wet
  • Eco Monitor/Efficiency Monitor: No
• Cycles
  • Number Of Dryer Cycles: 14
  • Drying Cycles Selections: Bulky Items; Delicates; Heavy Duty; Normal; Quick Dry; Regular; Sanitize; Steam Refresh; Timed Dry; Towels; Whites; Wrinkle Control
• Details
  • Quad Baffles: Yes
  • Fuel Type: Electric
  • Temperature Selection: Air Only; High; Low; Medium; Medium High
  • Pedestal Options: XHP1000XW; XHPC155XW; Yes
  • Door Opening Direction: Right
  • Dryer Interior Light: Yes
  • Lint Filter Indicator: No
  • Stackable: Yes
  • Drying Rack: Yes with online registration (SKU: W10322470A)
  • Maytag Commercial Components: No
  • Moisture Sensor: Yes
  • Automatic Dry Control: Yes
  • Cycle Time Remaining: Yes
  • Secondary Lint Filter: No
  • Selection Of Drying Levels: Less; More; Normal
• Dimensions
  • Net Weight: 157.6 pounds
  • Depth With Door Open 90 Degree: 51
  • Carton Depth: 32.5 inches
  • Carton Height: 40.75 inches
  • Carton Width: 28.5 inches
  • Gross Weight: 175 pounds
• Electrical
  • Power Cord Included: No
• Exterior Details
  • Reversible Door: Yes
  • Window: Yes
  • Door Style: Side Swing
• Installation Considerations
  • Four Way Venting: Yes
  • Long Vent: No
  • Maximum Vent Length: 64
  • Venting Direction: Left, Right, Bottom, Rear
• Interior Details
  • Dryer Drum Material: Stainless Steel
  • Lint Screen Location: Front
• Modifiers
  • Number Of Temperatures: 5
  • Number Of Dryness Levels: 3
• Options
  • Dryer Option Selections: Control Lock; Cycle Signal; Reduce Static; Remote Enable; Steam; Wrinkle Prevent; Wrinkle Prevent w/Steam
• Smart Compatibility
  • Connectivity: Amazon Alexa; Android; Google Assistant; Siri; iOS
  • Smart Appliance: Yes
  • Works With: App; Remote Access; Voice Controlled; WiFi

Description

Size & Capacity:

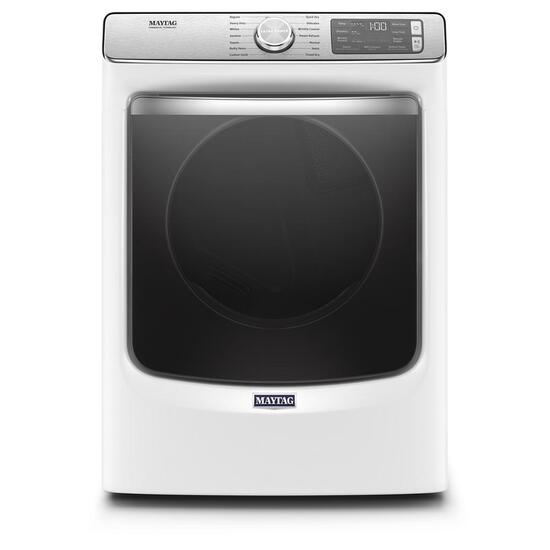

• 27-inch electric smart dryer
• 7.3 cu. ft. capacity, perfect for drying large loads efficiently

Drying Features:

• Extra Power Button boosts drying performance for thicker fabrics and larger loads by providing additional heat
• Advanced Moisture Sensing Plus detects moisture levels in the drum to adjust drying time and temperature for precise drying
• 4 Dry Cycles with various settings to suit different fabric types and drying needs
• Steam Options reduce wrinkles and odors for fresher clothes
• Quick Dry feature dries smaller loads in less time for added convenience
• Sanitize Cycle uses high heat to remove bacteria and allergens from fabrics

Convenience & Accessibility:

• Remote Start allows you to control and start the dryer remotely via smartphone for added convenience
• ADA Compliant ensures the dryer meets accessibility standards for individuals with disabilities

Efficiency & Compliance:

• ENERGY STAR® Certified for energy efficiency, helping to lower utility costs

Design & Aesthetics:

• Sleek White finish, complementing any modern laundry room décor

Features

• Extra Power: Boost drying power to help get thick fabrics drier the first time.*
• Smart Appliance: Stay in control and efficiently manage laundry from anywhere.* Remotely start or stop your appliance and get end of cycle notifications so no load is left behind. Troubleshoot select issues to avoid unnecessary service calls and help ensure dependable performance, year after year. Get personalized tips to help you best clean your clothing and maximize the power of your Maytag® appliances.
• Advanced Moisture Sensing Plus: Maytag packs in an industry-exclusive fourth sensor to deliver our most accurate drying on tough loads. Advanced Moisture Sensing Plus with an extra sensor monitors inside moisture and air temperatures to help evenly and completely dry large and bulky loads.
• Quick Dry Cycle: The Quick Dry cycle dries small loads fast. Clothes will be ready before you know it when paired with the Quick Wash cycle.
• Wrinkle Prevent Option with Steam: Don’t worry about forgetting to take laundry out of the dryer. The Wrinkle Prevent option tumbles clothes with steam for up to 150 minutes after the cycle ends to help prevent wrinkles from forming.
• Wrinkle Prevent Option
• Steam-Enhanced Dryer: These dryers use steam to relax stubborn wrinkles so your clothes come out looking their best. Look for steam-enhanced cycles and options to help prevent wrinkles, refresh clothes and reduce static.
• Sanitize Cycle: The Sanitize cycle uses extra-hot drying temperatures to remove up to 99.9% of three common household bacteria.*
• 7.3 Cu. Ft. Capacity: Dry even your largest loads with a spacious 7.3 cu. ft. capacity.
• Wrinkle Control Cycle: The Wrinkle Control cycle uses lower temperatures and defaults to using the Wrinkle Prevent option to help minimize wrinkles.
• Steam Refresh Cycle: Built to reduce wrinkles, the Steam Refresh cycle quickly revives clothes without the need for a full wash cycle.
• Reduce Static Option: The Reduce Static option cuts down on cling with the addition of a fine mist of water as clothes tumble at the end of the cycle.
• 10-Year Limited Parts Warranty on the Drive Motor and Drum: We don't just tell you a Maytag® dryer will get your clothes dry for years: we confidently back our dryers with a 10-year limited parts warranty* on the drive motor and drum.
• Maytag® Commercial Technology: Maytag® Commercial Technology ensures our dryers are built to last, coming standard with a durable motor and the dryer drum backed by a 10-year limited parts warranty*
• Remote start: Do laundry anywhere, anytime with your smartphone.* Set cycles with the option to choose from customized favorites, only available in the Maytag™ App, then start and stop the cycle remotely.
• Cycle notifications: Finished loads won’t be left behind with the Maytag™ App.* Get end of cycle notification on your smartphone with the option to Assign a Task to family members to keep laundry moving.
• Troubleshoot: Troubleshoot select issues without a service call. The Maytag™ App sends notifications of appliance error codes to help you diagnose the error and videos of select issues walk you through steps to solve the problem.*
• Assign a Task: Manage laundry from anywhere by assigning tasks to family members like transferring a load to the dryer or folding clean clothes through customized text messages. *
• Voice control available with Alexa and Google enabled devices (U.S. only.): Control your laundry room no matter what you’ve got on your hands with simple voice commands using a Google Assistant or Alexa-enabled device and the connected subscription.
• Favorites: Make your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.*
• Favorites: Create customized cycles and save them in the Maytag™ App. Instantly access Favorites from the app and send them to your washer or dryer to start the load remotely.*
• Smart Tips: Personalized Smart Tips based on your laundry activity help you best clean your laundry and effectively use your Maytag® appliances.*
• American Pride: We take pride in building strong, reliable appliances for your home. These dryers are proudly assembled by hard-working employees in Marion, Ohio.
• An American company for over 100 years: Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
• Dryer Rack: Place bulky or delicate items like sweaters, pillows, hats and tennis shoes on the dryer rack for tumble-free drying. The rack attaches inside the drum and stays in one place throughout the cycle. Rack ships separately after online product registration.*
