Specifications

• CERTIFICATION
  • AAFA: Yes
• DIMENSIONS
  • Carton (WxHxD): 30 1/16" x 79 11/32" x 32"
  • Depth with Door Open: 55"
  • Weight (Product/Carton): 311 lbs / 346 lbs
  • Product (WxHxD): 27" x 74 3/8" x 30 3/8"
• DRYER PROGRAMS
  • Temperature Settings: High, Low, Low/Medium, Medium, Medium High
  • Drying Levels: Damp, Less, More, Normal, Very
  • Dryer Options: Control Lock*, Drum Light*, Reduce Static, Wi-Fi* / Remote Start*, Signal*, Steam, Steam Fresh*, Energy Saver, Wrinkle Care
  • Dryer Programs: Bedding, Delicates, Downloaded, Heavy Duty, Normal, Small Load
  • No. of Dryer Options: 9
  • No. of Dryer Programs: 6
  • Manual Dry Times: 60 min., 50 min., 40 min., 30 min., 20 min.
• ENERGY
  • IMEF: 2.92
  • IWF: 2.9
  • CEE Tier: Tier 2
  • CEF: 3.94
  • ENERGY STAR® Certified: Yes
• FABRIC CARE FEATURES
  • Turbowash® Type: Turbowash® 360°
  • AI DD®: Yes
  • Turbowash®: Yes
  • SenseClean™ System: Yes
  • AI Sensor Dry™: Yes
  • Allergiene™ Cycle: Yes
  • Precise Temperature Control with Variable Heater: Yes
  • Sensor Dry: Yes
  • Steam Technology: Yes
  • Sanitary Cycle: Yes
• LAUNDRY APPLIANCE CAPACITY
  • Dryer Capacity: 7.4 cu.ft.
  • Washer Capacity: 4.5 cu.ft.
• LAUNDRY APPLIANCE CONVENIENCE FEATURES
  • Vent Type: Vented
  • Venting Option: 3 Way Venting
  • True Balance® Anti-Vibration System: Yes
  • 3 Minute Installation Check: Yes
  • Wrinkle Care Option: Yes
  • End of Cycle Signal: Yes
  • Auto Suds Removal: Yes
  • Reversible Door: No
  • Cabinet Vibration Sensor: Yes
  • Leveling Legs: Yes
  • FlowSense™ Duct Clogging Indicator: Yes
  • LoadSense: Yes
  • Internal Water Heater: Yes
  • 4 Adjustable Legs: Yes
  • Remaining Time Display/Status Indicator(s): Yes
  • Control Lock: Yes
  • 4 Tray Dispenser: Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
  • Drum Light: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES
  • Smart Pairing: Yes
  • SmartDiagnosis™ (v3.0): Yes
  • Tub Clean Coach: Yes
  • ThinQ Care™: Yes
  • Remote Start and Cycle Monitor: Yes
  • Wifi: Yes
  • ThinQ® Smart Technology: Yes
  • Energy Monitoring: Yes
• MATERIALS AND FINISHES
  • Door Cover: Tinted Round Tempered Glass
  • Cabinet: Painted Steel
  • Tub Rear: Painted
  • Door / Rim: Large Circle Chrome Rim
  • NeveRust™ Stainless Steel Drum: Yes
  • Control Panel: Plastic
  • Top Plate: Steel
  • All Available Colors: Black Steel (B), Candy Apple Red (R), Nature Green (G), White (W)
• MOTOR
  • Axis: Horizontal
  • Motor Type: Inverter Direct Drive Motor
  • Max RPM: 1300
• POWER SOURCE
  • Washer Electrical Requirements: 120V, 10Amps
  • Dryer Electrical Requirements: 240V, 30 Amps
  • Washer Power Source Type: Electric
  • Dryer Power Source Type: Electric
  • Ratings: CSA Listed
• SUMMARY
  • Type: Single Unit Front Load Washer and Dryer
  • Electric Dryer Option: WKEX200HBA
  • Delay Wash: Yes
  • Full Touch Electronic Control Panel with LED Display: Yes
  • Center Control®: Yes
  • Product Color: Black Steel (B)
  • Touch Buttons: Yes
  • Series: WashTower™
  • Gas Dryer Option: WKGX201HBA
• WARRANTY & UPC
  • Direct Drive Motor: 10 Years
  • Drum: 3 Years
  • Parts and Labor: 1 Year
  • UPC: 048231028486
• WASHER PROGRAMS
  • Water Levels: Load Sensing
  • Washer Programs: Bedding, Delicates, Downloaded, Heavy Duty, Normal, Speed Wash
  • Wash/Rinse Temps: Cold, Cool, Hot, Very Warm, Warm
  • Washer Options: Drum Light*, Tub Clean, Wi-Fi* / Remote Start*, Signal*, TurboWash®, Control Lock*, Extra Rinse, Prewash, Sanitary*, Steam
  • No. of Washer Programs: 6
  • Spin Speeds: High, Low, Medium, Medium / High, No Spin
  • No. of Spin Speeds: 5
  • No. of Soil Levels: 5
  • No. of Wash/Rinse Temps: 5
  • No. of Washer Options: 10

Description

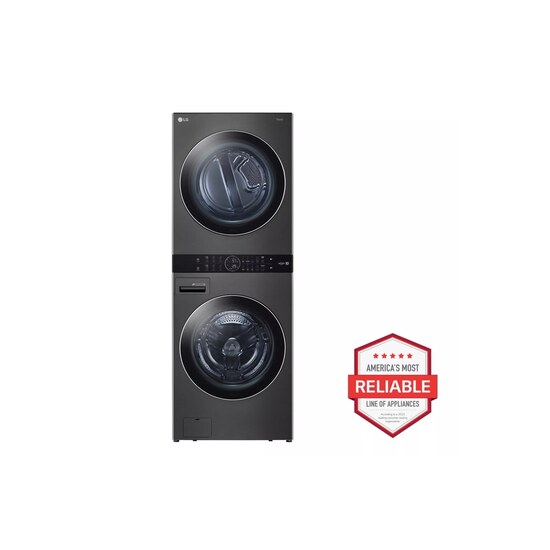

• Single Unit Front Load LG WashTower with Center Control combines a 4.5 cu. ft. washer and a 7.4 cu. ft. electric dryer in a space-saving vertical design.
• 4.5 cu. ft. Washer Capacity provides ample space for large loads, ensuring thorough cleaning.
• 7.4 cu. ft. Dryer Capacity accommodates big loads, offering efficient drying with even heat distribution.
• Center Control Panel for easy access and streamlined operation of both washer and dryer.
• Space-Saving Design ideal for homes with limited space, combining both washer and dryer into one compact unit.
• Advanced Features provide optimal cleaning and drying performance, ensuring convenience and energy efficiency.

Features

• ThinQ Offer: Get a free extra year limited warranty (up to $185 value) through 7/10/24. Terms apply?
• Ultra Large Capacity 4.5 cu.ft. Washer and 7.4 cu.ft. Dryer
• Single Unit WashTower™ Design
• Built-In Intelligence - AI Fabric Sensors/Smart Learner/Smart Pairing™
• Advanced Washing & Drying - TurboWash™ 360°/Allergiene™ wash cycle/ TurboSteam™
• ThinQ® Technology with ThinQ Care
• Tempered Glass Doors
