Specifications

• CERTIFICATION
  • AAFA: Yes
• DIMENSIONS
  • Carton (WxHxD): 30 1/16" x 79 11/32" x 32"
  • Depth with Door Open: 55"
  • Weight (Product/Carton): 311 lbs / 346 lbs
  • Product (WxHxD): 27" x 74 3/8" x 30 3/8"
• DRYER PROGRAMS
  • Temperature Settings: High, Low, Low/Medium, Medium, Medium High
  • Drying Levels: Damp, Less, More, Normal, Very
  • Dryer Options: Control Lock, Energy Saver, Less Time, More Time, Wi-Fi / Remote Start, Signal, Wrinkle Care
  • No. of Dryer Options: 7
  • No. of Dryer Programs: 6
  • Dryer Programs: Bedding, Delicates, Downloaded, Heavy Duty, Normal, Small Load
  • Manual Dry Times: 60 min., 50 min., 40 min., 30 min., 20 min.
• ENERGY
  • CEE Tier: Tier 2
  • CEF: 3.94
  • ENERGY STAR® Certified: Yes
  • IMEF: 2.92
  • IWF: 2.9
• FABRIC CARE FEATURES
  • AI DD®: Yes
  • Steam Technology: Yes
  • AI Sensor Dry™: Yes
  • Allergiene™ Cycle: Yes
  • Sensor Dry: Yes
  • Precise Temperature Control with Variable Heater: Yes
  • Sanitary Cycle: Yes
• LAUNDRY APPLIANCE CAPACITY
  • Washer Capacity: 4.5 cu.ft.
  • Dryer Capacity: 7.4 cu.ft.
• LAUNDRY APPLIANCE CONVENIENCE FEATURES
  • Vent Type: Vented
  • Venting Option: 3 Way Venting
  • 4 Tray Dispenser: Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
  • Leveling Legs: Yes
  • Remaining Time Display/Status Indicator(s): Yes
  • Internal Water Heater: Yes
  • End of Cycle Signal: Yes
  • Auto Suds Removal: Yes
  • Drum Light: Yes
  • Wrinkle Care Option: Yes
  • Reversible Door: No
  • Cabinet Vibration Sensor: Yes
  • 4 Adjustable Legs: Yes
  • LoadSense: Yes
  • True Balance® Anti-Vibration System: Yes
  • 3 Minute Installation Check: Yes
  • FlowSense™ Duct Clogging Indicator: Yes
  • Control Lock: Yes
• LAUNDRY APPLIANCE THINQ® SMART FEATURES
  • Tub Clean Coach: Yes
  • Remote Start and Cycle Monitor: Yes
  • Energy Monitoring: Yes
  • ThinQ® Smart Technology: Yes
  • SmartDiagnosis™ (v3.0): Yes
  • ThinQ Care™: Yes
  • Wifi: Yes
  • Smart Pairing: Yes
• MATERIALS AND FINISHES
  • Door Cover: Tinted Round Tempered Glass
  • Door / Rim: Large Circle Shiny Rose Gold Rim
  • Control Panel: Plastic
  • Aluminized Alloy Steel Drum: Yes
  • Cabinet: Painted Steel
  • Top Plate: Steel
  • All Available Colors: Graphite Steel (V), White (W)
  • NeveRust™ Stainless Steel Drum: Yes
• MOTOR
  • Motor Type: Inverter Direct Drive Motor
  • Axis: Horizontal
  • Max RPM: 1300
• OPTIONS/ACCESSORIES
  • LP Conversion Kit: 383EEL3002D
  • Side Venting Kit: 3911EZ9131X
• POWER SOURCE
  • Washer Power Source Type: Electric
  • Dryer Power Source Type: Electric
  • Ratings: CSA Listed
  • Dryer Electrical Requirements: 240V, 30 Amps
  • Washer Electrical Requirements: 120V, 10Amps
• SUMMARY
  • Product Color: Graphite Steel (V)
  • Series: WashTower™
  • Gas Dryer Option: WKG101HVA
  • Type: Single Unit Front Load Washer and Dryer
  • Electric Dryer Option: WKE100HVA
  • Center Control®: Yes
  • Touch Buttons: Yes
  • Delay Wash: Yes
  • Full Touch Electronic Control Panel with LED Display: Yes
• WARRANTY & UPC
  • Direct Drive Motor: 10 Years
  • Drum: 3 Years
  • Parts and Labor: 1 Year
  • UPC: 048231029353
• WASHER PROGRAMS
  • Water Levels: Load Sensing
  • No. of Wash/Rinse Temps: 5
  • Spin Speeds: High, Low, Medium, Medium / High, No Spin
  • Washer Programs: Bedding, Delicates, Downloaded, Heavy Duty, Normal, Speed Wash
  • No. of Spin Speeds: 5
  • No. of Washer Options: 9
  • No. of Soil Levels: 5
  • No. of Washer Programs: 6
  • Wash/Rinse Temps: Cold, Cool, Hot, Very Warm, Warm
  • Washer Options: Sanitary, Signal, Control Lock, Tub Clean, Wi-Fi / Remote Start, Delay wash, Extra Rinse, Pre-wash, Steam

Description

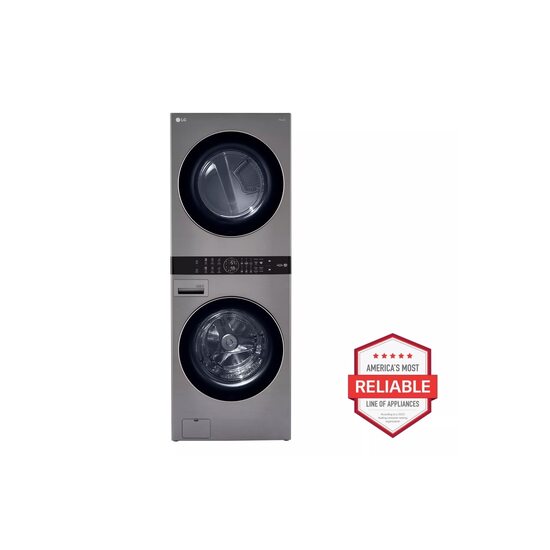

27 Inch Smart Electric WashTower with a 4.5 Cu. Ft. washer capacity and 7.4 Cu. Ft. dryer capacity

Single Unit WashTowerâ„¢ design combines washer and dryer in one compact structure for space-saving convenience

Built-in intelligence optimizes performance for efficient washing and drying

Allergieneâ„¢ Wash Cycle effectively removes common household allergens

Sensor Dry technology adjusts drying time to prevent over-drying and maximize energy efficiency

ENERGY STAR® certified for energy-efficient performance

Finished in sleek Graphite Steel for a modern, stylish look

Features

• Ultra Large Capacity 4.5 cu.ft. Washer and 7.4 cu.ft. Dryer let you clean larger loads
• Single Unit Vertical Design takes up half the floor space
• Our Sleekest Center Control® Yet –LED display makes it easier to reach the controls
• Built-in intelligence takes out the guesswork—AI technology selects optimal wash & dry settings
• Advanced washing performance with Allergiene™ Wash Cycle
• Get the ThinQ® app to access smart functions and ThinQ Care™ alerts
• Premium looks with real tempered glass doors designed to last
