Specifications

• APPEARANCE
  • Knobs: Stainless Steel
  • Oven Door Feature: InstaView® & WideView™ Window
  • All Available Colors: Stainless Steel
  • PrintProof™ Finish: Yes
  • Handle: Aluminum Extrusion
  • Cooktop Finish: Stainless Steel
• CAPACITY
  • Storage Drawer Capacity (cu. ft.): 0.8 cu.ft.
  • Oven Capacity (cu. ft.): 6.3 cu.ft.
• CONTROLS
  • Display: LED White
  • Automatic Safety Shut-Off: After 12 hours
  • Oven Control Type: Glass Touch
  • Cooking Complete Reminder Volume: 1. High 2. Low 3. Mute
  • Temperature Unit of Measure: Celsius, Fahrenheit
  • Sabbath Mode: Yes
  • Kitchen Timer: Yes
  • Timed Cook: Yes
  • Clock: 12 hr or 24 hr (option)
  • Cooktop Control Type: Front Control Knobs
  • Language: English
• COOKING APPLIANCE THINQ® SMART FEATURES
  • 3rd Party Recipe App: Sidechef
  • ThinQ Care™: Yes
  • Check & Control: Yes
  • SmartDiagnosis™: Yes
  • NFC Tag On: Yes
  • ThinQ® Smart Technology: Yes
  • Wi-Fi Connectivity: Yes
• COOKTOP
  • Burner/BTU - Right Front: 22000 / 16000
  • Burner/BTU - Left Front: 20000 / 12500
  • Burner/BTU - Left Rear: 9100 / 7500
  • Burner/BTU - Right Rear: 5000 / 4000
  • Type: Dual Fuel (240V Electric & Gas)
  • Burner/BTU - Center (LNG/LPG): 10, 000 (Oval-Burner)/10, 000
• DIMENSIONS/CLEARANCES/WEIGHT
  • Product Weight (lbs): 187 lbs
  • Overall Depth (in) - including handle: 29.37"
  • Shipping Weight (lbs): 230 lbs
  • Cabinet Width (in): 30"
  • Overall Width (in): 29.87"
  • Oven Interior Dimensions (in) (W x H x D): 24 7/8" x 21 3/8" x 20"
  • Height to Cooking Surface (in): 37.12"
  • Width: 30"
  • Overall Height (in): 37.25"
  • Carton Dimensions (in) (W x H x D): 32 1/2" x 44" x 30 1/2"
  • Drawer Dimensions (in) (W x H x D): 22 3/16" x 4 1/2" x 16 3/8"
• DRAWER FEATURES
  • Type: Storage (No Handle)
• LOWER OVEN FEATURES
  • # of lights: 7
• OVEN FEATURES
  • Oven Modes: Bake, Conv. Bake, Conv. Roast, Broil High,Broil Low, Warm, Proof, Air fry, Air sous-vide, Frozen Meal, EasyClean, SelfClean
  • GoCook Smart Oven Light: Yes
  • Convection (Watt): Sheath 2500W
  • Convection Fan: Dual Speed (High/Low)
  • Door Lock: Yes
  • Convection Type: ProBake Convection®
  • Slide-In: Yes
  • Broil Element: Sheath 4,200W / 6 Pass
  • Self Clean: Yes
  • Convection Conversion: Yes
• POWER/RATINGS
  • KW Rating at 208V: 3.2kw
  • Required Power Supply (amp): 40a
  • KW Rating at 240V: 4.2kw
  • Amp Rating at 208V: 15.2a
  • Amp Rating at 240V: 17.5a
• SUMMARY
  • Type: Dual Fuel Oven Slide-in
  • Series: LG STUDIO
  • LG STUDIO: Yes
• UPPER OVEN FEATURES
  • Broil element pass: 2
• VENTING SYSTEM
  • Power Levels: 1
  • Vent Air Flow (CFM): 5
  • Exhaust Grease Filter: 1
• WARRANTY/UPC
  • UPC: 195174020579
  • Parts and Labor: 2 Year Parts and Labor

Description

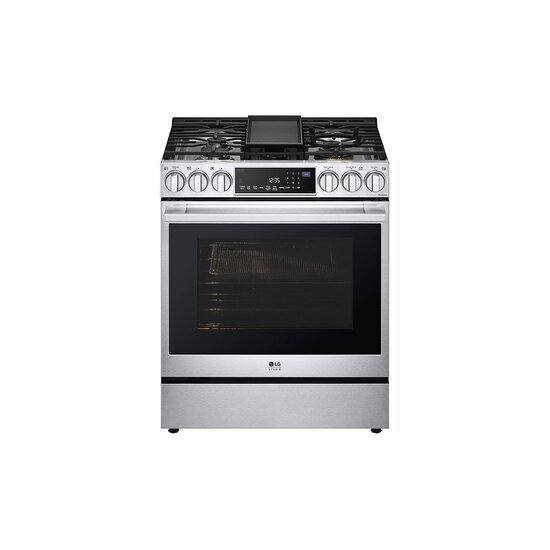

LG STUDIO 6.3 cu. ft. Smart wi-fi Dual Fuel Slide-in Range with ProBake Convection and EasyClean

Features

• Dual fuel—the power of a gas cooktop and the precision of an electric oven
• White LED knobs illuminate to let you know which burners are on
• Durable brass UltraHeat™ 22K BTU dual burner for even cooking, rapid boiling, and true simmers
• Probake Convection®, our best convection technology for even cooking on multiple racks simultaneously
• Enjoy multifunctional versatility with air fry and air sous vide modes
• White LED knobs illuminate to let you know which burners are on
• Knock twice on the InstaView® window to see inside
• Speed clean your oven with our 10-Minute EasyClean® cycle or use self-clean for a deep clean
