Specifications

• Certifications
  • UL: Yes
  • Prop65: Standard
• Controls
  • Display Color: Red; White
  • Electronic Display Type: Digital
• Cooktop Details
  • Cooktop Control Knob Type: Metal
  • Cooktop Control Location: Front
  • Cooktop Control Type: Knobs
  • Griddle Included: Included
  • Heating Element On Indicator Light: No
  • Hot Surface Indicator Light: No
  • Cooktop Control Knob Color: Stainless Steel
  • Cooktop Surface Color: Black
• Details
  • Range Configuration: Double Oven
  • Range Drawer Type: None
  • Automatic Convection Conversion Temperature Adjust: Yes
  • Fuel Type: Gas
  • Oven Configuration: Double Oven
  • Range Type: Freestanding Double Oven
  • Oven Selections: Control Lock; Cook Time Indicator; Delay Start; Easy Convect Conversion; Keep Warm Setting; Proofing; Sabbath Mode; Slow Cook
  • Power On Indicator Light: Yes
  • Power Outage Compatible: No
• Dimensions
  • Depth Closed Including Handles: 28.5
  • Depth With Door Open 90 Degree: 45.5
  • Lower Oven Capacity: 3.9
  • Lower Oven Interior Depth: 18.75
  • Lower Oven Interior Height: 14.88
  • Upper Oven Capacity: 2.1
  • Upper Oven Interior Height: 7.375
  • Upper Oven Interior Depth: 19.25
  • Upper Oven Interior Width: 25
  • Carton Depth: 30.25 inches
  • Gross Weight: 244 pounds
  • Net Weight: 223.6 pounds
  • Lower Oven Interior Width: 25
  • Carton Height: 49.5 inches
  • Carton Width: 30.75 inches
• Electrical
  • Power Cord Included: No
• Element/Burner Details
  • Center Rear Element-Burner Power: 7,350 BTU
  • Cooktop Element Style: Sealed Burner
  • Left Front Element-Burner Type: Burner
  • Left Rear Element-Burner Power: 5,000 BTU
  • Left Rear Element-Burner Type: Burner
  • Number Of Cooking Element-Burners: 5
  • Right Front Element-Burner Power: 10,000 BTU
  • Right Rear Element-Burner Power: 5,000 BTU
  • Right Rear Element-Burner Type: Burner
  • Center Rear Element-Burner Type: Oval Burner
  • Left Front Element-Burner Power: 17,000 BTU
  • Right Front Element-Burner Type: Burner
• Exterior Details
  • Door Type: Glass Window
  • Oven Window Size: Large
  • Handle Material: Metal
  • Oven Control Type: Electronic Touch
  • Oven Control Location: Backguard
  • Handle Color: Stainless Steel
• Grate Details
  • Grate Details: Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
  • Number Of Grates: 2
• Oven Details
  • Bake Element Power: 10,000 BTU Upper-16,000 BTU Lower
  • Broiler Element Power: 10,000 BTU-Upper
  • Convection Element Power: 500
  • Hidden Bake Element: Yes
  • Number Of Oven Lights: 1
  • Oven Cleaning Type: Self-Cleaning
  • Oven Cooking System: Thermal Upper-Convection Lower
  • Oven Light Type: Incandescent
  • Number Of Oven Racks: 1 Upper-2 Lower
  • Convection Element Type: Fan
  • Convection Functions: Bake; Roast
  • Interior Color: Grey
  • Broiler Location: Top of Oven
  • Number Of Rack Guides: 2 Upper-5 Lower
  • Oven Rack Type: 1 Gliding Roll-Out, 2 Heavy Duty

Description

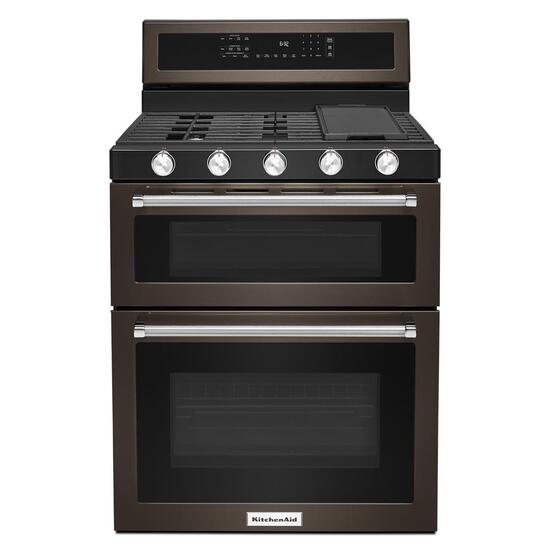

30 Inch Freestanding Double Oven Gas Range with 5 sealed burners

6.0 Cu. Ft. Total Oven Capacity for versatile cooking options

EasyConvectâ„¢ system for even convection cooking with automatic heat adjustment

SatinGlide® Rack for smooth and easy rack movement

Sealed Burners for easy cleanup and enhanced safety

Dual Oven Design allows for simultaneous cooking at different temperatures

Convection Cooking for faster, more even baking and roasting results

Professional-Style Performance with high BTU burners for powerful cooking

Features

• Even-Heat™ True Convection: features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
• 6.0 Cu. Ft. Total Capacity: Combined upper and lower oven capacities provide more room to cook multiple dishes at the same time.
• Professionally-Inspired Design: combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
• 5 Burners (17k, 10k, 7.3k, 5k, 5k): provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
• EasyConvect™ Conversion System: Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
• Glass Touch Controls: Offer an intuitive, easy-to-use touch screen experience.
• Glass-Touch Controls: Intuitive controls are activated by a light touch, look elegant and allow for easy cleaning.
• SatinGlide® Rack: Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
• Hidden Bake: Covers up the baking element, making it easier to wipe away spills.
