Specifications

• Certifications
  • Prop65: Standard
  • Energy Rating: 306
  • Energy Rating (Kwh/Year): 306
  • UL: Yes
• Controls
  • Display Color: Red; White
  • Electronic Display Type: Digital
• Cooktop Details
  • Cooktop Control Knob Type: Metal
  • Cooktop Control Location: Front
  • Cooktop Control Type: Knobs
  • Cooktop Surface Material: Stainless Steel
  • Heating Element On Indicator Light: No
  • Hot Surface Indicator Light: No
  • Cooktop Surface Color: Stainless
  • Cooktop Control Knob Color: Stainless Steel
• Details
  • Oven Selections: Delay Start; Easy Convect Conversion; Sabbath Mode
  • Power On Indicator Light: Yes
  • Range Configuration: Double Oven
  • Automatic Convection Conversion Temperature Adjust: Yes
  • Fuel Type: Dual Fuel
  • Oven Configuration: Double Oven
  • Power Outage Compatible: No
  • Range Drawer Type: None
  • Range Type: Freestanding Double Oven
• Dimensions
  • Lower Oven Interior Depth: 18.75
  • Depth With Door Open 90 Degree: 45
  • Lower Oven Capacity: 4.2
  • Lower Oven Interior Height: 16
  • Lower Oven Interior Width: 25
  • Upper Oven Capacity: 2.5
  • Upper Oven Interior Depth: 19.25
  • Upper Oven Interior Width: 25
  • Carton Width: 30.75 inches
  • Carton Depth: 30.25 inches
  • Carton Height: 49.5 inches
  • Depth Closed Including Handles: 28.5
  • Upper Oven Interior Height: 8.5
  • Gross Weight: 260 pounds
  • Net Weight: 239.6 pounds
• Electrical
  • Power Cord Included: Yes
• Element/Burner Details
  • Center Rear Element-Burner Power: 7,350 BTU
  • Center Rear Element-Burner Type: Oval Burner
  • Left Front Element-Burner Power: 17,000 BTU
  • Left Rear Element-Burner Type: Burner
  • Right Rear Element-Burner Type: Burner
  • Cooktop Element Style: Gas Burner
  • Left Front Element-Burner Type: Burner
  • Left Rear Element-Burner Power: 5,000 BTU
  • Number Of Cooking Element-Burners: 5
  • Right Front Element-Burner Power: 10,000 BTU
  • Right Front Element-Burner Type: Burner
  • Right Rear Element-Burner Power: 5,000 BTU
• Exterior Details
  • Oven Control Type: Electronic Touch
  • Oven Window Size: Large
  • Door Type: Metal & Glass
  • Oven Control Location: Backguard
  • Handle Color: Stainless Steel
  • Handle Material: Metal
• Grate Details
  • Grate Details: Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
  • Number Of Grates: 2
• Oven Details
  • Convection Element Type: Fan
  • Hidden Bake Element: Yes
  • Number Of Oven Lights: 1
  • Number Of Rack Guides: 2 Upper-5 Lower
  • Oven Cleaning Type: AquaLift® Self Clean
  • Interior Color: Blue
  • Oven Rack Type: 1 Gliding Roll-Out, 2 Heavy Duty
  • Convection Element Power: 1,600
  • Convection Functions: Bake; Broil; Roast
  • Oven Cooking System: Thermal Upper-Convection Lower
  • Oven Light Type: Incandescent
  • Number Of Oven Racks: 1 Upper-2 Lower
  • Bake Element Power: 2,000 W Both
  • Broiler Element Power: 3,600 W Both
  • Broiler Location: Top of Oven

Description

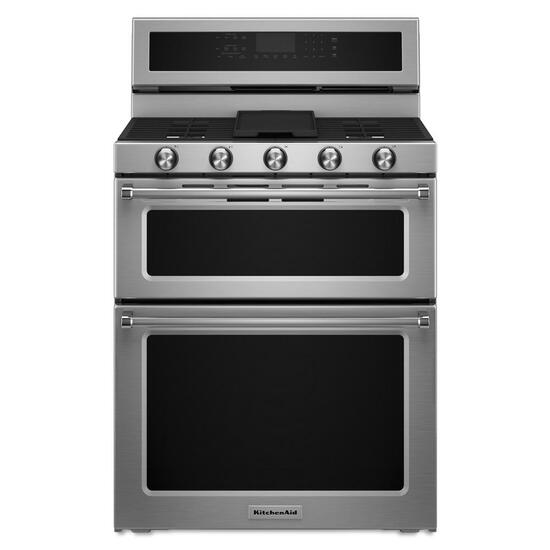

Size & Configuration: 30-inch Freestanding Dual Fuel Range

Burners: 5 sealed burners, including a 17,000 BTU burner for high-heat cooking

Oven Capacity: 6.7 cu. ft. combined oven capacity for large cooking needs

Cooking Technology: Even-Heat True Convection for consistent, evenly baked results

Versatility: Includes a Steam Rack for steaming during cooking

Rack System: SatinGlide Rack for smooth, effortless movement of heavy cookware

Controls: Glass Touch Controls for an intuitive and modern cooking experience

Features

• Steam Rack: Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
• Professionally-Inspired Design: combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
• Even-Heat™ True Convection: features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
• 6.7 Cu. Ft. Total Capacity: Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
• 5 Burners (17k, 10k, 7.3k, 5k, 5k): provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
• EasyConvect™ Conversion System: Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
• Glass Touch Controls: Offer an intuitive, easy-to-use touch screen experience.
• Glass-Touch Controls: Intuitive controls are activated by a light touch, look elegant and allow for easy cleaning.
• SatinGlide® Rack: Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
• Product Overview: Learn more about the KitchenAid® Double Oven Range
