Specifications

• -
  • Energy Star® Qualified: ENERGY STAR® Qualified
  • Dishwasher Rack Material: Nylon
  • Kosher Consumer Friendly: No
  • Decibel Level (Dba): 44
• Certifications
  • ADA Compliant: Yes (US Only)
  • Prop65: Standard
  • Energy Rating: 240
  • Star K Certified: No
  • CUL: Yes
  • Energy Rating (Kwh/Year): 240
  • Energy Star Qualified: ENERGY STAR® Qualified
  • NSF Certified: Yes
• Controls
  • End Of Cycle Signal: Yes
  • Automatic Temperature Controls: Yes
  • Control Location: Top
  • Status Light: No
  • Control Type: Electronic Touch
• Cycles
  • Number Of Wash Cycles: 5
• Details
  • Dispensers: Detergent and Rinse Aid
  • Hoses Included: Yes, Drain
  • Number Of Place Settings: 14
  • Drying System Type: Open Door System
  • Number Of Washarms: 3
  • Dishwasher Cycle Selection: Express Wash; Normal; ProWash™; Rinse; Tough
  • Dishwasher Option Selections: Delay; Door Open Dry; Extended Dry; Hi Temp Wash; Sani Rinse; Top Rack Wash
  • Tub Material: Stainless Steel
  • Water Filtration: Yes
  • Built-In Water Softener: Yes
  • Decibel Level: 44
  • Rinse Aid Dispenser Level Indicator: No
  • Dishwasher Type: Built-In
  • Number Of Racks: 2
  • Number Of Wash Levels: 3
  • Rack Material: Nylon
  • Sensor: Yes
  • Sound Package: Yes
  • True Hold Door: Yes
  • Tub Style: Built-in Tall Tub 24in.
  • Wash System: Filter
  • Wash System Type: Removable Filter
• Dimensions
  • Cutout Depth: 22.875
  • Cutout Height: 32.313
  • Carton Height: 35.82 inches
  • Net Weight: 81.98 pounds
  • Cutout Width: 23.625
  • Depth Closed Excluding Handles: 21.875
  • Depth Closed Including Handles: 24.625
  • Depth Excluding Doors: 21.875
  • Carton Depth: 26.57 inches
  • Carton Width: 24.6 inches
  • Gross Weight: 86.2 pounds
  • Depth With Door Open 90 Degree: 47.25
• Electrical
  • Power Cord Included: No
• Exterior Details
  • Door Style: Panel Ready
  • Magnetic Door: Yes pounds
  • Window: No
  • Handle Material: N/A
  • Control Panel Color: Black
  • Handle Color: N/A
  • Toe Panel Color: Black
• Oven Details
  • Lower Rack Glides: Non Ball Bearings
  • Lower Rack Utility Basket: Yes
  • Interior Light: No
• Performance Details
  • Motor Horsepower: 9/10 HP
• Rack Details
  • Lower Rack Extras: Two Caddies
  • Lower Rack Fold-Down Tines: No
  • Second Level Rack Adjustable: Yes
  • Second Level Rack Cushion-Tip Tines: No
  • Second Level Rack Extras: 4 Plastic Cup Shelf Overmolded
  • Second Level Rack Fold-Down Tines: No
  • Third Level Rack Adjustable: No
  • Third Level Rack Glides: N/A
  • Third Level Rack Removable: N/A
  • Third Level Rack Type: NA
  • Lower Rack Style: Straight
  • Lower Rack Cushion-Tip Tines: No
  • Second Level Rack Glides: Non Ball Bearings
• Silverware Basket Details
  • Silverware Basket Location: Bottom Rack
  • Silverware Basket Type: Full Length Splittable
  • Culinary Basket: Yes
  • Silverware Basket Covers: Yes
• Smart Compatibility
  • Connectivity: No
  • Works With: No

Description

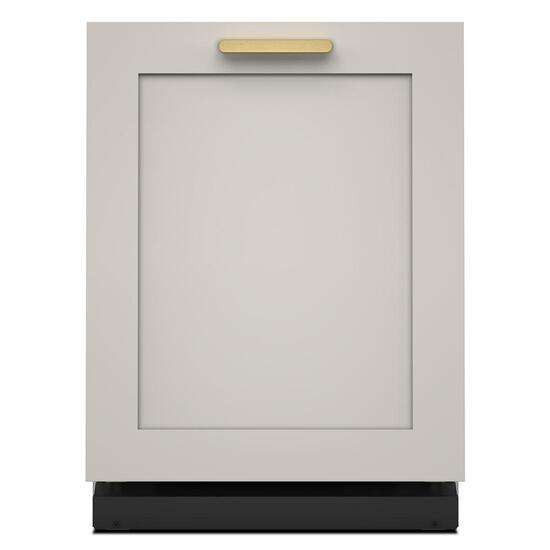

Panel Ready Design: Fully integrated dishwasher with a sleek, customizable panel-ready front that blends seamlessly into your kitchen cabinetry.

14 Place Setting Capacity: Ample space to accommodate 14 place settings, ideal for larger families or frequent entertainers.

Quiet Operation: Operates at a low 44 dBA, providing a quiet cleaning experience without disrupting your household.

5 Wash Cycles: Includes versatile wash cycles, with the ProWashâ„¢ cycle automatically adjusting to ensure optimal cleaning results for all types of dishes.

ProWashâ„¢ Cycle: Advanced cycle that uses sensors to determine the ideal wash settings based on load size and soil level for superior cleaning.

Door-Open Dry System: Uses a fan to help expel moisture and enhance drying performance, ensuring your dishes are dry and ready to put away.

Triple Filtration System: Three-stage filtration ensures cleaner water and prevents food particles from redepositing onto dishes.

ADA Compliant: Designed to meet ADA standards, ensuring accessibility for individuals with mobility challenges.

ENERGY STAR® Certified: Energy-efficient operation that helps reduce energy consumption while maintaining exceptional performance.

Features

• Flush Design: Allows dishwasher to fit evenly with countertops and cabinetry to help give the kitchen a seamless look and feel.
• Flush Design: Allows dishwasher to fit evenly with countertops and cabinetry to help give the kitchen a seamless look and feel.
• Door-Open Dry System: Automatically opens after the cycle to allow hot air out and fresh air to circulate within, making it KitchenAid brand's most energy efficient dry system*.
• Triple Filtration System: Uses three levels of filtration to remove food particles during the wash and rinse cycles. This ensures clean water circulates through the wash arms and onto dishes, even with dirty cookware.
• Panel-Ready Design: Allows you to install a custom front panel and handle over the dishwasher door, helping to create a seamless, custom look with kitchen cabinetry.*
• Door-Open Dry System: Automatically opens after the cycle to allow hot air out and fresh air to circulate within, making it KitchenAid brand's most energy efficient dry system*.
• Triple Filtration System: Uses three levels of filtration to remove food particles during the wash and rinse cycles. This ensures clean water circulates through the wash arms and onto dishes, even with dirty cookware.
• 14 Place Settings: Fit in the dishwasher all at once with two full levels of adjustable rack space that make room for your pots, pans, glassware and plates. Easily clean whatever you cook up, from prep to party.
• Panel-Ready Design: Allows you to install a custom front panel and handle over the dishwasher door, helping to create a seamless, custom look with kitchen cabinetry.*
• Leak Identification System: Helps detect most types of leaks and includes a drip tray underneath. If the system detects a problem, the dishwasher can stop filling, drain the tub and alert that service is needed.*
• ProWash™ Cycle: Uses sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads, because no two meals or the dishes that result are exactly the same.
• Integrated Water Softener: Helps in preventing scale buildup and water streaks in homes without soft water systems. Self-regenerating salt system should be activated upon installation if desired.*
• 14 Place Settings: Fit in the dishwasher all at once with two full levels of adjustable rack space that make room for your pots, pans, glassware and plates. Easily clean whatever you cook up, from prep to party.
• 14 Place Settings: Fit in the dishwasher all at once with two full levels of adjustable rack space that make room for your pots, pans, glassware and plates. Easily clean whatever you cook up, from prep to party.
• Durable Stainless Steel Interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors, while retaining heat to help improve drying.
• 44 dBA: Provides quiet cleaning without compromising performance, so there’s no need to wait to run a wash cycle while entertaining and enjoying meals, even in open concept kitchens.
• 44 dBA: Provides quiet cleaning without compromising performance, so there’s no need to wait to run a wash cycle while entertaining and enjoying meals, even in open concept kitchens.
• Extended Dry Option: Extends the drying cycle for loads that need extra drying performance by adding a hot rinse to the final cycle.
• Extended Dry Option: Extends the drying cycle for loads that need extra drying performance by adding a hot rinse to the final cycle.
• Durable Stainless Steel Interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors, while retaining heat to help improve drying.
• Durable Stainless Steel Interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors, while retaining heat to help improve drying.
• 4 Fold-Down Stemware Holders: Secure wine glasses along both sides of the middle rack to prevent them from moving around during the wash cycle. The space on top of the shelf also accommodates small cups or longer items like utensils and spatulas.
• 4 Fold-Down Stemware Holders: Secure wine glasses along both sides of the middle rack to prevent them from moving around during the wash cycle. The space on top of the shelf also accommodates small cups or longer items like utensils and spatulas.
• Top Controls: Are tucked away on top of the dishwasher door for a clean look to match your kitchen style.
• Adjustable Upper Rack: Adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.
• Adjustable Upper Rack: Adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.
• End-of-Cycle Signal: Sounds once when wash is done.
• End-of-Cycle Signal: Sounds once when wash is done.
• ADA Compliant (US Only): This dishwasher meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. (US Only)
• Energy Star® Certified: To exceed government standards for energy efficiency, supporting sustainability and helping to save money on utility bills.
