Specifications

• -
  • Combination Match With Oven: KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
• Certifications
  • ADA Compliant: ADA Height and Side Reach Compliant
  • UL: Yes
  • Prop65: Standard
• Controls
  • Control Location: Front
  • Control Type: Knobs
  • Infinite Heat Controls: Yes
• Cooktop Details
  • Digital Display: No
  • Griddle Included: Optional Accessory
  • Hot Surface Indicator Light: No
  • Ignition Type: Direct Spark Ignition
  • Number Of Open Bays: N/A
  • Cooktop Surface Material: Stainless Steel
  • Cooktop Surface Color: Color Coordinated
  • Heating Element On Indicator Light: No
• Details
  • Automatic Pan Detection: No
  • Installs Over Built-In Oven: Yes
  • Combinations With Oven: KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
  • Automatic Pan Size Adjustment: No
  • Cooktop Configuration: All Burners
  • Fuel Type: Gas
  • LP Convertible: Yes - Kit Included
  • Power Outage Compatible: Yes
• Dimensions
  • Cutout Depth: 19.813
  • Cutout Width: 35.188
  • Cutout Width Min: 34.875
  • Carton Depth: 25 inches
  • Carton Height: 12.04 inches
  • Net Weight: 0 pounds
  • Cutout Depth Min: 19.5
  • Carton Width: 44.41 inches
  • Gross Weight: 69 pounds
  • Cutout Depth Max: 20
  • Cutout Height: 5.25
  • Cutout Width Max: 35.625
• Electrical
  • Power Cord Included: Yes
• Element/Burner Details
  • Center Element Burner Type: Even Heat Dual
  • Center Rear Element-Burner Power: 20,000 BTU
  • Center Rear Element-Burner Type: Professional Dual Tier
  • Cooktop Type: Standard
  • Left Front Element-Burner Power: 10000 BTU
  • Center Element Burner Power: 20,000 BTU
  • Left Rear Element-Burner Type: Simmer
  • Power Boost: No
  • Right Front Element-Burner Power: 10,000 BTU
  • Left Rear Element-Burner Power: 6,000 BTU
  • Number Of Cooking Element-Burners: 5
  • Right Rear Element-Burner Power: 7,000 BTU
• Exterior Details
  • Knob Type: Metal
  • Knob Color: Stainless Steel
• Grate Details
  • Number Of Grates: 3
  • Grate Details: Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
• Ventilation Details
  • Downdraft Vent: No

Description

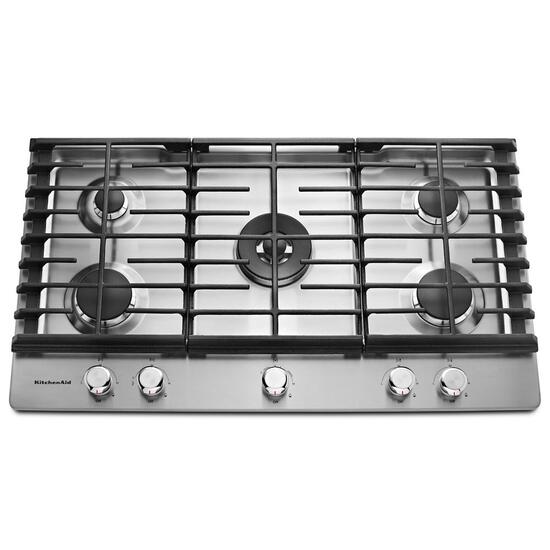

36-inch gas cooktop with five sealed burners for versatile cooking options

Professional dual-ring burner for high heat output and even cooking

Even-Heatâ„¢ simmer burner designed for precise low-heat cooking

Continuous full-width cast-iron grates for seamless movement of cookware

Metal control knobs for durability and precise heat adjustments

CookShieldâ„¢ Finish reduces residue buildup, keeping your cooktop looking new

Electronic ignition system for reliable burner lighting

Includes LP conversion kit for flexible installation and fuel options

Features

• 20,000 BTU Professional Dual Ring Burner: Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
• 6,000 BTU Even-Heat™ Simmer Burner: A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
• CookShield Finish: protects the cooktop from stains that may
• Electronic Ignition: Automatically lights burners so no standing pilot light is needed
• Full-Width Cast-Iron Grates: Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
• Multi-Finish Knobs: Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
• LP Conversion Kit: Allows you to convert the cooktop so it can be used with LP gas.
