Specifications

• ACCESSORIES
  • LP Conversion Kit : Included
• APPEARANCE
  • Cooktop Burner Grate Color : Black Gloss
  • Oven Door Features : Big View Oven Window
  • Control Knobs : White
  • Color Appearance : White
  • Frameless Oven Door(s) : White Glass
  • Handle Color : White
• CAPACITY
  • Total Capacity (cubic feet) : 4.8 cu ft
• FEATURES
  • Configuration : Cordless Range with Broiler Drawer
  • Porcelain-Enameled Subtop : Yes
  • Ignition System : Cordless Ignition
  • Burner - Right Rear : 5,000 BTU Precise Simmer
  • Fuel Type : Natural Gas (factory set)
  • OU Certified : No
  • Cooktop Burner Type : Sealed
  • Slide - Out Broiler Drawer : Drop Down Door
  • Cooktop Type : Standard Grates
  • Valves (Degree of Turn) : 140
  • Burner - Left Front : 9,500 BTU
  • Control Location : Front
  • Oven Rack Positions (Single or Upper/Lower) : 6
  • Burner - Left Rear : 9,500 BTU
  • Drawer Type : Broiler Drawer
  • One-Piece Drip Pans : Optional Accessory
  • Burner - Right Front : 13,000 BTU
  • Cooktop Surface : Porcelain-Enamel
  • Leveling System : 4 Leveling Legs
  • Cooking Technology : Traditional
  • Oven Rack Features : 2 Flat Nickel Racks
  • Cooktop Burner Grate Material : Heavy Steel
  • Sabbath Mode : Yes
  • Oven Cleaning Type : Standard Clean
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 13.0; (2) 9.5, (1) 5.0
  • Top Burner BTU Rating - LP (000's BTU's) : (2) 9.5; (1) 13.0; (1) 5.0
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 18.0 Bake / 18.0 Broiler
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 16.0 Broiler
  • Volts/Hertz/Amps : Standard 9V battery
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Net Weight : 150 lb
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 18-1/2 x 19
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Depth with Door Open : 46.375 in
  • Overall Width : 30 in
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 170 lb
  • Overall Depth : 28.75 in
  • Overall Height : 44.75 in

Description

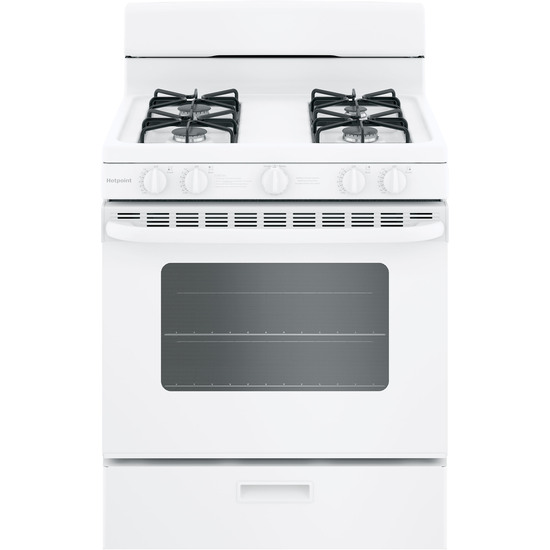

Hotpoint� 30'' Free-Standing Gas Range with Cordless Battery Ignition

Features

• Cordless battery ignition : Battery powered ignition safely and conveniently lights the burners without the need for electrical outlet
• 4.8 cu. ft. oven capacity : Enough room to cook an entire meal at once
• Sealed cooktop burners : Contains spills and make cleaning quick and easy
• Standard clean oven : Smooth surface and rounded corners make clean-up quick and easy
• Porcelain upswept cooktop : Raised edges contain spills, while the surface is easy to wipe clean
• Heavy steel grates : High-grade steel grates offer dependable, long-lasting performance
• Two oven racks : Feature a durable construction to help accommodate any size or type of cookware
• One-piece durable handle : Strong and long-lasting
• Large window : Easily look inside to monitor food as it's cooking
• Broiler drawer : Achieve perfectly browned results
• Visor handle : Features a classic design and easy cleanability
