Specifications

• APPEARANCE
  • Handle Color : Black
  • Control Knobs : Color-Matched
  • Color Appearance : Black
• CAPACITY
  • Total Capacity (cubic feet) : 5 cu ft
• FEATURES
  • Configuration : Range with Storage Drawer
  • Element - Right Front : 8" 2400W Temp Limiting Coil
  • Removable One-Piece Drip Bowls : Black
  • Storage Drawer Features : Removable Full-Width
  • OU Certified : No
  • Oven Features : 4-Pass Bake Element, 4-Pass Broil Element
  • Lift-Up Cooktop With Support Rods : Yes
  • Fuel Type : Electric
  • Cooktop Burner Type : Coil
  • Oven Rack Features : 2 Oven Racks
  • Element - Left Front : 6" 1250W Temp Limiting Coil
  • Cooking Technology : Traditional
  • Oven Control Features : Oven "ON" Light
  • Heating Element "ON" Indicator Light : Yes
  • Cooktop Type : Coil
  • Element - Left Rear : 6" 1250W Temp Limiting Coil
  • Sabbath Mode : Yes
  • Element - Right Rear : 6" 1250W Temp Limiting Coil
  • Cooktop Surface : One-Piece Upswept, Porcelain-Enamel
  • Control Location : Backsplash
  • Drawer Type : Lower Storage Drawer
  • Infinite Heat Controls : Yes
  • Oven Cleaning Type : Standard Clean
  • Oven Rack Positions (Single or Upper/Lower) : 6
• POWER / RATINGS
  • Bake Wattage : 2585W
  • KW Rating at 208V : 8.0
  • Amp Rating at 208V : 40
  • Broiler Wattage : 3410W
  • KW Rating at 240V : 10.1
  • Amp Rating at 240V : 40
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Oven Interior Dimensions (W x H x D) (in.) : 23-3/4 x 19 x 18-1/2
  • Height to Cooking Surface (in.) : 36 - 36 1/2
  • Approximate Shipping Weight : 155 lb
  • Overall Width : 30 in
  • Depth with Door Open : 46.75 in
  • Cabinet Width : 30 in
  • Net Weight : 135 lb
  • Overall Height : 46.75 in
  • Overall Depth : 28.75 in

Description

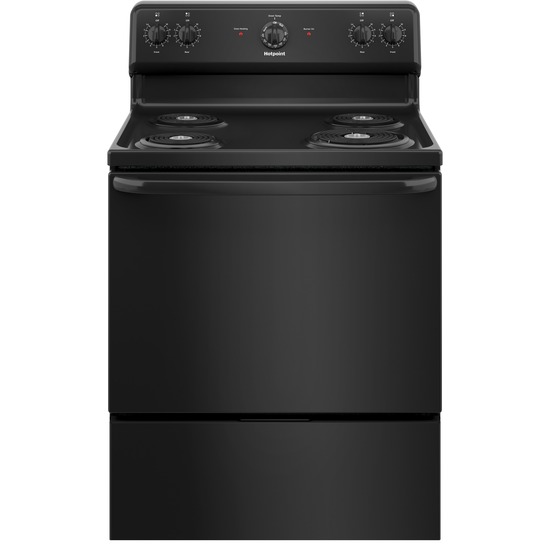

Hotpoint� ENERGY STAR� 30'' Free-Standing Electric Range

Features

• Standard clean oven : Smooth surface makes cleaning by hand easier
• Sensi-temp technology : Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
• Porcelain upswept cooktop : Raised edges contain spills, while the surface is easy to wipe clean
• Chrome drop bowls : Contain spills and remove for easy cleaning
• Two oven racks : Feature a durable construction to help accommodate any size or type of cookware
• Removable full-width storage drawer : Store cookware or kitchen accessories
• 5.0 cu. ft. oven capacity : Cook more dishes at once
• Broiler pan with grid : Convenient broiler pan can be used when broiling for crisping and browning
• Cooktop "On" Indicator Light : Know when an element is on
• Lift-up cooktop : Quickly clean up spills and remove crumbs from the subtop
