Specifications

• ACCESSORIES
  • LP Conversion Kit : Included
• APPEARANCE
  • Oven Door Features : Oven Window
  • Door Swing : Pull-Down
  • Cooktop Burner Grate Color : Matte Black
  • Color Appearance : Stainless Steel
  • Textured Steel Side Panels : Black
  • Control Knobs : Stainless
  • Handle Color : Stainless Steel
• CAPACITY
  • Total Capacity (cubic feet) : 5.6 cu ft
• FEATURES
  • Ignition System : Electronic
  • Oven Control Features : In-Oven Broiling, Probe Mode
  • Oven Rack Features : 2 Flat Racks
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Cleaning Type : Steam Clean
  • Storage Drawer Features : Removable Full-Width
  • Burner - Right Rear : 9,500 BTU
  • Product Type : Free-Standing Single Oven
  • Cooktop Type : Continuous Grates
  • Oven Interior : 1 Incandescent Light, Auto Oven Interior Light, Black
  • WiFi Connect : Built-In
  • Number of Convection Oven Fans : 1
  • Control Type : Backlit, Heavy Duty Knob
  • Sabbath Mode : Yes
  • Leveling System : 4 Leveling Legs
  • Configuration : Range with Storage Drawer
  • OU Certified : No
  • Oven Cooking Modes : Bake, Broil, Convection Bake, No Preheat Air Fry, Warming
  • Cooktop Burner Type : Sealed
  • Valves (Degree of Turn) : 270
  • Cooktop Surface : Deep Recessed
  • Oven Rack Positions (Single or Upper/Lower) : 6
  • Cooktop Burner Grate Features : Continuous Grates, Edge-to-Edge Grates, Matte Black
  • Cooktop Burner Grate Material : Heavy Duty Cast Iron
  • Fuel Type : Natural Gas (factory set)
  • Control Location : Front
  • Dishwasher Safe Knobs : Yes
  • Burner - Left Front : 15,000 BTU
  • Drawer Type : Storage
  • Cooking Technology : Fan Convection
  • Burner - Right Front : 15,000 BTU
• FILTER
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Control Type : Rotary knobs
  • App Filter - Fuel Type : Gas
  • App Filter - Product Type : Ranges Free-Standing Single Oven
  • App Filter - WiFi Connect : Built-In
  • App Filter - Convection : Yes
  • App Filter - Drawer Type : Storage
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Cleaning Type : Steam and Manual
  • App Filter - Voltage : 120V
  • App Filter - Cooktop Type : Continuous Grates
  • App Filter - Cooking Technology : Convection
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (2) 15.0; (1) 9.5; (1) 5.0
  • Top Burner BTU Rating - LP (000's BTU's) : (2) 15.0; (1) 9.5; (1) 5.0
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 13.5 Broiler
  • Electrical Requirements : 120V; 60Hz; 5A
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 16.0 Bake / 16.5 Broiler
• WARRANTY
  • Parts Warranty : 1 year
  • Labor Warranty : 1 Year
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 194 lb
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Depth Without Handle : 27 in
  • Cabinet Width : 30 in
  • Overall Height : 36.25 in
  • Overall Depth : 29.25 in
  • Depth with Door Open : 47.75 in
  • Approximate Shipping Weight : 214 lb
  • Overall Width : 29.875 in
  • Oven Interior Dimensions (W x H x D) (in.) : 19 x 15-3/8 x 17-1/8

Description

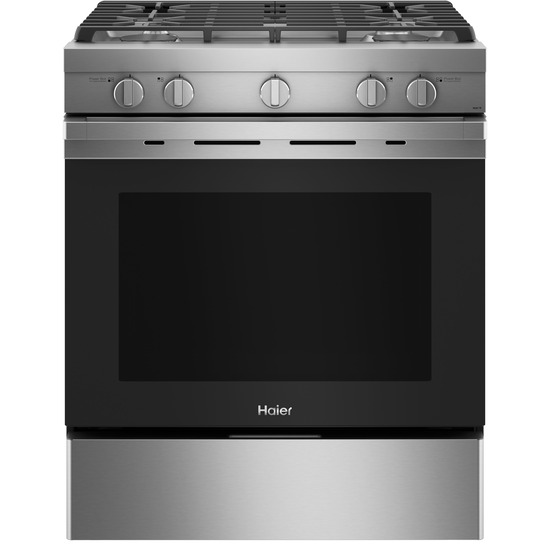

30'' Smart Slide-In Gas Range with Convection

Features

• Built-In WiFi, Powered by SmartHQ™ App : Use your app to connect, control and manage your oven from anywhere (Select features require WiFi Connection)
• Downloadable features : Get the features you want and make your oven better over time with downloadable upgrades like Air Fry (WiFi Enabled)
• No Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)
• Quick clean : Good with cooking but not with cleaning? No worries. This Haier range with Quick Clean steam-cleaning technology makes removing baked-on cooking spills fast and easy.
• Oven cooking modes : Cooking made easy — there’s an app for that! This foodie-friendly app helps you select the right cooking mode for your favorite treats, like baked goods, frozen pizza and frozen snacks
• Scan-to-Cook : Take the guesswork out of cooking. Use the SmartHQ™ app to scan your food’s barcode and the smart oven will prepare it exactly how the manufacturer intended. Hundreds of foods work with this innovative technology, with more added all the time
• Probe mode : A pinch of technology makes everything taste better. Probe Mode ensures that your food is cooked at precisely the right temperature for optimum cooking results
• Backlit color-changing oven knob : You’re always in the know with a color-changing oven knob. Stylish and smart, the LED knob lights illuminate to show which cooking mode has been turned on.
• Heavy-duty continuous cast-iron grates : Go with your culinary flow. Continuous grates allow for easy movement of cookware, while providing even heat distribution with better heat retention.
• Simmer burner : Find the right balance in life and in cooking. Low heat delivers gentle, even cooking results for your most delicate foods
• Fan convection : Smart design elevates your baking. Oven fan continuously circulates heated air for more even baking and roasting results
• Heavy-duty, cast-iron grates : Go with your own flow. Edge-to-edge cooktop with heavy-duty, continuous grates allows for easy movement of cookware.
• Broil element : Perfectly designed for perfect results. Broil element delivers concentrated heat for broiling a variety of foods.
• Removable, full-width storage drawer : On your balcony or in your kitchen, additional space is always welcome. Full-width storage drawer is perfect for keeping cookware or kitchen accessories handy.
• Dishwasher-safe knobs : Creative cooking can get messy. Dishwasher-safe knobs let you have fun in the kitchen, without the worry of a complicated cleanup
