Specifications

• ACCESSORIES
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Optional Backguard : Included
  • LP Conversion Kit : Included
• APPEARANCE
  • Cooktop Burner Grate Color : Matte Black
  • Handle Color : Stainless Steel
  • Color Appearance : Stainless Steel
  • Control Knobs : Stainless
  • Door Swing : Pull-Down
  • Textured Steel Side Panels : Yes
  • Oven Door Features : Oven Window
• CAPACITY
  • Total Capacity (cubic feet) : 2.9 cu ft
• FEATURES
  • Ignition System : Electronic
  • Storage Drawer Features : Removable Full-Width
  • Burner - Left Rear : 9,500 BTU
  • Number of Convection Oven Fans : 1
  • Cooktop Burner Grate Material : Heavy Duty Cast Iron
  • Fuel Type : Natural Gas (factory set)
  • Dishwasher Safe Knobs : Yes
  • Cooktop Burner Grate Features : Continuous Grates
  • Burner - Left Front : 9,500 BTU
  • Drawer Type : Storage
  • Sabbath Mode : Yes
  • Cooking Technology : Fan Convection
  • Control Location : Front
  • OU Certified : No
  • Oven Cooking Modes : Bake, Broil, Convection Bake
  • Cooktop Burner Type : Sealed
  • Valves (Degree of Turn) : 270
  • Burner - Right Front : 15,000 BTU
  • Cooktop Surface : Deep Drawn Stainless Steel
  • Burner - Right Rear : 5,000 BTU
  • Cooktop Type : Standard Grates
  • Leveling System : 4 Leveling Legs
  • Control Type : Heavy Duty Knob
  • Oven Interior : 1 Incandescent Light, Blue Gray
  • Oven Control Features : In-Oven Broiling
  • Oven Rack Features : 2 Flat Nickel Racks
  • Oven Cleaning Type : Steam Clean
  • Product Type : Free-Standing Single Oven
  • Oven Features : Clock/Timer
  • Configuration : Range with In Oven Broil
  • Oven Rack Positions (Single or Upper/Lower) : 4
• FILTER
  • App Filter - Product Type : Ranges Free-Standing Single Oven
  • App Filter - Fuel Type : Gas
  • App Filter - Cleaning Type : Manual
  • App Filter - Voltage : 120V
  • App Filter - Cooktop Type : Standard Grates
  • App Filter - Convection : No
  • App Filter - Drawer Type : Storage
  • App Filter - Cabinet Width : Cooking 24 in.
  • App Filter - Control Type : Rotary knobs
  • App Filter - Cooking Technology : Convection
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 15.0; (2) 9.5; (1) 5.0
  • Amp Rating at 240V : 15
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 13.0
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 13.0
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 15.0; (2) 9.5; (1) 5.0
  • Electrical Requirements : 120V, 60Hz
• WARRANTY
  • Parts Warranty : 1 year
  • Labor Warranty : 1 Year
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 108 lb
  • Overall Width : 24 in
  • Overall Depth : 28.125 in
  • Depth with Door Open : 45.625 in
  • Oven Interior Dimensions (W x H x D) (in.) : 19 x 15-3/8 x 17-1/8
  • Approximate Shipping Weight : 121 lb
  • Depth Without Handle : 25.75 in
  • Overall Height : 41 in
  • Cabinet Width : 24 in
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4

Description

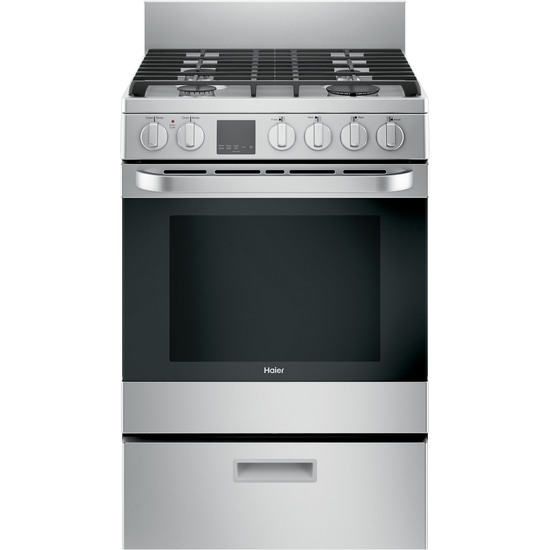

24" 2.9 Cu. Ft. Gas Free-Standing Range with Convection and Modular Backguard

Features

• Edge-to-edge cooktop with heavy-duty continuous cast-iron grates : Allows easy movement of cookware while providing even heat distribution with better heat retention
• Easy clean : Cooking cleanup is easy with sealed burners that contain spills and a Quick Clean, steam cleaning option that makes removing baked-on oven messes a snap
• Modular backguard : Match the look with your style. Versatile design gives you the option of a traditional look or a slide-in appearance.
• Fan convection : Includes a rear fan to distribute hot air throughout the oven for faster, more even baking
• Quick clean : This convenient, steam-cleaning option makes removing baked-on oven spills ultra-quick and super easy
• Closed-oven broiling : Delivers concentrated heat for broiling a variety of foods
• Sealed burners : Keeps spills and crumbs contained so cleaning is always quick and easy
• Perfect Match over-the-range microwave : This 24" range matches the HMV1472BHS 24" over-the-range microwave in width and appearance, creating a perfect pair
• Storage drawer : Stores cookware or kitchen accessories
• Incandescent interior lighting : See frozen pizzas, brownies and more with total clarity thanks to bright, focused interior lighting
