Specifications

• APPEARANCE
  • Handle : Pocket Handle
  • Color Appearance : Stainless Steel
  • Handle Design : Recessed
  • Handle Color : Stainless Steel
  • Door Style : Stainless Full-Length Flat Door
• ECONOMICAL / QUIET
  • Quiet Package : 47 dBA
  • Quiet Features : Sealed Toe Kick, Tub Collar Trim
  • Door Insulation : Insulation, Mastic
  • Outer Wrap : U-Blanket
  • Motor Type : Single Speed
• FEATURES
  • Sensor : Clean Sensor
  • Lower Rack : Nylon
  • Leveling System : Leveling Legs
  • Product Type : Built-In
  • Water Filtration System : 3-Stage Manual Clean Filtration
  • Rack Features : 1 Piece Mid Silverware Basket w/ 1 Cell Cover, 1 Plastic Utility Shelf - Upper, Ball-Tipped Tines, Stem Safe
  • Upper Rack : Adjustable, Nylon
  • Dishwasher Options : Child Lock, Delay Start 1-12 Hr., Sani (Certified to NSF Standard 184), Start/Reset, TempBoost
  • Latch : Center Pull
  • Wash Arms : 2 with Upper Nozzle
  • Style : Built-In Front Control
  • Wash System : 3-Level, Standard
  • Dispenser : Rinse Aid with Indicator and Adjustment
  • Exterior Style : 18" Wide
  • Connected Capabilities : Amazon Alexa, IFTTT, Sonos, The Google Assistant
  • Number of Place Settings : 8
  • Tub and Door Liner : Stainless Steel
  • Control Type : 4 Pushbuttons, Fully Integrated Electronic, Top Controls
  • Racking System : Gray
  • Number of Options : 5
  • Dishwasher Drying Features : Condensate Dry
  • Dishwasher Control Features : 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators, Audible End-of-Cycle Signal, Cycle Countdown, Last Cycle Memory, Start/Reset Pad
  • Wash System Features : Automatic HotStart, Automatic Temperature Control, Dual Pump, Flood Control System, Piranha™ Hard Food Disposer
  • WiFi Connect : Optional (Requires part no. PBX23W00Y0)
  • Number of Cycles : 3
  • Dishwasher Cycles : AutoSense, Heavy Wash, Light Wash
• POWER / RATINGS
  • Energy Consumption (kWh/year) : 240
  • Calrod Heater Watts : 1100
  • Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
  • Electrical Requirements : 120V ; 60 Hz ; 8.9 A
• WARRANTY
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Height : 32.375 in
  • Height w/ Legs Retracted - Minimum Height : 32.375 in
  • Cutout Width (in) : 18 in
  • Overall Depth : 22.5 in
  • Cutout Height (in) : 32 1/2 in
  • Cabinet Width : 18 in
  • Approximate Shipping Weight : 85 lb
  • Depth with Door Open : 23.125 in
  • Net Weight : 72 lb
  • Overall Width : 18 in
  • Height w/Legs Extended - Maximum Height : 34.625 in
  • Cutout Depth (in) : 24 in

Description

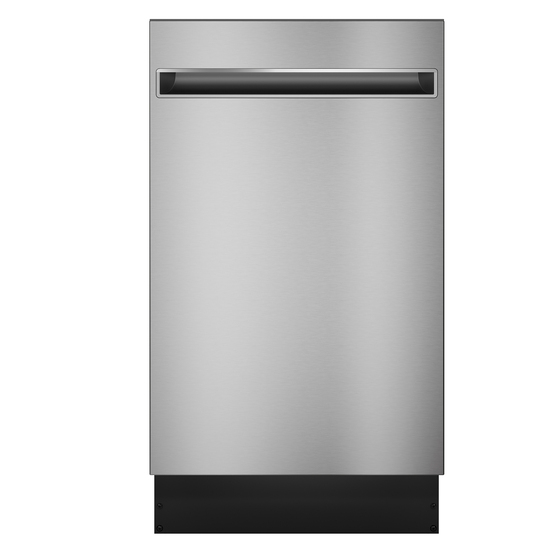

• 18-inch fully integrated built-in smart dishwasher with a capacity for 8 place settings
• 3 wash cycles for flexible cleaning options
• Quiet 47 dBA silence rating for minimal noise during operation
• Piranhaâ„¢ hard food disposer for effective removal of tough food particles
• AutoSense cycle adjusts settings based on load size and soil levels
• Sanitize option for a thorough and hygienic clean
• ADA compliant for accessible and inclusive design
• ENERGY STAR® certified for energy-efficient performance

Features

• ADA Compliant with Low-Profile Installation : Great for 34” counter top heights and raised subfloors
• 3 Level Wash : Powerful wash arms enable exceptionally clean dishes
• Autosense Cycle : Ideal cycle time adjusted based on soil levels and water temperature
• PIRANHA Hard Food Disposer with Removable Filter : A stainless steel blade pulverizes food particlesto ensure consistently clean items
• Sanitize option (NSF Certified) : High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
• WiFi Capable : Through the SmartHQ™ app, monitor performance, check status, and automatically reorder detergent. ConnectPlus accessory part number PBX10W00Y0
• Quiet Package : dBA 47, dramatically reduces the sound of washing the dishes
