Specifications

• ACCESSORIES
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Optional Backguard : Included
• APPEARANCE
  • Textured Steel Side Panels : Yes
  • Oven Door Features : Oven Window
  • Handle Color : Stainless Steel
  • Control Knobs : Stainless
  • Door Swing : Pull Down
  • Color Appearance : Stainless Steel
• CAPACITY
  • Total Capacity (cubic feet) : 2.9 cu ft
• FEATURES
  • Storage Drawer Features : Removable Full-Width
  • Oven Interior : 1 Incandescent Light, Blue Gray
  • Oven Control Features : Oven "ON" Light
  • Element - Left Front : 6" 1200W
  • Oven Cleaning Type : Steam Clean
  • Element - Right Front : 8" 2200W
  • Cooktop Type : Radiant Smoothtop
  • Fuel Type : Electric
  • Interior Oven Light : 1
  • Control Location : Front
  • Number of Convection Oven Fans : 1
  • Oven Rack Features : 2 Flat Nickel Racks
  • Control Type : Heavy Duty Knob
  • Drawer Type : Storage
  • Leveling System : 4 Leveling Legs
  • Cooking Technology : Fan Convection
  • Configuration : Range with Storage Drawer
  • OU Certified : No
  • Cooktop Burner Type : Smoothtop
  • Element - Right Rear : 6" 1200W
  • Cooktop Surface : Black Glass Ceramic
  • Oven Rack Positions (Single or Upper/Lower) : 4
  • Product Type : Free-Standing Single Oven
  • Oven Features : 4-Pass Broil Element, Clock/Timer, Hidden Bake
  • Hot Surface Indicator Lights : Yes, plus Oven Indicator Light
  • Dishwasher Safe Knobs : Yes
  • Sabbath Mode : Yes
  • Element - Left Rear : 8" 2000W
  • Oven Cooking Modes : Bake, Broil, Convection Bake
• FILTER
  • App Filter - Cabinet Width : Cooking 24 in.
  • App Filter - Control Type : Rotary knobs
  • App Filter - Product Type : Ranges Free-Standing Single Oven
  • App Filter - Fuel Type : Electric
  • App Filter - Cooking Technology : Convection
  • App Filter - Drawer Type : Storage
  • App Filter - Cooktop Type : Radiant Smoothtop
  • App Filter - Cleaning Type : Steam and Manual
  • App Filter - Convection : Yes
  • App Filter - Voltage : 240V
• POWER / RATINGS
  • Electrical Requirements : 208/240V;60Hz
  • Amp Rating at 208V : 35.6
  • Broiler Wattage : 3000W
  • Amp Rating at 240V : 40
  • KW Rating at 240V : 10.7
  • Bake Wattage : 2700W
  • KW Rating at 208V : 8.2
• WARRANTY
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : 1 year
  • Labor Warranty : 1 Year
• WEIGHTS & DIMENSIONS
  • Depth Without Handle : 25.75 in
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Net Weight : 123 lb
  • Cabinet Width : 24 in
  • Approximate Shipping Weight : 136 lb
  • Overall Depth : 28.125 in
  • Depth with Door Open : 45.625 in
  • Oven Interior Dimensions (W x H x D) (in.) : 19 x 15-3/8 x 17-1/8
  • Overall Width : 24 in
  • Overall Height : 40.75 in

Description

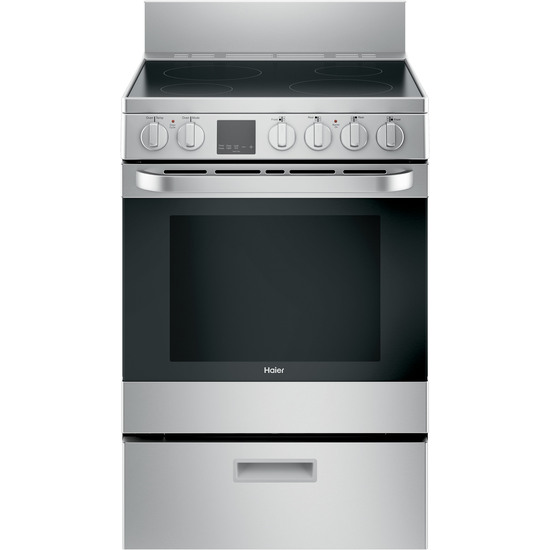

24'' 2.9 Cu. Ft. Electric Range

Features

• Ceramic glass surface : Breeze through the kitchen cleanup. Easy-to-clean, ceramic surface makes mealtimes simply effortless
• Easy clean : Cooking cleanup is easy with sealed burners that contain spills, a Quick Clean, steam cleaning option that makes removing baked-on oven messes a snap, and a hidden bake element that sits beneath a smooth surface for hassle-free cleaning
• Convection : With this tech-savvy oven, you've got baking down. Rear fan and additional heating element distribute hot air throughout the oven for a faster, more even bake.
• Modular backguard : Match the look with your style. Versatile design gives you the option of a traditional look or a slide-in appearance.
• Quick clean : This convenient, steam-cleaning option makes removing baked-on oven spills ultra-quick and super easy
• Hidden bake element : Busy lifestyles don't stop for cooking spills. Hidden bake element sits beneath a smooth surface, making cleaning fast and easy
• Storage drawer : Stores cookware or kitchen accessories
• Perfect Match over-the-range microwave : This 24" range matches the HMV1472BHS 24" over-the-range microwave in width and appearance, creating a perfect pair
• Incandescent interior lighting : See frozen pizzas, brownies and more with total clarity thanks to bright, focused interior lighting
• Closed-oven broiling : Delivers concentrated heat for broiling a variety of foods
