Specifications

• ACCESSORIES
  • Optional Side Filler Panel Kit : JX36BDS
  • Optional Kits : 15" Bump Out Kit - JX15BUMPBB
  • Recirculating Charcoal Filter Kit : Included, WB06X10807
• APPEARANCE
  • Door Swing : Hinges on Left
  • Handle Color : Black Stainless
  • Control Panel Color : Gray
  • Case Color : Gray
  • Oven Door Features : Oven Window
  • Color Appearance : Fingerprint Resistant Black Slate
  • Installation : Easy Mount
  • Door Color : Black Stainless
  • Color Accents : Gray
• CAPACITY
  • Vent CFM : 400
  • Total Capacity (cubic feet) : 1.9 cu ft
• ECONOMICAL / QUIET
  • Non-Vented : Convertible to Recirculating (Filter Included)
  • Venting Type : Externally Vented (Factory Set)
• FEATURES
  • Display Type : LED
  • Control Features : Add 30 Seconds, Cancel/Off, Cook Time, Lock Controls, Melt, Power Level, Replace Filter Notification, Settings, Start/Pause, Steam Clean
  • Display Screen Size (Diagonal Length) : 3.13
  • Electronic Digital Display with Clock : Digital (1 line)
  • Oven Interior : Easy Clean Interior
  • Product Type : Over-the-range Microwave
  • Style : Over-The-Range
  • Microwave Watts (IEC-705) : 1000 W
  • Control Type : Electronic Touch
  • Cooktop Lighting : Bright/Night/Off, Halogen
  • Exhaust Fan : 4-Speed, 400-CFM
  • Microwave Sensor Cooking Controls : Beverage, Defrost: Weight/Time, Melt, Popcorn, Potato, Reheat
  • Turntable On / Off : Yes
  • Power Levels : 10
  • Cooking Technology : Microwave
  • Express Cook : 1-5 Minutes
  • Turntable : Glass
  • Turntable Size : 14.2 in
  • Interior Oven Light : Incandescent
• FILTER
  • App Filter - Convection : No
  • App Filter - Venting Type : External
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Wattage : 1100 and Above
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Product Type : Microwave Over-the-Range
  • App Filter - Voltage : 120V
  • App Filter - Cooking Technology : Microwave Only
  • App Filter - Capacity : Microwave Large (1.9 cu. ft. and above)
• POWER / RATINGS
  • Electrical Input - 120V Amperage : 15
  • Input Volts/Hertz : 120/60
  • Electrical Input - 120V Watts : 1580
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 66 lb
  • Overall Width : 29.875 in
  • Overall Height : 16.3125 in
  • Net Weight : 57 lb
  • Overall Depth : 15.5625 in
  • Cavity (W x H x D) : 21-15/16 x 11-5/8 x 14-9/16

Description

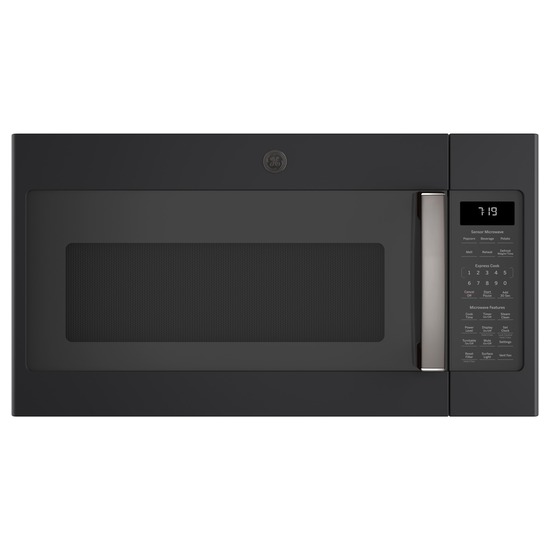

The 1.9 Cu. Ft. Over-the-Range Sensor Microwave Oven combines convenience and high performance in a space-saving design. Key features include:

• Spacious 1.9 Cu. Ft. Capacity: Offers ample space to accommodate large meals and containers.
• Sensor Cooking Technology: Automatically adjusts cooking time and power based on moisture levels in your food for perfect results every time.
• Powerful Ventilation System: Efficiently removes smoke, steam, and odors, ensuring a clean and fresh kitchen.
• Over-the-Range Design: Saves valuable countertop space by being installed above the range.
• Sleek and Modern Design: Fits seamlessly into any kitchen décor while providing advanced cooking capabilities.
• User-Friendly Controls: Easy-to-use interface for convenient operation and precise cooking adjustments.

Features

• 1.9 cu. ft. capacity : 1000 Watts (IEC-705 test procedure)
• Melt feature : Worry-free melting of butter, caramel, chocolate and marshmallows
• Weight and time defrost : Simply enter the weight of the food, and the oven automatically sets the optimal defrosting time and power level or set your desired time for defrosting
• Upfront charcoal filter with indicator light : Light indicates when odor-removing charcoal filter needs to be replaced
• Four-speed, 400-CFM venting fan system : Quickly removes smoke, steam and odors from the cooktop to keep kitchen air fresh and clean
• Turntable On/Off : Controls turntable operation
• Sensor cooking controls : Automatically adjusts time and power for delicious cooking results
