Specifications

• ACCESSORIES
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Optional Accessories : WB48X21543 Roller Rack
  • Center Grate : Optional - JXGRATE1
  • Griddle Accessory : WB31X28254 (Included) Cast Iron
  • Trim Kit : JXFILLR1DD, Optional
  • LP Conversion Kit : Included
• APPEARANCE
  • Cooktop Burner Grate Color : Matte Black
  • Handle : Designer Style
  • Installation : Flush Appearance, Free-standing cut-out
  • Handle Color : Stainless Steel
  • Oven Door Features : Big View Oven Window
  • Control Knobs : Stainless Steel
  • Color Appearance : Stainless Steel
• CAPACITY
  • Total Capacity (cubic feet) : 6.7 cu ft
  • Capacity (Cu. Ft.) : 2.4 Upper / 4.3 Lower
• FEATURES
  • Ignition System : Electronic
  • Oven Interior : 1 Auto Incandescent Light, Gray
  • Oven Control Features : Audible Preheat Signal, Certified Sabbath Mode, Control Lock Capability, Electronic Clock & Kitchen Timer, Steam Clean
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Cleaning Type : Steam Clean
  • Griddle : Cast Iron Griddle
  • Oven Rack Features : 3 Oven Racks
  • Power Boil Burner : Yes
  • Burner - Right Rear : 9,500 BTU
  • Fuel Type : Natural Gas (factory set)
  • Control Location : Front
  • Product Type : Slide-In Double Oven
  • Cooktop Type : Continuous Grates
  • Cooktop Burner Grate Material : Heavy Cast Iron
  • Burner - Center : 10,000 BTU Oval
  • Cooktop Burner Grate Features : Continuous Grates, Dishwasher Safe
  • Sabbath Mode : Yes
  • Cooking Technology : Traditional Upper; Convection Lower
  • Configuration : Double Oven Range
  • Cooktop Burner Type : Sealed
  • Grill : JXCGRILL1, Optional
  • Burner - Right Front : 15,000 BTU
  • Cooktop Surface : Deep Recessed, Edge-to-Edge, Stainless Steel
  • Control Type : Electronic Touch
  • OU Certified : No
  • Oven Cooking Modes : No Preheat Air Fry
  • Burner - Left Front : 18,000 BTU Power Boil
• FILTER
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Fuel Type : Gas
  • App Filter - Convection : No
  • App Filter - Product Type : Ranges Slide-In Double Oven
  • App Filter - Cooking Technology : Traditional
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Cooktop Type : Continuous Grates
  • App Filter - Cleaning Type : Steam and Manual
  • App Filter - Voltage : 120V
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower)
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower)
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 271 lb
  • Depth Without Handle : 26.75 in
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Approximate Shipping Weight : 291 lb
  • Overall Width : 30 in
  • Cabinet Width : 30 in
  • Overall Height : 36.25 in
  • Overall Depth : 29.25 in
  • Depth with Door Open : 43.875 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
  • Height to Top of Rear Vent Trim : 37.375 in

Description

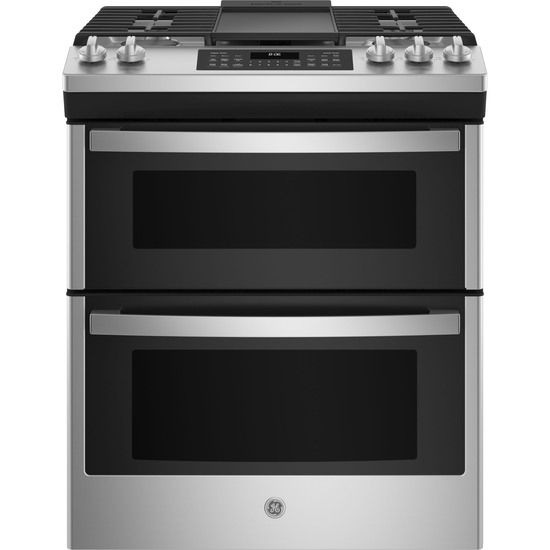

30'' Slide-In Front-Control Convection Gas Range offering a sleek, built-in appearance for a modern kitchen design.

Convection cooking ensures even baking and roasting, delivering consistent and perfect results every time.

No Preheat Air Fry feature allows for quick, crispy meals without the need to preheat, saving time and energy.

Front-control design provides easy access to settings, enhancing usability and offering a more streamlined kitchen look.

Spacious oven for versatile cooking, allowing you to bake, roast, or air fry with ease.

Advanced cooking technology combining style, convenience, and performance, making it an ideal addition to any home kitchen.

Features

• Fit Guarantee : This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details
• No-Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray
• Edge-to-edge cooktop : Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
• Powerful burner options : Cook meals of all sizes thanks to one 18,000-BTU burner for larger cookware and one 15,000-BTU burner for medium-sized pots and pans
• Integrated griddle : This integrated cast iron griddle leads the industry in size and quality, so you can cook a lot of food at once
• Center oval burner : This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
• Steam clean : A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
• In-oven broil : An in-oven broiler makes broiler cooking hassle-free
• Large capacity double oven : Cook an entire meal at once with a 6.7 cubic foot total capacity double oven which provides enough room for multiple dishes
• True Convection : Enjoy consistent baking thanks to an advanced convection system that pairs a third heating element with a rear fan for a high level of precision
