Specifications

• ACCESSORIES
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Griddle Accessory : Integrated Griddle (Included)
  • LP Conversion Kit : Included
  • Center Grate : Optional - JXGRATE1
• APPEARANCE
  • Cooktop Burner Grate Color : Matte Black
  • Oven Door Features : Big View Oven Window
  • Handle Design : Designer Style
  • Handle Color : Stainless Steel
  • Control Knobs : Stainless Steel Appearance, Weighted
  • Color Appearance : Stainless Steel
• CAPACITY
  • Total Capacity (cubic feet) : 6.8 cu ft
  • Capacity (Cu. Ft.) : 2.5 Upper / 4.3 Lower
• FEATURES
  • Ignition System : Electronic
  • Oven Cleaning Type : Steam Clean
  • Griddle : Integrated (Included)
  • Cooktop Type : Continuous Grates with Griddle
  • Cooktop Burner Grate Material : Heavy Cast Iron
  • Fuel Type : Natural Gas (factory set)
  • Burner - Center : 10,000 BTU Oval
  • Control Location : Front
  • Cooktop Burner Grate Features : Dishwasher Safe
  • Cooktop Burner Type : Sealed
  • Burner - Right Rear : 12,000 BTU
  • Oven Rack Features : 3 Oven Racks
  • Product Type : Free-Standing Double Oven
  • Interior Oven Light : 1 Auto Incandescent (Both Ovens)
  • Burner - Right Front : 9,500 BTU
  • Oven Rack Positions (Single or Upper/Lower) : 2 / 5
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Control Features : Audible Preheat Signal, Certified Sabbath Mode, Control Lock Capability
  • OU Certified : No
  • Cooktop Surface : Edge-to-Edge, Gray, One-Piece Upswept, Porcelain-Enamel
  • Control Type : Electronic Touch
  • Burner - Left Front : 15,000 BTU
  • Sabbath Mode : Yes
  • Cooking Technology : Traditional Upper; Convection Lower
  • Oven Cooking Modes : Convection Bake, Convection Roast, No Preheat Air Fry
  • Configuration : Double Oven Range
• FILTER
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Fuel Type : Gas
  • App Filter - Cooking Technology : Convection, Traditional
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Cooktop Type : Continuous Grates with Griddle
  • App Filter - Product Type : Ranges Free-Standing Double Oven
  • App Filter - Convection : Yes
  • App Filter - Cleaning Type : Steam and Self-Clean
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower)
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower)
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 205 lb
  • Approximate Shipping Weight : 225 lb
  • Overall Depth : 29.25 in
  • Depth with Door Open : 43.5 in
  • Depth Without Handle : 26.75 in
  • Cabinet Width : 30 in
  • Overall Width : 30 in
  • Overall Height : 47.25 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
  • Height to Cooking Surface (in.) : 36 - 36 1/2

Description

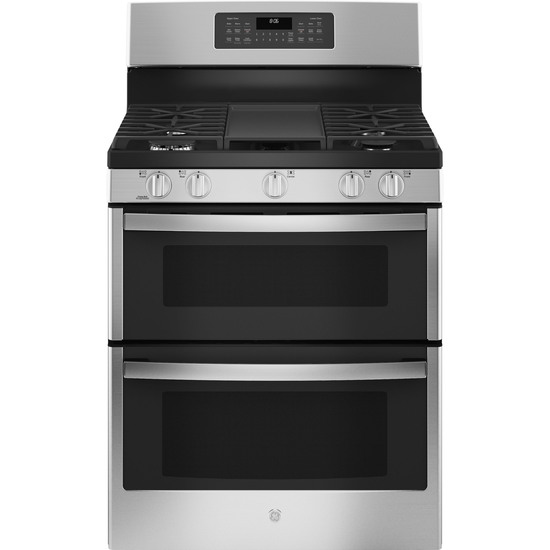

The 30'' Free-Standing Gas Range combines practical features with efficient performance for everyday cooking.

• Versatile cooktop: Equipped with multiple burners, providing flexibility for different cooking methods.
• Spacious oven: Offers ample space for cooking large meals or multiple dishes at once.
• Reliable performance: Delivers consistent results for baking, broiling, and roasting.
• Freestanding design: Easily integrates into your kitchen without the need for installation adjustments.
• Sleek appearance: Complements various kitchen styles with its modern look.
• Durable construction: Built to last and withstand regular use.

Features

• No-Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray
• Edge-to-edge cooktop : Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
• Integrated griddle : This integrated griddle leads the industry in size and quality, so you can cook a lot of food at once
• Power boil burner : This 15,000-BTU power boil element produces intense heat to boil water fast
• Center oval burner : This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
• Steam clean : A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
• Precise simmer burner : This burner setting provides low, even heat so delicate dishes don't burn
• Heavy duty, dishwasher-safe grates : These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven
• Large capacity double oven : Cook an entire meal at once with a 6.8 cubic foot total capacity double oven which provides enough room for multiple dishes
• Sealed cooktop burners : Sealed cooktop burners contain cooking spills so cleanup is quick and easy
• Deep-recessed cooktop : This deep-recessed gas cooktop contains cooking spills and makes it easier to clean up
