Specifications

• ACCESSORIES
  • LP Conversion Kit : Included
  • Center Grate : Optional - JXGRATE1
  • Griddle Accessory : Integrated Griddle (Included)
• APPEARANCE
  • Control Knobs : Stainless Steel Appearance
  • Handle Color : Stainless Steel
  • Cooktop Burner Grate Color : Matte Black
  • Handle : Designer Style
  • Oven Door Features : Big View Oven Window
  • Color Appearance : Stainless Steel/Black
• CAPACITY
  • Total Capacity (cubic feet) : 5 cu ft
• FEATURES
  • Burner - Left Front : 15,000 BTU
  • Ignition System : Electronic
  • Burner - Right Rear : 12,000 BTU
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off, Delay Bake Option, Electronic Clock and Timer, Hi / Low Broil, Oven Control Lock Capability
  • Oven Rack Features : 2 Flat Nickel Racks
  • Cooktop Type : Continuous Grates with Griddle
  • Burner - Center : 10,000 BTU Oval
  • Interior Oven Light : 1 Incandescent
  • Griddle : Integrated (Included)
  • Fuel Type : Natural Gas (factory set)
  • Sabbath Mode : Yes
  • Oven Cleaning Type : Steam Clean
  • Control Location : Front
  • Cooktop Burner Type : Sealed
  • Cooktop Surface : Black, Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel
  • Product Type : Free-Standing Single Oven
  • Cooktop Burner Grate Features : Continuous Grates
  • Control Type : Electronic Touch
  • Drawer Type : Broiler
  • Cooking Technology : Traditional
  • OU Certified : Embedded OU/CRC Enhanced Shabbos Mode
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Cooktop Burner Grate Material : Heavy Cast Iron
  • Burner - Right Front : 9,500 BTU
  • Configuration : Range with Broiler Drawer
  • Oven Rack Positions (Single or Upper/Lower) : 6
• FILTER
  • App Filter - Cooktop Type : Continuous Grates with Griddle
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Product Type : Ranges Free-Standing Single Oven
  • App Filter - Cooking Technology : Traditional
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Voltage : 120V
  • App Filter - Convection : No
  • App Filter - Fuel Type : Gas
  • App Filter - Drawer Type : Broiler
  • App Filter - Cleaning Type : Steam and Manual
• POWER / RATINGS
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 18.0 Bake / 18.0 Broiler
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 16.0 Broiler
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Depth with Door Open : 46.25 in
  • Height to Cooking Surface (in.) : 36 - 36 1/2
  • Approximate Shipping Weight : 172 lb
  • Overall Width : 30 in
  • Net Weight : 150 lb
  • Cabinet Width : 30 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 19 x 19
  • Depth Without Handle : 26.25 in
  • Overall Height : 47.25 in
  • Overall Depth : 28.75 in

Description

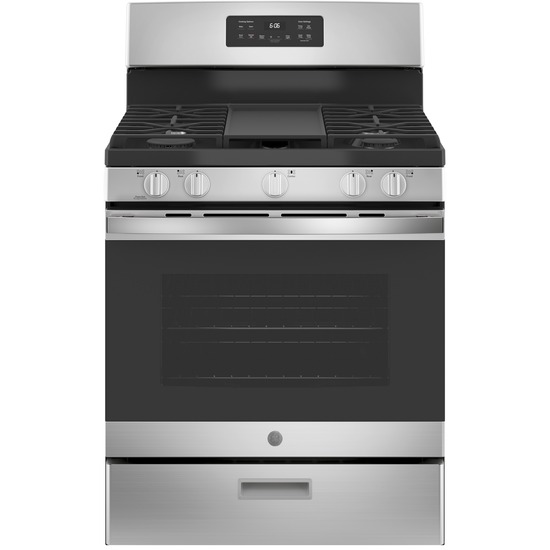

The 30'' Free-Standing Gas Range combines practical features with efficient performance for everyday cooking.

• Versatile cooktop: Equipped with multiple burners, providing flexibility for different cooking methods.
• Spacious oven: Offers ample space for cooking large meals or multiple dishes at once.
• Reliable performance: Delivers consistent results for baking, broiling, and roasting.
• Freestanding design: Easily integrates into your kitchen without the need for installation adjustments.
• Sleek appearance: Complements various kitchen styles with its modern look.
• Durable construction: Built to last and withstand regular use.

Features

• Edge-to-edge cooktop : A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
• Extra-large integrated griddle : Cook up to six grilled cheeses at once on the industry’s largest integrated griddle
• 15,000 BTU Power Boil Burner : Delivers high heat for fast boiling
• Center oval burner : Large oval fifth burner is ideal for griddle cooking
• Steam clean : Save time and effort by steam-cleaning the oven after cooking. No special water, kits or extra steps required.
• Precise Simmer burner : Delicate foods don’t burn with low, even heat
• Heavy duty, dishwasher-safe grates : Easily and safely clean grates in the dishwasher
• 5.0 cu. ft. oven capacity : Cook more dishes at once
• Sealed cooktop burners : Contains spills and make cleaning quick and easy
• Deep-recessed cooktop : Contains spills for quick and easy cleaning
• Flexible broiling : Broil in any size cookware with a flexible broiling element that can be set to hi or low based on your broiling needs
• Electronic clock and timer : Help cooks coordinate meal preparation and cooking
