Specifications

• APPEARANCE
  • Handle : Designer Style
  • Textured Steel Side Panels : Yes
  • Control Knobs : Color-Matched
  • Oven Door Features : Big View Oven Window, Glass Door
  • Handle Color : White
  • Color Appearance : White
• CAPACITY
  • Total Capacity (cubic feet) : 5 cu ft
• FEATURES
  • Cooking System : Traditional
  • Storage Drawer Features : Removable Full-Width
  • Oven Interior : 1 Incandescent Light
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off with Override, Control Lock Capability, Electronic Clock & Kitchen Timer, Hi / Low Broil, Oven "ON" Light
  • Element - Left Front : 6" 1250W Temp Limiting Coil
  • Oven Cleaning Type : Standard Clean
  • Heating Element "ON" Indicator Light : Yes
  • Oven Rack Features : 2 Oven Racks
  • Element - Right Front : 8" 2400W Temp Limiting Coil
  • Control Location : Backsplash
  • Lift-Up Cooktop With Support Rods : Yes
  • Drawer Type : Storage
  • Sabbath Mode : Yes

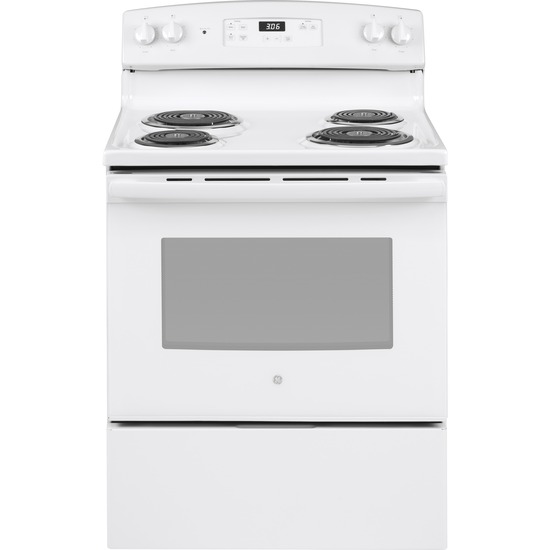

  • Product Type : Free-Standing Single Oven
  • Cooktop Type : Coil
  • Fuel Type : Electric
  • Control Type : Digital Temperature Display, Electronic, Touchpads
  • Element - Left Rear : 8" 2400W Temp Limiting Coil
  • Cooking Technology : Traditional
  • Configuration : Range with Storage Drawer
  • Oven Features : 4-Pass Bake Element, 4-Pass Broil Element
  • Removable One-Piece Drip Bowls : Chrome
  • OU Certified : No
  • Cooktop Burner Type : Coil
  • Element - Right Rear : 6" 1250W Temp Limiting Coil
  • Cooktop Surface : One-Piece Upswept, Porcelain-Enamel
  • Oven Rack Positions (Single or Upper/Lower) : 6
• FILTER
  • App Filter - Fuel Type : Electric
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Product Type : Ranges Free-Standing Single Oven
  • App Filter - Drawer Type : Storage
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Cooking Technology : Traditional
  • App Filter - Convection : No
  • App Filter - Cooktop Type : Coil
  • App Filter - Cleaning Type : Manual
  • App Filter - Voltage : 240V
• POWER / RATINGS
  • Amp Rating at 208V : 40
  • KW Rating at 240V : 10.2
  • Broiler Wattage : 3410W
  • Amp Rating at 240V : 40
  • Bake Wattage : 2585W
  • KW Rating at 208V : 7.6
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Depth Without Handle : 26.25 in
  • Height to Cooking Surface (in.) : 36 - 36 1/2
  • Net Weight : 142 lb
  • Approximate Shipping Weight : 162 lb
  • Overall Depth : 28.75 in
  • Depth with Door Open : 46.25 in
  • Oven Interior Dimensions (W x H x D) (in.) : 23-3/4 x 19 x 18-1/2
  • Cabinet Width : 30 in
  • Overall Width : 30 in
  • Overall Height : 47 in

Description

ENERGY STAR-certified for energy efficiency, helping to reduce energy usage.

Spacious oven and multiple burners ensure consistent and reliable cooking results.

Freestanding design for easy installation, without the need for built-in configurations.

Combines convenience and style, making it a great addition to any kitchen.

Designed to deliver reliable cooking performance while promoting energy savings.

Features

• 5.0 cu. ft. oven capacity : Cook more dishes at once
• Standard clean oven : Smooth surface and rounded corners make clean-up quick and easy
• Sensi-temp technology : Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
• Electronic clock and timer : Help cooks coordinate meal preparation and cooking
• Removable full-width storage drawer : Large trays and other cookware can be conveniently stored for quick access
• Dual-element Bake : Upper and lower elements produce even heat and great results
