Specifications

• APPEARANCE
  • Oven Door Features : Big View Oven Window, Glass Door
  • Handle : Designer Style
  • Control Knobs : Gloss Black
  • Color Appearance : Stainless Steel/Black
  • Textured Steel Side Panels : Yes
  • Handle Color : Stainless Steel
• CAPACITY
  • Total Capacity (cubic feet) : 5 cu ft
• FEATURES
  • Oven Interior : 1 Incandescent Light
  • Cooktop Burner Type : Coil
  • Oven Cleaning Type : Self-Clean
  • Product Type : Free-Standing Single Oven
  • Element - Right Front : 8" 2400W Temp Limiting Coil
  • Oven Features : 4-Pass Bake Element, 4-Pass Broil Element
  • Storage Drawer Features : Removable Full-Width
  • OU Certified : No
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off with Override, Auto Self Clean, Control Lock Capability, Delay Bake Option (Time Bake), Delay Clean Option, Electronic Clock & Kitchen Timer, Hi / Low Broil, Oven "ON" Light, Self-Clean Cool Down Time Display, Self-Cleaning Cycling Light
  • Oven Rack Features : 2 Oven Racks
  • Element - Left Front : 6" 1250W Temp Limiting Coil
  • Fuel Type : Electric
  • Sabbath Mode : Yes
  • Element - Right Rear : 6" 1250W Temp Limiting Coil
  • Cooktop Surface : One-Piece Upswept, Porcelain-Enamel
  • Control Location : Backsplash
  • Heating Element "ON" Indicator Light : Yes
  • Control Type : Digital Temperature Display, Electronic, Touchpads
  • Cooking Technology : Traditional
  • Configuration : Range with Storage Drawer
  • Element - Left Rear : 8" 2400W Temp Limiting Coil
  • Drawer Type : Storage
  • Removable One-Piece Drip Bowls : Black Porcelain Enameled
  • Lift-Up Cooktop With Support Rods : Yes
  • Cooktop Type : Coil
  • Oven Rack Positions (Single or Upper/Lower) : 6
• POWER / RATINGS
  • Bake Wattage : 2585W
  • Amp Rating at 208V : 40
  • Broiler Wattage : 3410W
  • KW Rating at 240V : 11.7
  • KW Rating at 208V : 8.8
  • Amp Rating at 240V : 40
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Height to Cooking Surface (in.) : 36 - 36 1/2
  • Overall Depth : 28.75 in
  • Overall Height : 47 in
  • Net Weight : 150 lb
  • Depth Without Handle : 26.25 in
  • Oven Interior Dimensions (W x H x D) (in.) : 23-3/4 x 19 x 18-1/2
  • Depth with Door Open : 46.25 in
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 170 lb
  • Overall Width : 30 in

Description

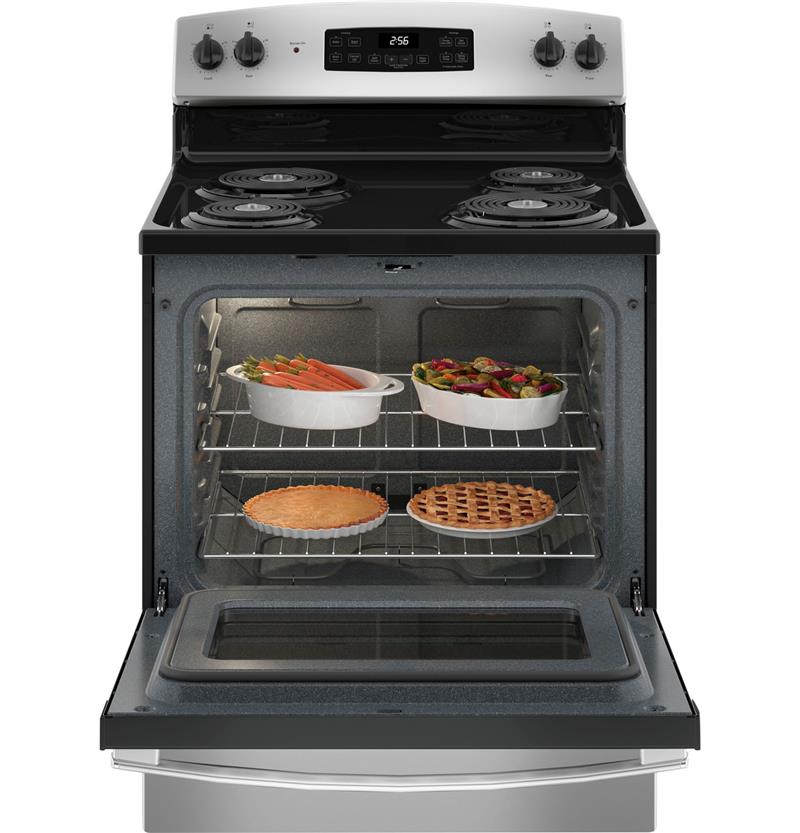

30 Inch Freestanding Electric Range with 4 coil burners for reliable cooking

5.0 cu. ft. oven capacity offers ample space for baking and roasting large meals

Convenient storage drawer for storing kitchen essentials and cookware

Sensi-Temp technology ensures accurate temperature control for precise cooking

Dual-Element Bake feature provides even heat distribution for consistent results

Sabbath Mode for observing religious cooking restrictions

Self-cleaning function for easy oven maintenance and cleaning

Features

• 5.0 cu. ft. oven capacity : Enough room to cook an entire meal at once
• Self-clean oven : Cleans the oven cavity without the need for scrubbing
• Sensi-temp technology : Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
• Dual-element Bake : Upper and lower elements produce even heat and great results
• Removable full-width storage drawer : Large trays and other cookware can be conveniently stored for quick access
