Specifications

• ACCESSORIES
  • Wall Case : RAB46/47/48/26 Required At Additional Cost
• APPEARANCE
  • Color Appearance : White
  • Installation : Wall Mounted
• CAPACITY
  • Cooling BTUH (MAX) : 6100 Btu
  • Dehumidification (pts./hr.) : 1.3
  • Cooling EER (BTUH / Watt) : 11.1
• FEATURES
  • Louver Style : 6-Way
  • Fan Speed Selections : 3 Cooling, 3 Fan Only
  • Product Type : Built-In
  • Refrigerant Type : R32
  • Control Type : Electronic
  • Optional Grill : RAG13/RAG13A/RAG14E
  • WiFi Connect : Built-In
  • Air Discharge : Over / Under
  • Style : Thru-Wall
  • Remote Control : Yes
  • Thermostat Type : Electronic Digital
  • Cord Length : 75"
  • Outdoor Vent / Exhaust : Yes
  • Room Air Conditioner Features : Batteries Included, Energy Saver, Filter Reminder Function, Remote Control, Smart Fan Switch
  • Plug Type : Parallel/Right Angle LCDI
  • Airflow (cfm) Roomside (hi/low) : 250/230/210
  • Rotary Compressor : Yes
  • Unit Type : Cool Only
  • Filter Type : Rigid, Tilt-Out, Washable
  • Chassis Type : Slide-In
  • Temperature Range : 60->85 F
• POWER / RATINGS
  • Cooling - Watts : 590
  • Voltage/Hertz/Phase : 115/60/1
  • CEER : 11.0
  • Cooling - Rated Cooling Amps AHAM : 5.5
• WARRANTY
  • Labor Warranty : Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
  • Parts Warranty : Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 72.3 lb
  • Overall Width : 26 in
  • Approximate Shipping Weight : 72.3 lb
  • Depth to Louvers : 5 in
  • Overall Height : 15.625 in
  • Overall Depth (Excludes Sleeve) : 19.90625 in
  • Overall Width (Excludes Sleeve) : 24.8125 in
  • Overall Height (Excludes Sleeve) : 14.875 in
  • Overall Depth : 21.8125 in

Description

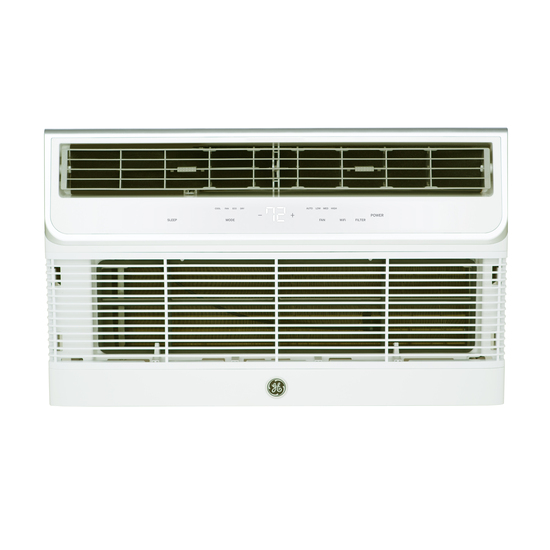

6,300 BTU Thru the Wall Smart Air Conditioner designed for efficient cooling in small to medium-sized rooms

Features a 3-speed fan for customizable airflow with low, medium, and high settings

Electronic cap touch controls for easy and precise adjustments

ECO mode ensures energy-efficient operation, reducing energy consumption

Dry mode removes excess moisture from the air, ideal for humid environments

Auto mode automatically adjusts the cooling settings for optimal comfort

Includes a washable filter for clean air and reduced maintenance costs

ENERGY STAR® certified for energy efficiency and cost savings

Features

• Built-in WiFi powered by SmartHQ™
• True Built In Design : The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps
• Premium Finish : Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
• Electronic Cap Touch Controls : Controls offer a high-end and smooth to-the-touch panel
• Large LCD Auto-Dimming Display : Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
• Slim Room Front : A slim room front provides more usable space in the room. It’s the sleekest design in the industry
• ECO Mode : Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
• Dry Mode : Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
• Auto Mode : Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
• 6-Way Directional Airflow : Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
• Washable Filter : Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
• Remote Control Included : Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
• Quiet Performance : Designed & engineered by GE Appliances for ultra-quiet comfort
• Commercial Grade : Designed for durability with high-grade components and tested for long performance
