Specifications

• ACCESSORIES
  • Optional Side Filler Panel Kit : JX36BSS
  • Recirculating Charcoal Filter Kit : Included, WB06X10807
• APPEARANCE
  • Door Swing : Hinges on Left
  • Oven Door Features : Oven Window
  • Installation : Easy Mount
  • Door Color : Stainless Steel
  • Handle Color : Stainless Steel Appearance
  • Color Appearance : Stainless Steel
• CAPACITY
  • Total Capacity (cubic feet) : 2.2 cu ft
  • Vent CFM : 400
• ECONOMICAL / QUIET
  • Non-Vented : Convertible to Recirculating (Filter Included)
  • Venting Type : Externally Vented (Factory Set)
• FEATURES
  • Display Type : LED
  • Microwave Sensor Cooking Controls : Beverage, Popcorn, Reheat
  • Control Features : Add 30 Seconds, Cancel/Off, Chef Connect, Cook Time, Lock Controls, Mute On/Off, My Cycle, Power Level, Replace Filter Notification, Settings, Start/Pause, Steam Clean, Surface Light, Sync Auto Off; Surface Light Sync; Vent Fan Sync, Timer On/Off, Turntable On/Off, Vent Fan
  • Display Screen Size (Diagonal Length) : 3.13
  • Cooking Modes : Microwave
  • Electronic Digital Display with Clock : Digital (1 line)
  • Power Levels : 10
  • Exhaust Fan : 4-Speed Including Boost, 400-CFM, Slide-out vent
  • Turntable : Glass Recessed
  • Defrost Type : Weight/Time
  • Cooking Technology : Microwave
  • Turntable Size : 14.2 in
  • Product Type : Over-the-range Microwave
  • Turntable On / Off : Yes
  • Sound Volume Control : Yes
  • Program Cooking : Yes (Option Pad)
  • Microwave Watts (IEC-705) : 1000 W
  • Microwave Oven Interior : Easy Clean Interior
  • Cooktop Lighting : High/Low/Off, LED
  • Style : Over-The-Range

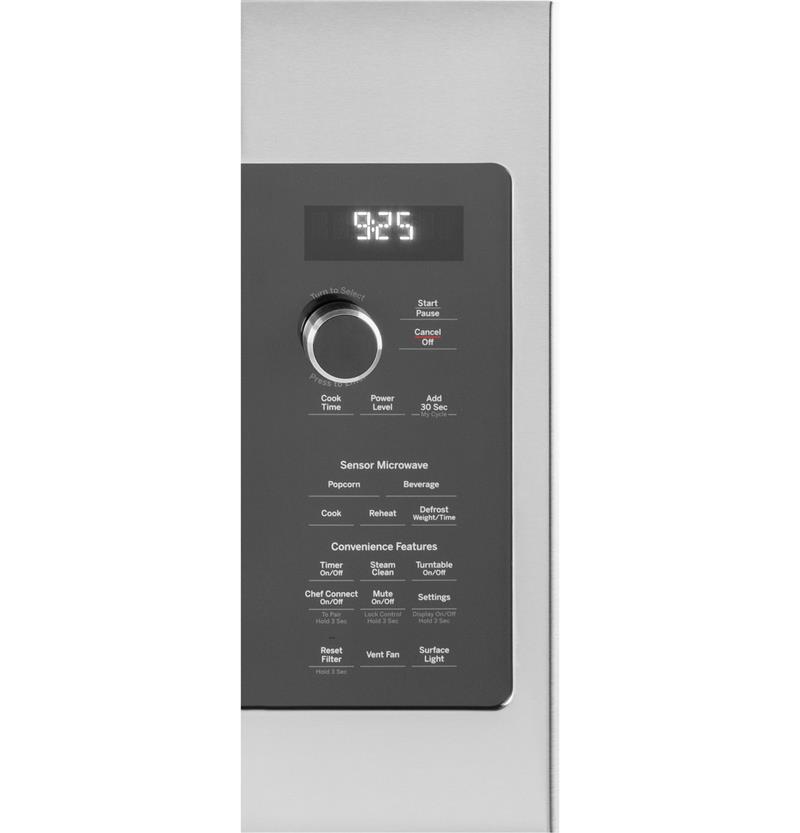

  • Control Type : Dial, Electronic Touch
  • Interior Oven Light : Halogen
• FILTER
  • App Filter - Venting Type : External
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Voltage : 120V
  • App Filter - Convection : No
  • App Filter - Cooking Modes : Microwave Steam
  • App Filter - Cooking Technology : Microwave Only
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Product Type : Microwave Over-the-Range
  • App Filter - Wattage : 1000 to 1099
  • App Filter - Capacity : Microwave Large (1.9 cu. ft. and above)
  • App Filter - Cooktop Type : Continuous Grates with Griddle
• POWER / RATINGS
  • Electrical Input - 120V Amperage : 14.5
  • Electrical Input - 120V Watts : 1700
  • Input Volts/Hertz : 120/60
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance, Limited 5-year magnetron tube
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Approximate Shipping Weight : 63 lb
  • Overall Height : 17.25 in
  • Overall Depth : 15.5625 in
  • Net Weight : 57 lb
  • Overall Width : 29.875 in
  • Cavity (W x H x D) : 21-15/16 x 11-5/8 x 14-9/16
  • Cabinet Width : 30 in

Description

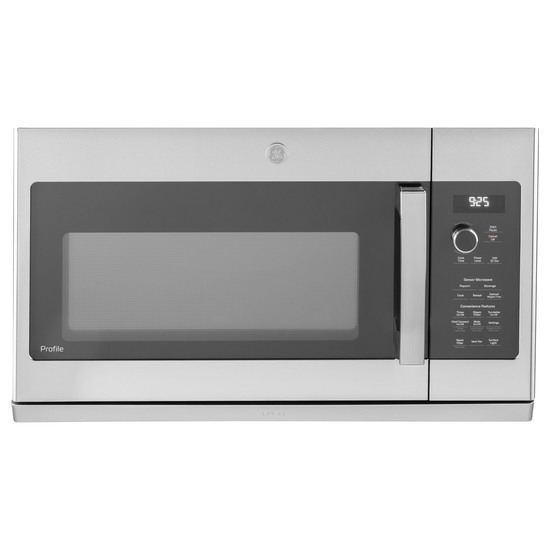

The 2.2 Cu. Ft. Over-the-Range Sensor Microwave Oven offers an array of convenient features for your kitchen:

• Large Capacity: 2.2 Cu. Ft. of space for cooking or reheating larger meals.
• Sensor Cooking Technology: Automatically adjusts cooking time and power levels for optimal results.
• Over-the-Range Design: Saves counter space while providing powerful ventilation to clear smoke, steam, and odors.
• Sleek, Modern Look: Seamlessly integrates into your kitchen with a contemporary design.
• Intuitive Controls: Easy-to-use controls for simple cooking and reheating tasks.
• Spacious Interior: Ideal for large dishes, making it perfect for families or entertaining.

Features

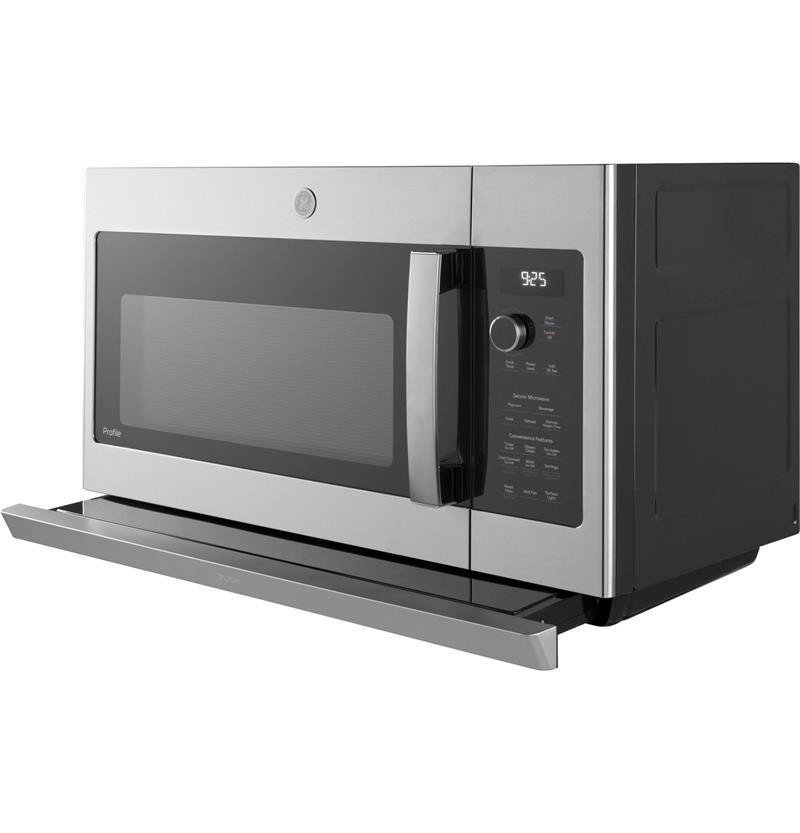

• Extendable Slide-Out Vent : Extend the built-in vent for additional cooktop ventilation that doubles the capture rate for smoke and odors.
• Sensor Cooking Controls : Microwave sensor cooking automatically adjusts time and heating power to optimize results.
• 2.2 cu. ft. Capacity : This large capacity microwave gives you all the space you need to cook and reheat your favorites.
• 400 CFM Range Hood : Quickly remove smoke, steam and odors with a powerful ventilation hood that has four speeds.
• Chef Connect : Sync your clocks and range elements with the smart microwave's surface light and vent.
• Steam Clean : A steam cleaning mode makes it easy to clean spills and stuck-on food in no time.
• LED Cooktop Lighting : Illuminate your cooking surface with bright over-the-stove lighting that saves energy and reduces maintenance costs.
• Capture Rate : Thanks to the extended vent, the microwave capture rate is double the rate of typical over-the-range models.
