Specifications

• ACCESSORIES
  • Recirculating Charcoal Filter Kit : WB06X10807 (included)
  • Optional Kits : 15" Bump Out Kit - JX15BUMPBB
• APPEARANCE
  • Door Swing : Hinges on Left
  • Installation : Easy Mount
  • Door Color : Black Stainless
  • Case Color : Gray
  • Handle Color : Fingerprint Resistant Black Stainless
  • Handle : Integrated
  • Oven Door Features : Oven Window
  • Color Appearance : Fingerprint Resistant Black Stainless
• CAPACITY
  • Vent CFM : 400
  • Total Capacity (cubic feet) : 2.1 cu ft
• ECONOMICAL / QUIET
  • Non-Vented : Convertible to Recirculating (Filter Included)
  • Venting Type : Externally Vented (Factory Set)
• FEATURES
  • Electronic Digital Display with Clock : Scrolling (LED with icons)
  • Control Features : Add 30 Seconds, Cancel/Off, Chef Connect, Cook Time, Express Cook, Lock Controls, Power Level, Set Clock, Settings, Start/Pause, Surface Light, Timer On/Off, Turntable On/Off, Vent Fan
  • Display Screen Size (Diagonal Length) : 3.13

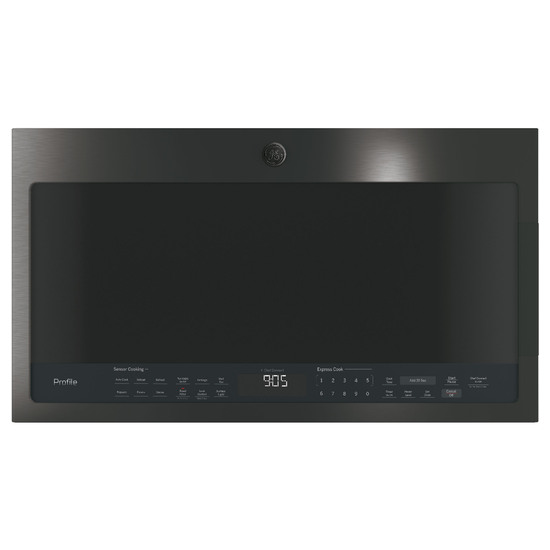

  • Product Type : Over-the-range Microwave
  • Display Type : LED
  • Turntable On / Off : Yes
  • Control Type : LED
  • Sound Volume Control : Yes
  • Exhaust Fan : 4-Speed Including Boost, 400-CFM
  • Turntable : Glass
  • Microwave Sensor Cooking Controls : Auto Cook, Defrost, Popcorn, Potato, Reheat, Steam Cook
  • Microwave Watts (IEC-705) : 1000 W
  • Power Levels : 10
  • Cooktop Lighting : Halogen, High/Low/Off
  • Cooking Modes : Microwave
  • Style : Over-The-Range
  • Turntable Size : 14.2 in
  • Cooking Technology : Microwave
  • Range Communication : Connected
  • Interior Oven Light : Halogen
• FILTER
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Convection : No
  • App Filter - Venting Type : External
  • App Filter - Cooking Technology : Microwave Only
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Product Type : Microwave Over-the-Range
  • App Filter - Wattage : 1000 to 1099
  • App Filter - Capacity : Microwave Large (1.9 cu. ft. and above)
  • App Filter - Voltage : 120V
• POWER / RATINGS
  • Electrical Input - 120V Amperage : 14.5
  • Input Volts/Hertz : 120/60
  • Electrical Input - 120V Watts : 1700
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Exterior Height (Rear) : 16.5625 in
  • Exterior Height (Front) : 15.6875 in
  • Approximate Shipping Weight : 65 lb
  • Cabinet Width : 30 in
  • Overall Width : 29.875 in
  • Cavity (W x H x D) : 21-15/16 x 11-5/8 x 14-9/16
  • Net Weight : 58 lb
  • Overall Depth : 15.5625 in
  • Overall Height : 16.5625 in

Description

Spacious 2.1 Cu. Ft. capacity accommodates larger dishes and cookware.

Advanced sensor technology adjusts cooking time and power for precise results.

Powerful ventilation system effectively removes smoke, steam, and odors.

Intuitive control panel ensures easy operation.

Versatile cooking settings provide flexibility for a variety of meals.

Sleek and modern design enhances the style of any kitchen.

Features

• 2.1 cu. ft. capacity : 1000 Watts (IEC-705 test procedure)
• Chef Connect : Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range elements with the microwave's surface light and vent
• Bottom control with integrated handle : Enjoy a sleek appearance that makes cleaning easy
• Four-speed, 400CFM venting system : Removes smoke, steam and odors
• 10 power levels : Multiple power levels offer cooking flexibility
• "Add 30 seconds" button : Add 30 seconds of microwave cooking time
• Turntable On/Off : Controls turntable operation
• Sensor cooking controls : Automatically adjusts time and power for delicious cooking results
