Specifications

• ACCESSORIES
  • Optional Accessories : WB48X21543 Roller Rack
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • LP Conversion Kit : Included
  • Trim Kit : JXFILLR1SS, Optional
  • Center Grate : Included
• APPEARANCE
  • Cooktop Burner Grate Color : Matte Black
  • Handle : Designer Style
  • Installation : Flush Appearance, Free-standing cut-out
  • Control Knobs : Stainless Steel
  • Color Appearance : Fingerprint Resistant Stainless
  • Handle Color : Stainless Steel
  • Oven Door Features : Big View Oven Window
• CAPACITY
  • Total Capacity (cubic feet) : 6.7 cu ft
  • Capacity (Cu. Ft.) : 2.4 Upper / 4.3 Lower
• FEATURES
  • Cooking System : True European Convection
  • Ignition System : Electronic
  • Oven Rack Features : 1 Self-Clean Oven Rack (Upper), 2 Self-Clean Oven Racks (Lower)
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Cleaning Type : Self-Clean with Steam Clean Option
  • Griddle : Reversible Integrated Grill/Griddle (Included)
  • Burner - Right Rear : 9,500 BTU
  • Oven Interior : 1 Incandescent Light, Black
  • Connected Capabilities : Amazon Alexa, DiGiorno, Fresco, IFTTT, Innit, Sonos, The Google Assistant
  • WiFi Enabled Features : Baked Goods (Both Ovens), Convection Roast, Enhanced Temp Probe, Frozen Pizza Multi Rack - Lower Oven, Frozen Pizza Single Rack - Lower Oven (No Preheat), Frozen Snacks Multi Rack - Lower Oven, Frozen Snacks Single Rack- Lower Oven (No Preheat), No Preheat Air Fry (Lower Oven), Remote Control, Remote Notifications, Scan To Cook (Oven)
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off, Auto Recipe Conversion, Certified Sabbath Mode, Control Lock Capability, Delay Bake Option, Electronic Clock & Kitchen Timer, Hi / Low Broil, In-Oven Broiling, Temperature Probe
  • Product Type : Slide-In Double Oven
  • Cooktop Type : Continuous Grates with Griddle
  • Cooktop Burner Grate Material : Heavy Cast Iron
  • Fuel Type : Natural Gas (factory set)
  • Dual Ring Burners : Yes
  • WiFi Connect : Built-In
  • Cooktop Burner Grate Features : Continuous Grates
  • Sabbath Mode : Yes
  • Configuration : Double Oven Range
  • Oven Cooking Modes : Bake, Broil (Lower Oven), Convection Bake (Lower Oven), Proof (Lower Oven), Warming (Both Ovens)
  • Burner - Center : 9,500 BTU Dual Oval
  • Burner - Right Front : 15,000 BTU
  • Oven Rack Positions (Single or Upper/Lower) : 6
  • Self-Clean Oven Door Lock : Automatic
  • Cooking Technology : Traditional Upper; Convection Lower
  • OU Certified : No
  • Cooktop Burner Type : Sealed
  • Burner - Left Front : 21,000 BTU Tri-ring Burner
  • Control Type : Electronic Touch
  • Cooktop Surface : Deep Recessed, Edge-to-Edge, Stainless Steel
• FILTER
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Product Type : Ranges Slide-In Double Oven
  • App Filter - Cooking Technology : Convection
  • App Filter - Fuel Type : Gas
  • App Filter - Tri-Ring Burner : Yes
  • App Filter - Convection : Yes
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Cleaning Type : Steam and Self-Clean
  • App Filter - Cooktop Type : Continuous Grates with Griddle
  • App Filter - WiFi Connect : Built-In
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 21.0 (1) 15.0; (2) 9.5; (1)5.0
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 7.0 / 120V Upper; 14.0 / 16.5 Lower
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 7.0 / 120V - Upper; 13.5 / 13.5 - Lower
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Depth Without Handle : 26.875 in
  • Net Weight : 271 lb
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Overall Width : 30 in
  • Overall Height : 36.5 in
  • Height to Top of Rear Vent Trim : 37.625 in
  • Overall Depth : 29.875 in
  • Depth with Door Open : 43.875 in
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 291 lb
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower

Description

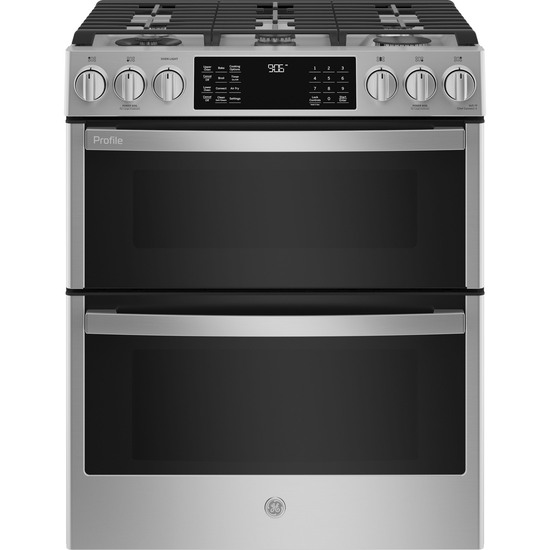

30'' smart slide-in gas range with a sleek, front-control design

Dual ovens for flexible cooking and ample space for multiple dishes

Convection cooking system for even heat distribution and optimal results

Fingerprint-resistant finish for a clean, polished appearance

Smart connectivity for easy control and monitoring via smartphone

Modern design that seamlessly fits into your kitchen layout

High-performance cooking with versatile and convenient features

Features

• No Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)
• Built-In WiFi, Powered by SmartHQ App : Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details
• GE Profile Connect + : Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades
• Fit Guarantee : This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details
• Edge-to-edge cooktop : Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
• Tri-ring burner : A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one
• Reversible grill and griddle : This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility
• Dual purpose center burner : This flexible gas cooktop burner lets you choose between round and oval burner shapes
• Backlit glass touch controls : Backlit touch controls give this oven a high-tech look with a display that disappears when not in use and reappears when touched
• Power boil burner : This 15,000-BTU power boil element produces intense heat to boil water fast
• Synchronized clocks and lights : Synchronize your oven and GE Appliances over-the-range microwave so that clocks are always matching and lights automatically come on when a burner is activated with Chef Connect
• True Convection : This oven features True Convection, an advanced convection system that uses a third heating element and fan for the highest level of heat and air circulation
• Large capacity double oven : Cook an entire meal at once with a 6.7 cubic foot total capacity double oven which provides enough room for multiple dishes
• Never-scrub oven racks : These durable oven racks can be left in the oven during the self-clean cycle so you never have to scrub
• Precision temperature probe : An innovative temperature probe that helps you achieve the perfect level of doneness for oven favorites
